Best wiring route through 2015 JKU firewall?

Thread Tools

Old 10-10-2014, 05:08 PM
  #1
JK Newbie
Thread Starter

nhfd21348's Avatar

Join Date: Aug 2014
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
Default Best wiring route through 2015 JKU firewall?
Guys I am just wondering if anyone knows the best way to run wires through the firewall in my 2015 JKU it is for 3 different accesory lights.
Thank you,
Thomas
nhfd21348 is offline
Reply Like
Old 10-10-2014, 05:24 PM
  #2
ade
JK Enthusiast

ade's Avatar

Join Date: Apr 2014
Location: Alameda, CA
Posts: 479
Likes: 0
Received 0 Likes on 0 Posts
Default
Originally Posted by nhfd21348
Guys I am just wondering if anyone knows the best way to run wires through the firewall in my 2015 JKU it is for 3 different accesory lights.
Thank you,
Thomas
There is a grommet just below the brake master cylinder on the right side
ade is offline
Reply Like
Old 10-10-2014, 07:19 PM
  #3
JK Junkie

Jiblet's Avatar

Join Date: Dec 2008
Location: Boston, MA
Posts: 2,191
Likes: 0
Received 5 Likes on 4 Posts
Default
Originally Posted by nhfd21348
Guys I am just wondering if anyone knows the best way to run wires through the firewall in my 2015 JKU it is for 3 different accesory lights. Thank you, Thomas

On earlier models, with the door open, the side edge of the dash can pop off. There are pass-through so right in there.


See the photo in post #5 by Mark D.

https://www.jk-forum.com/forums/jk-e...g-path-298768/
Last edited by Jiblet; 10-10-2014 at 07:21 PM.
Jiblet is offline
Reply Like
Old 10-11-2014, 07:18 AM
  #4
JK Freak

darkknight1999's Avatar

Join Date: Mar 2008
Location: Hopedale, MA
Posts: 560
Likes: 0
Received 1 Like on 1 Post
Default
Originally Posted by ade
There is a grommet just below the brake master cylinder on the right side
This is a good spot depending how many wires your running. But you can fit a fair amount through there.
darkknight1999 is offline
Reply Like
Old 10-11-2014, 09:25 AM
  #5
JK Newbie
Thread Starter

nhfd21348's Avatar

Join Date: Aug 2014
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
Default
Originally Posted by darkknight1999

This is a good spot depending how many wires your running. But you can fit a fair amount through there.
Does anyone have a picture of this said grommet I can not see it.
nhfd21348 is offline
Reply Like
Old 10-11-2014, 09:39 AM
  #6
ade
JK Enthusiast

ade's Avatar

Join Date: Apr 2014
Location: Alameda, CA
Posts: 479
Likes: 0
Received 0 Likes on 0 Posts
Default
Originally Posted by nhfd21348

Does anyone have a picture of this said grommet I can not see it.
Will take a picture of it and post. Or if you go online and look at the sPOD install instructions they show it for their install
ade is offline
Reply Like
Old 10-11-2014, 10:02 AM
  #7
JK Newbie
Thread Starter

nhfd21348's Avatar

Join Date: Aug 2014
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
Default
Originally Posted by ade

Will take a picture of it and post. Or if you go online and look at the sPOD install instructions they show it for their install

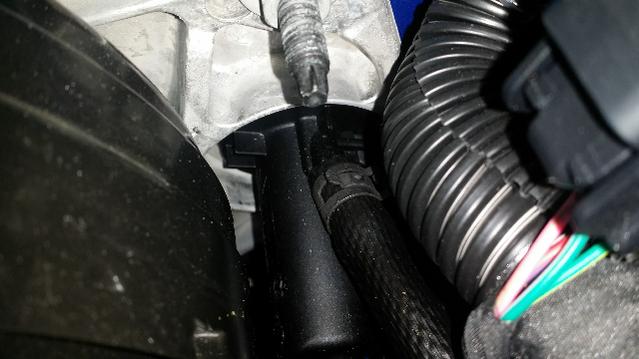

Is this where the grommet should be because on mine it a big plastic clip.


Click image for larger version Name: ForumRunner_20141011_140205.jpg Views: 2750 Size: 33.0 KB ID: 579372
nhfd21348 is offline
Reply Like

Trending Topics

Old 10-11-2014, 12:05 PM
  #8
JK Freak

darkknight1999's Avatar

Join Date: Mar 2008
Location: Hopedale, MA
Posts: 560
Likes: 0
Received 1 Like on 1 Post
Default

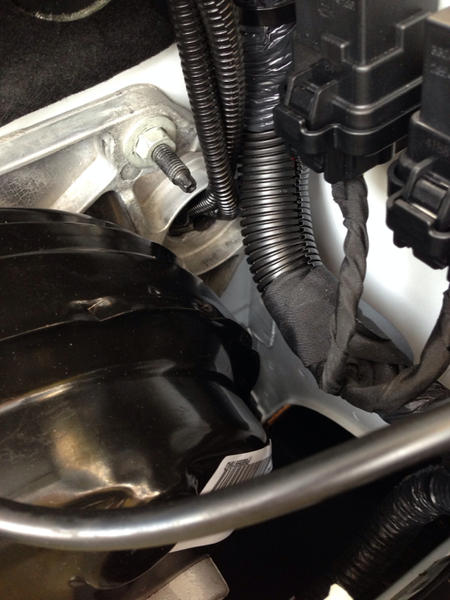

Here's one more:

Sent from my NSA monitoring device... Using the JK-Forum app
Attached Thumbnails Click image for larger version Name: image-1266048206.jpg Views: 2116 Size: 43.0 KB ID: 579379
darkknight1999 is offline
Reply Like
Old 10-11-2014, 05:25 PM
  #9
ade
JK Enthusiast

ade's Avatar

Join Date: Apr 2014
Location: Alameda, CA
Posts: 479
Likes: 0
Received 0 Likes on 0 Posts
Default
Originally Posted by nhfd21348
Is this where the grommet should be because on mine it a big plastic clip.


Attachment 579372

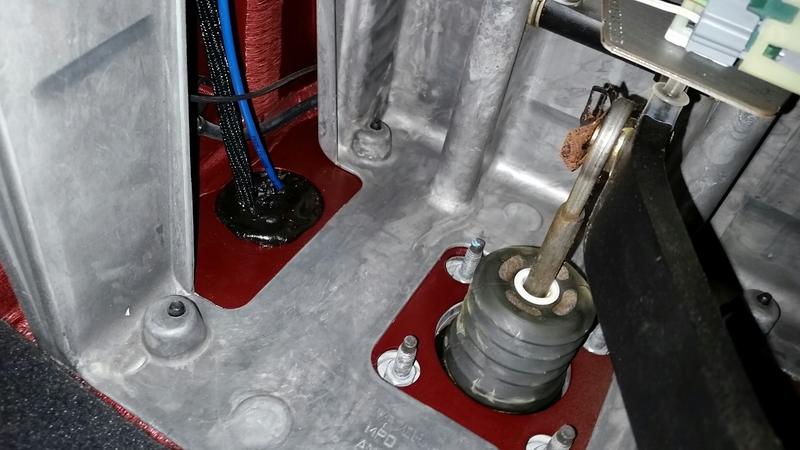

This is a picture from inside the cab next to the brake pedal. I have my sPod cable and onboard air gauge tube running through it.

Click image for larger version Name: 20141011_124436_resized.jpg Views: 2446 Size: 54.2 KB ID: 579434
ade is offline
Reply Like
Old 10-11-2014, 08:56 PM
  #10
JK Newbie
Thread Starter

nhfd21348's Avatar

Join Date: Aug 2014
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
Default
Originally Posted by ade

This is a picture from inside the cab next to the brake pedal. I have my sPod cable and onboard air gauge tube running through it.
/>
Is yours auto or manual?
nhfd21348 is offline
