Toggle Switch For Multiple Interior Dome Lights
I've been searching around and couldn't seem to find much information on this topic - so I thought I would ask.
Essentially, what I am wanting to do is have the standard stock dome lights (dome lamp and cargo lamp - which I've upgraded with a new brighter led light) and two additional dome lights (which will have greed led lights) to be connected to toggle switches which will be installed on the sound bar. What I am trying to do is allow for either regular lighting (via the main stock dome light) or the green lighting, with the switches allowing me to turn on/off as I desire. How could I go about tieing into the existing wiring for the dome light to make this happen?
Would I simply install a switch (for the existing dome light) connecting to the BROWN wire going to the dome lamp and then tie-in to the the wire before the switch for the existing dome light for the wiring for the new green dome lights - which would then connect to the BLACK wire leaving the existing dome lamp (or would it need to tie-in to the YELLOW/LT BLUE wire leaving the cargo lamp?
I think I might be in a little over my head here and don't want to order any parts until I have a firm understanding of what this is going to involve.
Essentially, what I am wanting to do is have the standard stock dome lights (dome lamp and cargo lamp - which I've upgraded with a new brighter led light) and two additional dome lights (which will have greed led lights) to be connected to toggle switches which will be installed on the sound bar. What I am trying to do is allow for either regular lighting (via the main stock dome light) or the green lighting, with the switches allowing me to turn on/off as I desire. How could I go about tieing into the existing wiring for the dome light to make this happen?
Would I simply install a switch (for the existing dome light) connecting to the BROWN wire going to the dome lamp and then tie-in to the the wire before the switch for the existing dome light for the wiring for the new green dome lights - which would then connect to the BLACK wire leaving the existing dome lamp (or would it need to tie-in to the YELLOW/LT BLUE wire leaving the cargo lamp?
I think I might be in a little over my head here and don't want to order any parts until I have a firm understanding of what this is going to involve.
#2
JK Newbie
Thread Starter
Join Date: Apr 2015
Location: Venezuela
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
To clear up what I am talking about, I've drawn a diagram. The green and cyan bits are new. The rest is as is.
Is this the way I should wire the lights? Is there a better way?
Is this the way I should wire the lights? Is there a better way?
Last edited by Jaan Henriksen; 04-24-2015 at 12:24 PM.
#3
JK Junkie
Welcome, Jaan!
You could do what you want pretty easily with a 3 position switch. The factory dome feed would connect to the middle pin. The factory domes would then connect to the top or bottom pin. The new domes feed would then connect to the third pin. You could then choose which ones you want to come on by flicking the switch, or have neither come on by centering the switch. I believe the yellow/white wire feeds the OEM domes, so that would be the one to connect to. But make sure you test it first as I haven't done this.
Something like this...
The way you drew it, the stock cargo dome would still come on with the new domes.
You could do what you want pretty easily with a 3 position switch. The factory dome feed would connect to the middle pin. The factory domes would then connect to the top or bottom pin. The new domes feed would then connect to the third pin. You could then choose which ones you want to come on by flicking the switch, or have neither come on by centering the switch. I believe the yellow/white wire feeds the OEM domes, so that would be the one to connect to. But make sure you test it first as I haven't done this.
Something like this...
The way you drew it, the stock cargo dome would still come on with the new domes.
Last edited by 14Sport; 04-24-2015 at 01:45 PM.
#4
JK Newbie
Thread Starter
Join Date: Apr 2015
Location: Venezuela
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the help! I realize this is a fairly elementary problem and I appreciate your suggestion - I really like the idea of the 3 way switch.
To understand what you are saying about the cargo lamp still coming on....I need to put the switch before the split to the two existing lights? I was thinking that the split in wiring was to accommodate the push activation switch feature for the rear cargo light. Is that not what is happening?
I was also hoping that I could tie into the wiring near the existing front dome so that I could reduce the amount of wiring I would need to run. I guess this will not be an option.

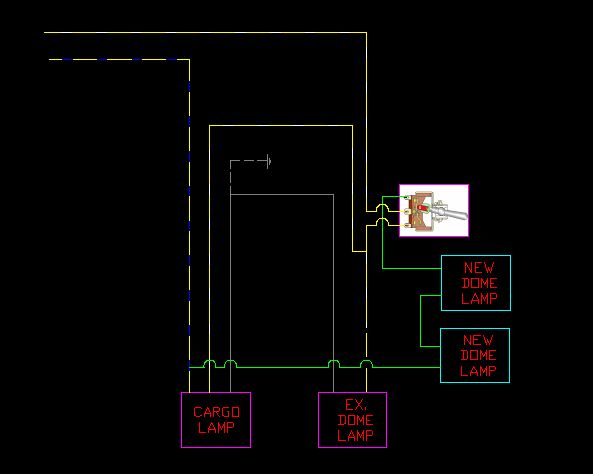

Below is another diagram utilizing the switch you suggested. Does it appear that I am using it correctly?
