Can anyone explain what's happening when I'm trying to get an swr reading?
I have a cobra 29, firestik II, 18' coax.
When trying to get an SWR reading the built in SWR meter goes to about 2.0 for a split second then drops all the way back down. Sometimes it goes all the way to the right into the "cal" section of the meter and then drops back down. This happens while I'm holding PTT.
I thought I had a good ground, sanded the antenna mount down and such. Have read a ground wire helps. If this is the issue can someone explain where to connect the ground wire at? I don't need an SWR of 1 or extremely long distance communication, just enough for the trails.
I have a cobra 29, firestik II, 18' coax.
When trying to get an SWR reading the built in SWR meter goes to about 2.0 for a split second then drops all the way back down. Sometimes it goes all the way to the right into the "cal" section of the meter and then drops back down. This happens while I'm holding PTT.
I thought I had a good ground, sanded the antenna mount down and such. Have read a ground wire helps. If this is the issue can someone explain where to connect the ground wire at? I don't need an SWR of 1 or extremely long distance communication, just enough for the trails.
#2
Where is your antenna mounted? My antenna is mounted on the third break light so I have my ground ran to the frame and attached to the break line mount. Not sure why your reading goes up then drops down? Make sure all your connections are tight, and there is no coil in your coax also.
#3
JK Super Freak
Thread Starter
Join Date: Aug 2014
Location: Nokesville, Va
Posts: 1,813
Likes: 0
Received 0 Likes
on
0 Posts
Where is your antenna mounted? My antenna is mounted on the third break light so I have my ground ran to the frame and attached to the break line mount. Not sure why your reading goes up then drops down? Make sure all your connections are tight, and there is no coil in your coax also.
#4
JK Super Freak
Thread Starter
Join Date: Aug 2014
Location: Nokesville, Va
Posts: 1,813
Likes: 0
Received 0 Likes
on
0 Posts

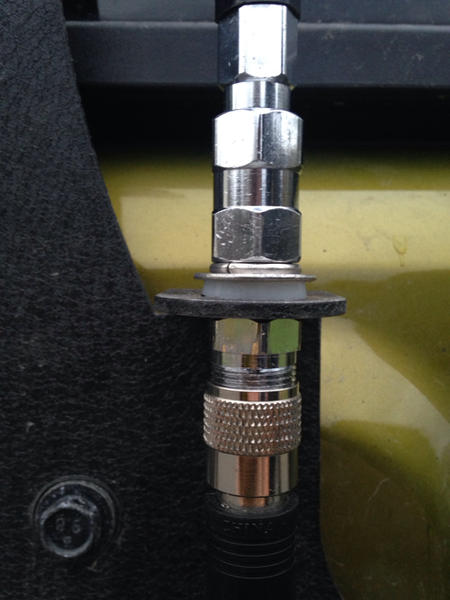

So my initial set up was this. I get my SWR at 2 having the plastic washer underneath. Which I read was wrong I think. I also cannot get the CAL to fill like the instructions said with the knob. It only fills up to 3.5ish but the SWR meter works this way
Last edited by JK505; 11-05-2014 at 12:25 PM.
#5
JK Super Freak
Thread Starter
Join Date: Aug 2014
Location: Nokesville, Va
Posts: 1,813
Likes: 0
Received 0 Likes
on
0 Posts

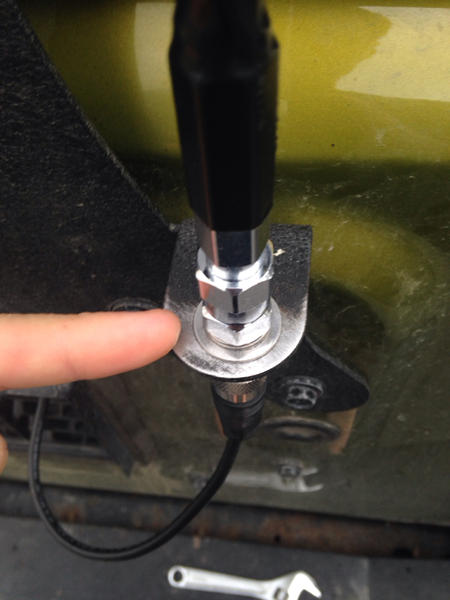

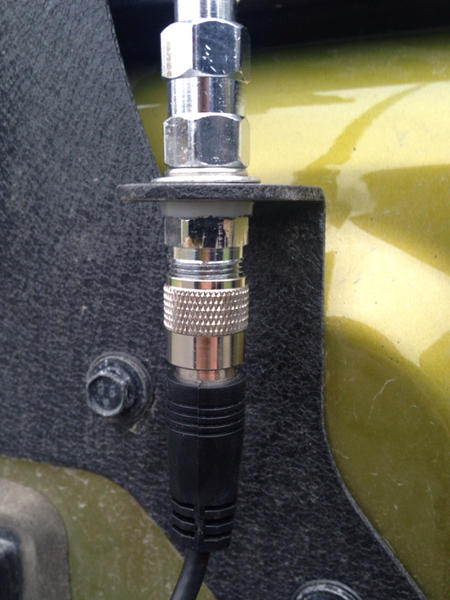

Then I moved the plastic washer (insulator) between the sanded surface here and the metal washer that you see in this picture and that's when the SWR was acting funny. But with the plastic washer on top I can get the CAL full but the SWR acts funny. So which way is correct, insulating washer on top or on bottom?
Coming from an electrical background, it would seem with the insulator on top, the antenna would not my grounded at all. The coax cable wouldn't be grounded either because of the insulation in the cable. With the insulator on bottom, the antenna has metal to metal contact for a ground, through the mount and the tail gate. Right?
Coming from an electrical background, it would seem with the insulator on top, the antenna would not my grounded at all. The coax cable wouldn't be grounded either because of the insulation in the cable. With the insulator on bottom, the antenna has metal to metal contact for a ground, through the mount and the tail gate. Right?
Last edited by JK505; 11-05-2014 at 12:28 PM.
#6
The plastic washer goes on the top, dont trust the meter in the radio, find someone that has an external meter you can use to get the correct reading, make sure that you are not parked under any trees or power lines when you take the reading and also have all doors closed on the jeep. Then go from there. I cant see exactly how the washer is placed in the second picture, but it does go on top, and the plastic washer should have an indentation that sits down into the mount.
#7
JK Super Freak
Thread Starter
Join Date: Aug 2014
Location: Nokesville, Va
Posts: 1,813
Likes: 0
Received 0 Likes
on
0 Posts
The plastic washer goes on the top, dont trust the meter in the radio, find someone that has an external meter you can use to get the correct reading, make sure that you are not parked under any trees or power lines when you take the reading and also have all doors closed on the jeep. Then go from there. I cant see exactly how the washer is placed in the second picture, but it does go on top, and the plastic washer should have an indentation that sits down into the mount.
Trending Topics
#8
JK Jedi
Don't trust the CBs internal SWR readings. Use an external SWR meter.
The second pic with the plastic washer on top looks correct. There shouldn't be any metal contact with the antenna post and the mount.
The second pic with the plastic washer on top looks correct. There shouldn't be any metal contact with the antenna post and the mount.
#9
JK Super Freak
Thread Starter
Join Date: Aug 2014
Location: Nokesville, Va
Posts: 1,813
Likes: 0
Received 0 Likes
on
0 Posts
I ran the built in tests when I had it the wrong way, and it said everything was good but the antenna flashed "fail" then "pass" and then held a pass reading. Now it reads everything is a "pass" with the right way
Last edited by JK505; 11-05-2014 at 04:12 PM.
