Keyless Entry - Need help connecting door actuators to Karr Security alarm please
Keyless Entry - Need help connecting door aftermarket actuators to existing alarm.
2007 Jeep Wrangler Unlimited 4-door without power door locks
-Existing Karr Security High Performance Series 3
-NEW DEI 451M relay
-NEW 5 door aftermarket actuators
Connections from 451M relay (hopefully correct)
That leaves a 3 wire plug from 451M relay to connect to alarm. Alarm does not have anywhere to plug the 3 wire plug into. Colors from 3 wire plug are Blue, Green and Red.
What color wires do the 3 wire plug go to using the Karr Security Alarm? I believe the red goes to any 12V power, but not sure about the Blue and Green wires.

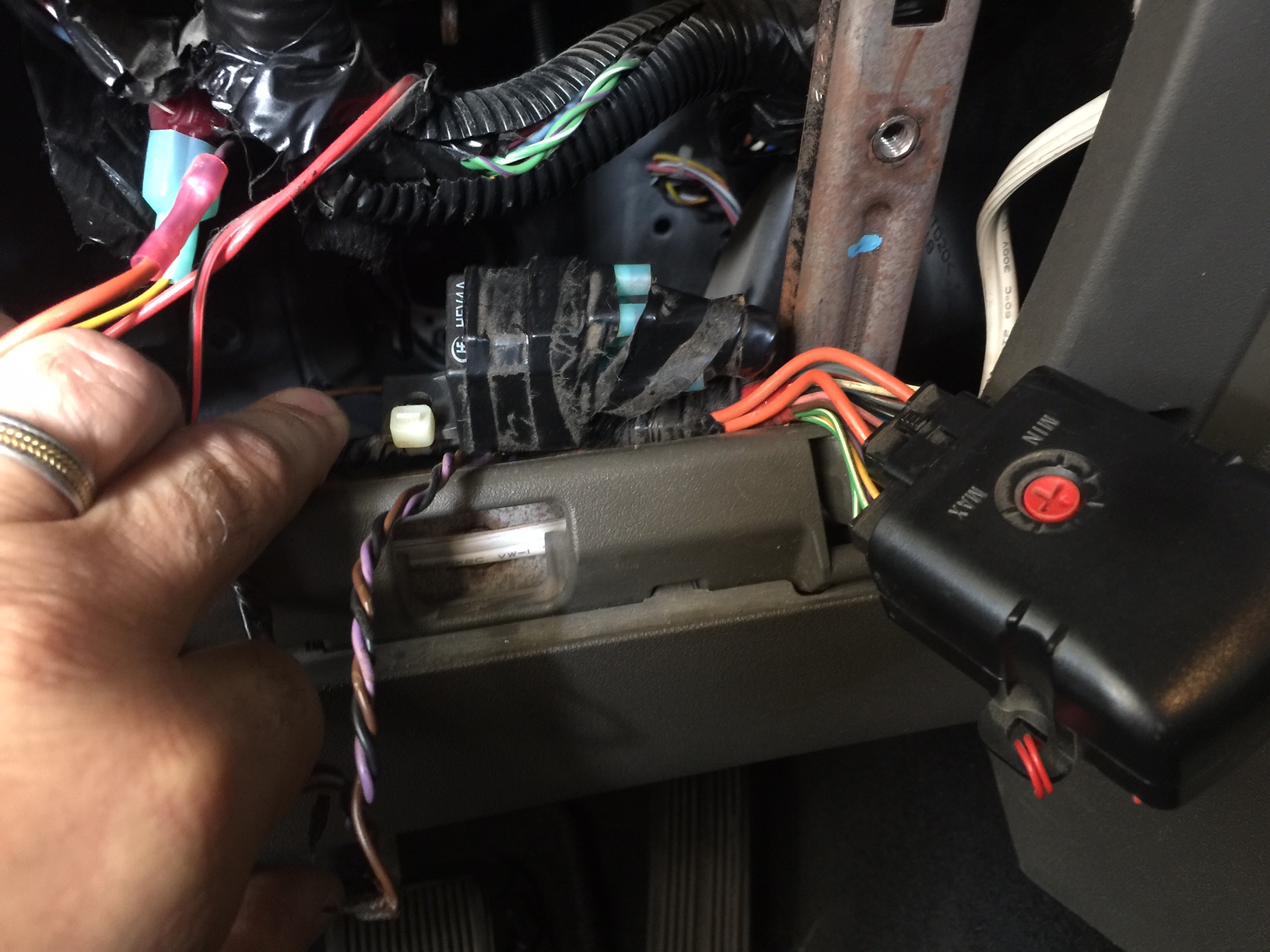

Each Jeep door already has a purple wire and a Black/White wire going inside. Brown wire coming from alarm goes to Purple Jeep wire in door. Black/White Jeep door wire goes into jeep harness.
Thanks so much.
2007 Jeep Wrangler Unlimited 4-door without power door locks
-Existing Karr Security High Performance Series 3
-NEW DEI 451M relay
-NEW 5 door aftermarket actuators
Connections from 451M relay (hopefully correct)
- Purple/Black wire to 12V power
- Green/Black wire to actuator green wire
- Blue/Black wire to actuator blue wire
- White/Black to ground
- Brown/Black to ground
That leaves a 3 wire plug from 451M relay to connect to alarm. Alarm does not have anywhere to plug the 3 wire plug into. Colors from 3 wire plug are Blue, Green and Red.
What color wires do the 3 wire plug go to using the Karr Security Alarm? I believe the red goes to any 12V power, but not sure about the Blue and Green wires.
Each Jeep door already has a purple wire and a Black/White wire going inside. Brown wire coming from alarm goes to Purple Jeep wire in door. Black/White Jeep door wire goes into jeep harness.
Thanks so much.
