light wiring?

Thread Tools

Old Mar 22, 2011 | 05:48 PM
  #1
rterese12's Avatar
Thread Starter
JK Enthusiast

Joined: Mar 2011
Posts: 310
Likes: 0
From: Metairie, la
Default light wiring?

So here's the question I put a smittybilt xrc stinger bumper on and lost my fog lights being that there is no slots for them. When I was was mounting my new kc apollo lights I thought well there are wires there for lights and a switch why not just splice into there with the new lights so when i was done they came on and i turned them off thinking everything was fine. Then I got in to leave where i was and turned them on and they would not stay on... just come on and turn off.

So could this be because the original fog light wires aren't letting enough watts come through or bad connections on my part. Please help all you electricians out there.

Sorry for the long explanation and thanks for any help.
Reply
Old Mar 22, 2011 | 05:56 PM
  #2
jeeper2008's Avatar
JK Newbie

Joined: Apr 2009
Posts: 80
Likes: 0
From: York, Pa
Default

From what I read any aftermarket lights need a wiring harness of Their own because they draw to much power Md the computer will then shut them off on factory wiring. I just installed my xrc today with mopar replacement oval foglights.

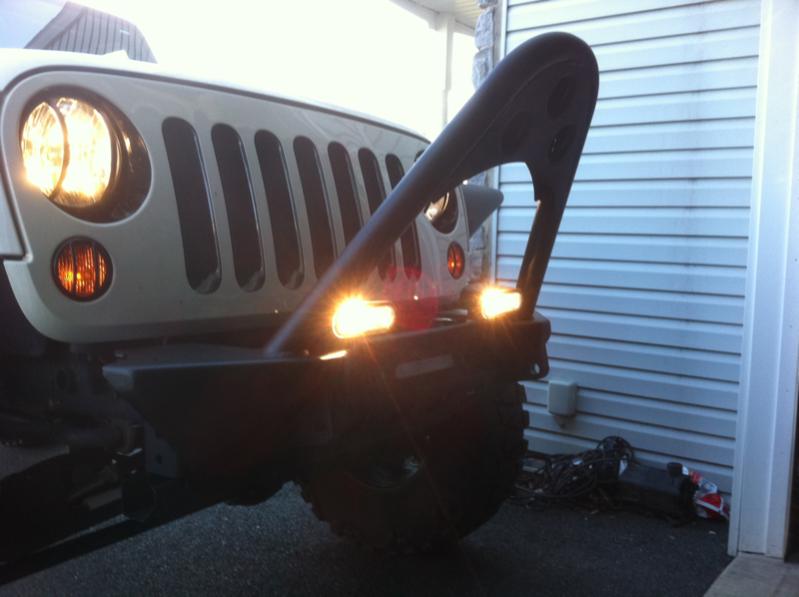

Attached Thumbnails Click image for larger version

Name:	image-3763058547.jpg
Views:	120
Size:	42.6 KB
ID:	140842   Click image for larger version

Name:	image-301825074.jpg
Views:	111
Size:	36.2 KB
ID:	140843
Reply
Old Mar 22, 2011 | 06:00 PM
  #3
md41969's Avatar
JK Enthusiast

Joined: Jun 2008
Posts: 180
Likes: 0
From: Vancouver, WA
Default

Probably too much wattage for the stock switch. You need to wire the lights to the battery and you can use the factory lights to trip the switch. I have a thread saved I'd link if I weren't in my phone that shows the diagram. Search the electrical section and you might find it. It's pretty easy to do.
Reply
Old Mar 22, 2011 | 06:15 PM
  #4
rterese12's Avatar
Thread Starter
JK Enthusiast

Joined: Mar 2011
Posts: 310
Likes: 0
From: Metairie, la
Default

Originally Posted by md41969
Probably too much wattage for the stock switch. You need to wire the lights to the battery and you can use the factory lights to trip the switch. I have a thread saved I'd link if I weren't in my phone that shows the diagram. Search the electrical section and you might find it. It's pretty easy to do.

sounds good i have switch room I was just trying to save time and giving myself an extra switch on my panel but I guess I'll have to do it the long way thanks for the help look for that post.
Reply
Old Mar 22, 2011 | 07:17 PM
  #5
Immcpat's Avatar
JK Newbie

Joined: Dec 2010
Posts: 86
Likes: 0
From: Long Island
Default

Crazy idea and I would look more into it if you were me. But if you get a .24 ohm resistor and put it in series with a line from a rely you can use the fog light switch to turn those lights on. You use the resistor to replicate a light bulb for the resistance so you don't have an open circuit. I'm a civil engineer so defiantly look into it more.
Reply
Old Mar 22, 2011 | 07:58 PM
  #6
Immcpat's Avatar
JK Newbie

Joined: Dec 2010
Posts: 86
Likes: 0
From: Long Island
Default

Well the circuit with the resister would be separated from the circuit that works the new lights. they would only be linked by the rely
Reply
Old Mar 23, 2011 | 04:02 AM
  #7
JK-Ford's Avatar
JK Junkie

Joined: Nov 2008
Posts: 3,297
Likes: 8
From: Cabot, Ar.
Default

Originally Posted by rterese12
sounds good i have switch room I was just trying to save time and giving myself an extra switch on my panel but I guess I'll have to do it the long way thanks for the help look for that post.
Originally Posted by Immcpat
Crazy idea and I would look more into it if you were me. But if you get a .24 ohm resistor and put it in series with a line from a rely you can use the fog light switch to turn those lights on. You use the resistor to replicate a light bulb for the resistance so you don't have an open circuit. I'm a civil engineer so defiantly look into it more.
The Jeep computer monitors the current to the lighting. It protects the circuit just like a fuse. All you need to do is install the aftermarket harness. And just simply use the OEM fog light circuit to trip the relay. The computer doesn't realy care if you draw to little current ( fuse ). Then you can always go one step further and add a manual switch to overide the fog switch when you switch on your high beams.
Reply
Old Mar 23, 2011 | 09:33 AM
  #8
md41969's Avatar
JK Enthusiast

Joined: Jun 2008
Posts: 180
Likes: 0
From: Vancouver, WA
Default

https://www.jk-forum.com/forums/show...ock-fog-wiring

This is the thread with the diagram on it that I used. Also helped a friend do the same using the same method. I'm pretty sure the white/red is the switch wire you tap into in order to use the factory switch, the rest of the wires run to the battery and from the relay.
Reply
Old Mar 23, 2011 | 10:37 AM
  #9
rterese12's Avatar
Thread Starter
JK Enthusiast

Joined: Mar 2011
Posts: 310
Likes: 0
From: Metairie, la
Default

Jk- ford that sounds like a great idea if had the slightest electrical skill I can pretty much barely get by with the directions lol
Reply
Old Mar 23, 2011 | 02:47 PM
  #10
JK-Ford's Avatar
JK Junkie

Joined: Nov 2008
Posts: 3,297
Likes: 8
From: Cabot, Ar.
Default

Originally Posted by rterese12
Jk- ford that sounds like a great idea if had the slightest electrical skill I can pretty much barely get by with the directions lol
Sorry, I'm not good at posting drawings. But I can give you directions. Just follow them 1 line at a time.
Install the power wires just like I have described. But connect to power LAST.
Step 1
Install the power circuit of the new harness.
Red #10 awg from battery to relay terminal #30 ( with inline fuse holder). Red #14 awg wire from relay terminal #87 to light "A". Black #14 awg wire from light "A" to ground. Red #14 awg wire from relay terminal #87 also to light "B". Black #14 awg wire from light "B" to ground.
Step 2
Install control circuit.
This is for the "Auto / Manual" control. You will need to purchase a 3 position switch ( on / off / on ).
Red #18 awg wire from M8 fuse holder to terminal #1 ( bottom ) on the switch (You will also need an inline fuse holder for this conductor). Red #18 awg wire from terminal #85 of relay to terminal #2 ( middle ) of switch. Red #18 awg from OEM fog light wires ( 12v positive wire ) to terminal #3 ( top ) of switch. Black #18 awg wire from terminal #86 of relay to ground.
Function
Switch up ( automatic ) - Foglights function based on OEM design.
Switch middle - Foglights always off
Switch down - Foglights function anytime the key is on.
Just ask if you need more help.
