$2 Colder A/C mod
Here in Texas it gets hot and my Air conditioner was cutting it. My A/C worked OK but, not cold enough. You may not need to do this mod if you roll topless/doorless or live up north.
I just wanted to share my results with you. Now, the temperature coming out of my vents is about 13 degrees colder and sits right around 42 degrees. Feel free to post up and share your results or input.
In short, you will be splicing in a resister across two wires that go to the evaporator temperature sensor.
I ended up using a 20K ¼-watt resistor that I picked up at a local electronics supply. I tried different values to achieve the coldest temperature without it freezing up.
I started with a potentiometer or pot and turned the dial until I achieved the desired results. You don’t need the pot, it was just easier for me since I didn’t have a base value to work off of. You could even install the pot on the dash to adjust on the fly. I am still not sure if I would need/want to do that though. Once I achieved the desired result, I just measured the resistance across the terminals and went shopping for my resistor.
The thermistor/sensor from the factory could vary so the resistor value needed will also slightly vary. You may have to go with a lower or higher value. The mod is easy enough to try with different values. I would try the 20K to start with since my choice was conservative.
The pack of 10 was only $2.
Here we go:
Remove the lower trim piece below the dash by releasing the plastic retainers. I used a plastic trim tool to avoid any scratches
Remove the two screws (referenced as #2 )holding the instrument cluster bezel and pry it of once done.
Remove the 4 screws that secure the instrument cluster in place
We will be working with the black and brown connectors

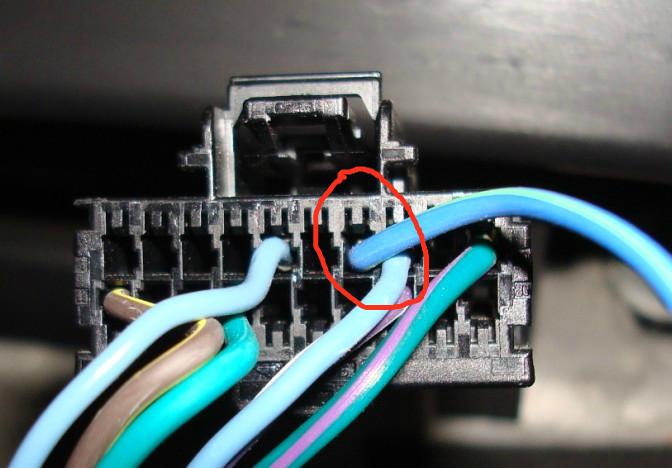

The first wire you will be jumping the resistor across. Dark blue wire with light green tracer
Looking from the front of the connector it is pin 7

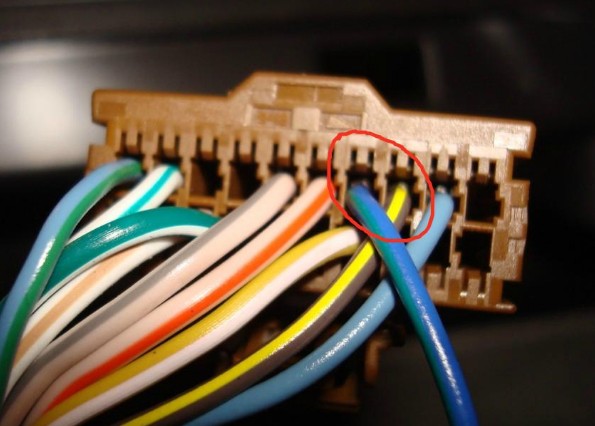

The second wire is dark blue with a dark green tracer
Looking from the front of the connector it is Pin 14
I will post a pic of the resistor spliced in once I finish it up and have some time.
I just wanted to share my results with you. Now, the temperature coming out of my vents is about 13 degrees colder and sits right around 42 degrees. Feel free to post up and share your results or input.
In short, you will be splicing in a resister across two wires that go to the evaporator temperature sensor.
I ended up using a 20K ¼-watt resistor that I picked up at a local electronics supply. I tried different values to achieve the coldest temperature without it freezing up.
I started with a potentiometer or pot and turned the dial until I achieved the desired results. You don’t need the pot, it was just easier for me since I didn’t have a base value to work off of. You could even install the pot on the dash to adjust on the fly. I am still not sure if I would need/want to do that though. Once I achieved the desired result, I just measured the resistance across the terminals and went shopping for my resistor.
The thermistor/sensor from the factory could vary so the resistor value needed will also slightly vary. You may have to go with a lower or higher value. The mod is easy enough to try with different values. I would try the 20K to start with since my choice was conservative.
The pack of 10 was only $2.
Here we go:
Remove the lower trim piece below the dash by releasing the plastic retainers. I used a plastic trim tool to avoid any scratches
Remove the two screws (referenced as #2 )holding the instrument cluster bezel and pry it of once done.
Remove the 4 screws that secure the instrument cluster in place
We will be working with the black and brown connectors
The first wire you will be jumping the resistor across. Dark blue wire with light green tracer
Looking from the front of the connector it is pin 7
The second wire is dark blue with a dark green tracer
Looking from the front of the connector it is Pin 14
I will post a pic of the resistor spliced in once I finish it up and have some time.
