Default Locker Mod - 2012
I think the relays for the lockers is on the drivers side on the 2012s -

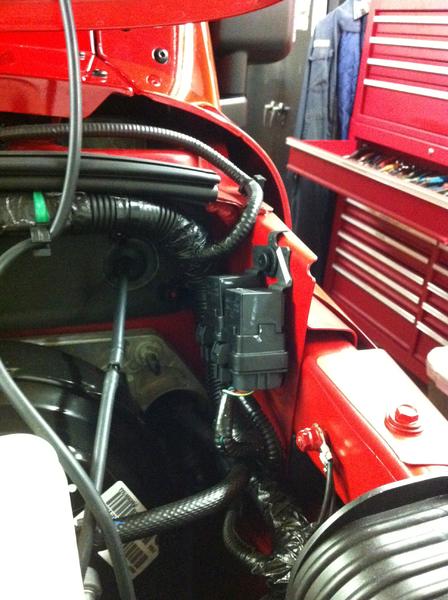

Click image for larger version Name: Relays on car.jpg Views: 492 Size: 49.1 KB ID: 214146

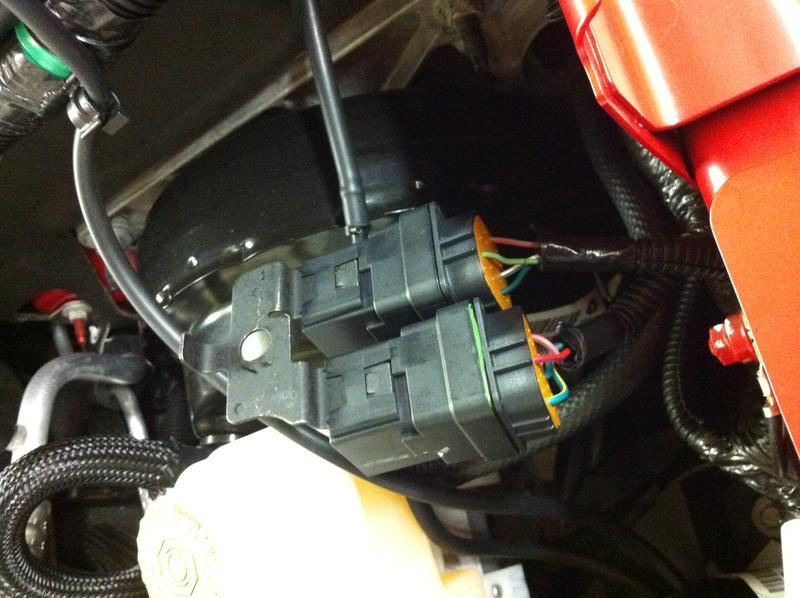

Click image for larger version Name: Relays close.jpg Views: 457 Size: 46.0 KB ID: 214147

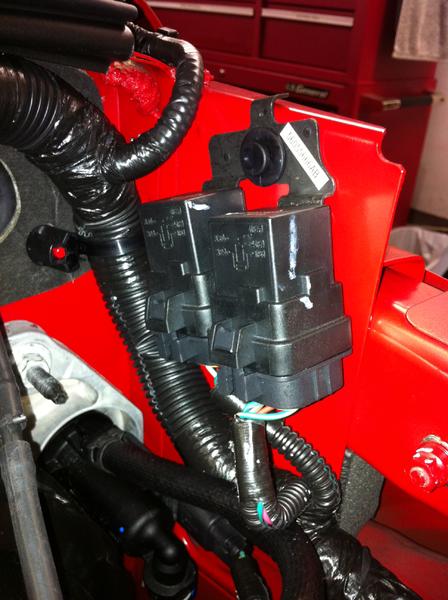

Click image for larger version Name: Relays seperated from car.jpg Views: 451 Size: 64.6 KB ID: 214148

Have I mistaken these for something different?

THANKS!!
Reply
0
Old Sep 22, 2011 | 06:09 AM
Share
  #2
Noxian's Avatar
Noxian
JK Super Freak

Joined: Oct 2010
Posts: 1,208
Likes: 2
From: Manitoba
Default
If that is the case looks easier than behind the battery on the old JKs
Reply
0
Old Sep 23, 2011 | 03:28 PM
Share
  #3
whpony96's Avatar
whpony96
JK Junkie

Joined: Feb 2008
Posts: 2,071
Likes: 2
From: Nampa, Idaho
Default
Humm they might be the locker relays but you want to make 100% sure they are before you go cuttin' wires. Grab a copy of the Electronics Shop Service manual.
Reply
0
Old Nov 26, 2011 | 06:49 PM
Share
  #4
trippnk's Avatar
trippnk
JK Newbie

Joined: Mar 2011
Posts: 66
Likes: 0
From: Charleston, SC
Default
Bringing this one back, did you ever find out if these are the correct relays?
Reply
0
Old Nov 26, 2011 | 07:00 PM
Share
  #5
ronjenx's Avatar
ronjenx
JK Jedi Master
15 Year Member

Joined: Feb 2008
Posts: 12,904
Likes: 185
From: Maine
Default
Originally Posted by trippnk
Bringing this one back, did you ever find out if these are the correct relays?
Have someone actuate your lockers and see if you can hear/feel the relays click.
Reply
0
Old Nov 26, 2011 | 07:04 PM
Share
  #6
trippnk's Avatar
trippnk
JK Newbie

Joined: Mar 2011
Posts: 66
Likes: 0
From: Charleston, SC
Default
LOL to easy! Any thoughts on using only the factory switch to keep it stealthy?
Reply
0
Old Nov 27, 2011 | 03:25 AM
Share
  #7
koryliss's Avatar
koryliss
Thread Starter
JK Newbie

Joined: Jul 2011
Posts: 14
Likes: 0
From: New Fairfield, CT
Default
I was waiting for a 2012 service / wiring diagram to confirm the relays but am still not able to get one -but - I think I am wrong; the wires look like the wrong colors - I think the locker relays are still by the battery.

Kory
Reply
0

Trending Topics

Old Nov 27, 2011 | 07:30 AM
Share
  #8
ronjenx's Avatar
ronjenx
JK Jedi Master
15 Year Member

Joined: Feb 2008
Posts: 12,904
Likes: 185
From: Maine
Default
Originally Posted by koryliss
I was waiting for a 2012 service / wiring diagram to confirm the relays but am still not able to get one -but - I think I am wrong; the wires look like the wrong colors - I think the locker relays are still by the battery.

Kory
See post #5 above. Mystery solved.
Reply
0
