17"X9" wheel with a 4.5" back spacing

Thread Tools

Old Jul 9, 2012 | 09:46 AM
Share
  #1
Hav's Avatar
Hav
Thread Starter
JK Newbie

Joined: Jul 2012
Posts: 17
Likes: 0
From: Cameron, Ok
Default 17"X9" wheel with a 4.5" back spacing
does anyone have any pics showing how far a 17"X9" wheel with a 4.5" back spce would stick out past the fender. I am looking at this size wheel with Nitto terra graplers 305/70/17 mounted on them.

Thanks for the help.
Reply
0
Old Jul 9, 2012 | 09:58 AM
Share
  #2
joelbarras20's Avatar
joelbarras20
JK Newbie

Joined: Apr 2012
Posts: 76
Likes: 0
From: New Orleans, la
Default
I have the 17 X 9 XD Addicts w/4.5 Back Spacing with nitto Trail Grapplers and they stick out 1.5"
Reply
0
Old Jul 9, 2012 | 11:42 AM
Share
  #3
Joe_B's Avatar
Joe_B
JK Freak

Joined: Dec 2010
Posts: 656
Likes: 2
From: Toronto, Ontario
Default

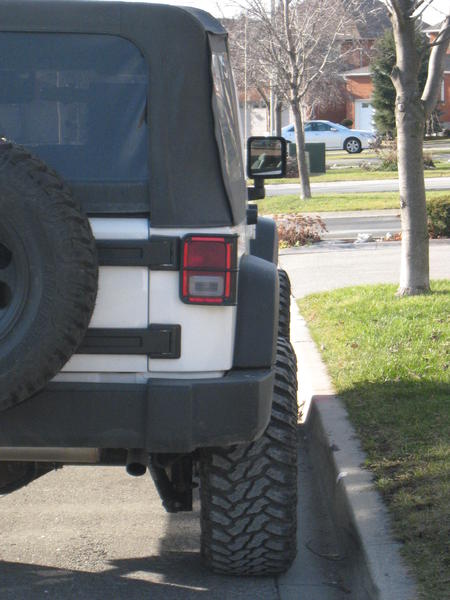

This is a 33x12.5 (similar size) on a 17x9 rim with 4.5" backspacing
Attached Thumbnails Click image for larger version Name: Back2.jpg Views: 132 Size: 43.9 KB ID: 339138
Reply
0
Old Jul 9, 2012 | 12:03 PM
Share
  #4
KY JK's Avatar
KY JK
JK Freak

Joined: Nov 2011
Posts: 724
Likes: 1
From: Louisville, KY
Default

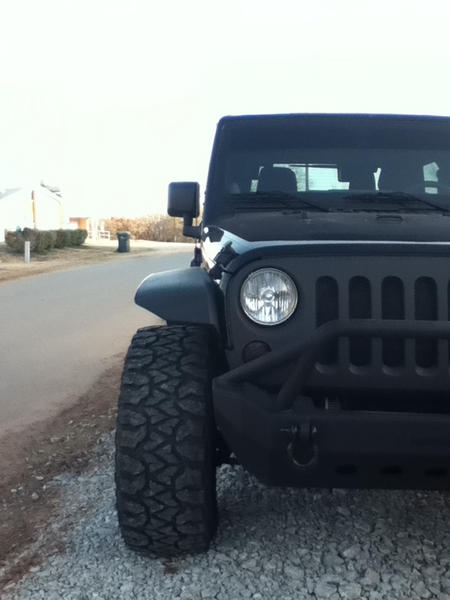

17x9 Addicts with 35's

Click image for larger version Name: Jeep15.jpg Views: 167 Size: 44.8 KB ID: 339150
Reply
0
Old Jul 9, 2012 | 12:34 PM
Share
  #5
Hav's Avatar
Hav
Thread Starter
JK Newbie

Joined: Jul 2012
Posts: 17
Likes: 0
From: Cameron, Ok
Default
Thanks for the pics and info.
Reply
0
Old Jul 9, 2012 | 06:53 PM
Share
  #6
CerOf's Avatar
CerOf
JK Super Freak

Joined: Apr 2009
Posts: 1,331
Likes: 0
From: Dallas, TX
Default

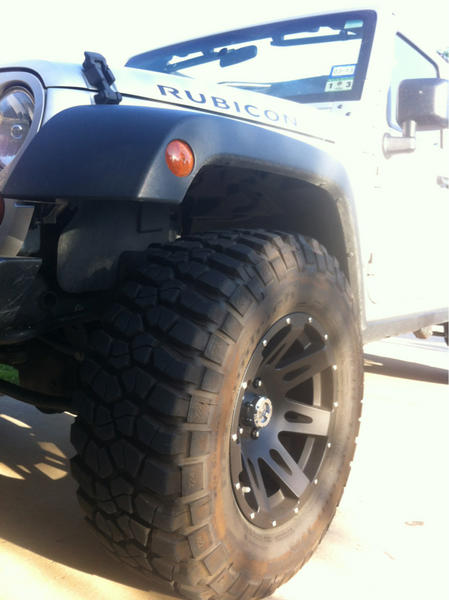

Click image for larger version Name: image-3264339022.jpg Views: 92 Size: 38.9 KB ID: 339272

305/65R17 BFG mt km2s

Same width. Exactly 12" wide.

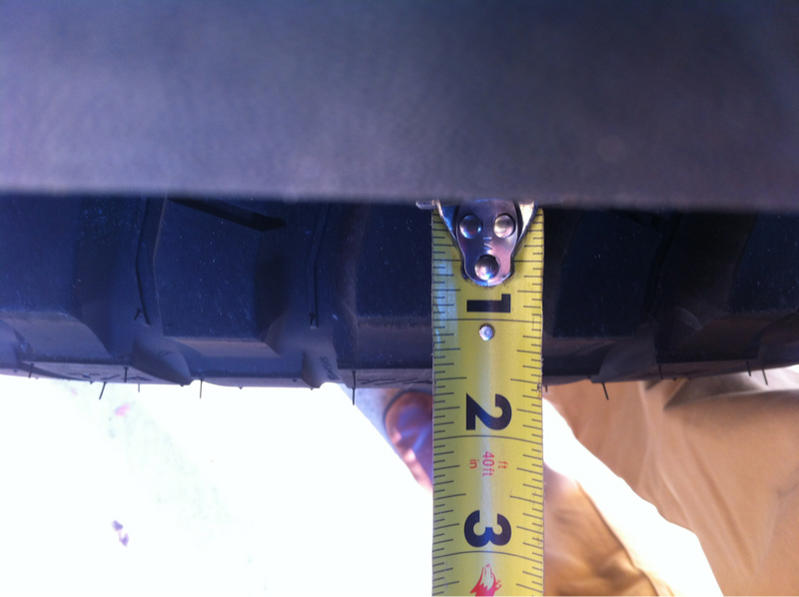

Click image for larger version Name: image-3936417184.jpg Views: 95 Size: 37.1 KB ID: 339275
Reply
0
Old Jul 9, 2012 | 07:30 PM
Share
  #7
1978cj7jk2012's Avatar
1978cj7jk2012
JK Super Freak

Joined: Jan 2012
Posts: 1,611
Likes: 1
From: Pawnee Ok
Default

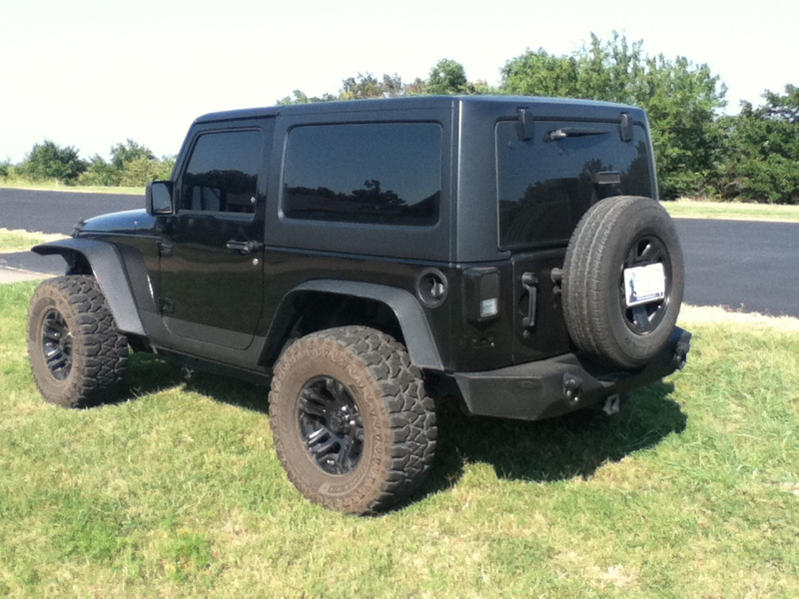

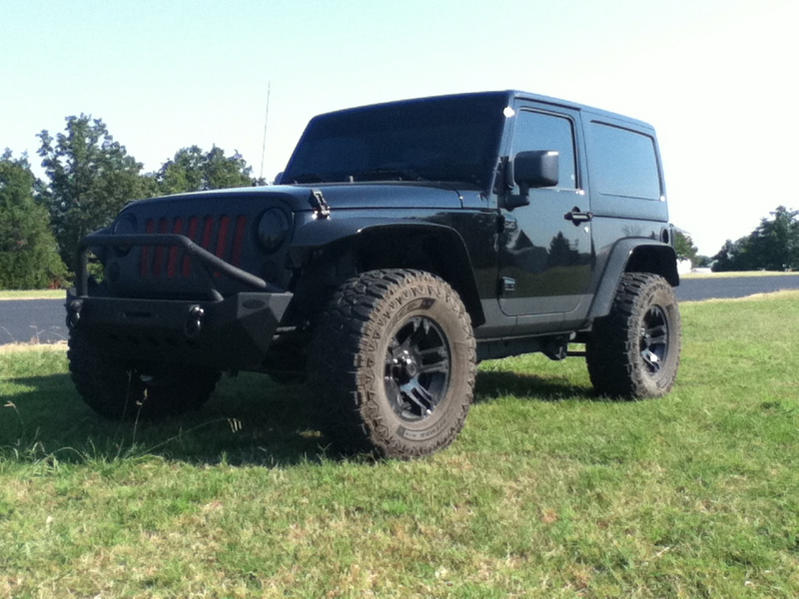

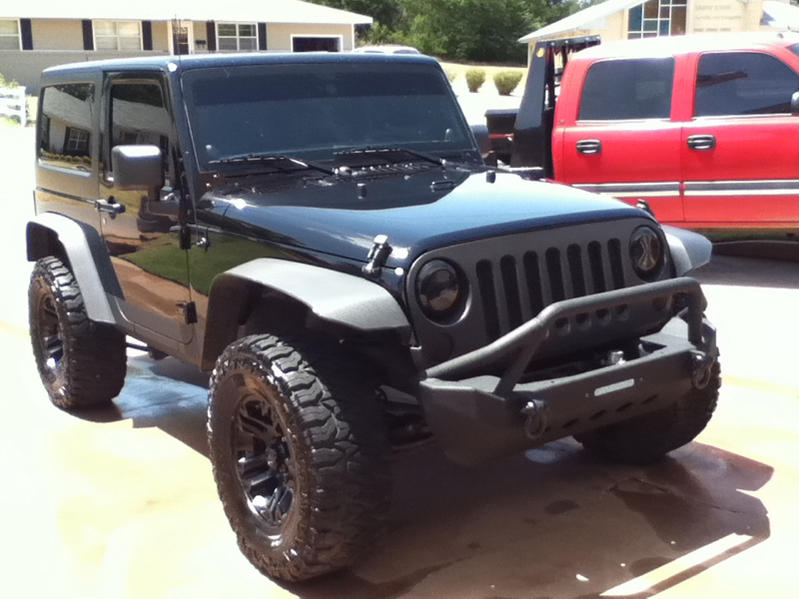

305/70r16 16x9 with 4.5 inches of bs. Same thing different diameter.
Attached Thumbnails Click image for larger version Name: image-1824765330.jpg Views: 70 Size: 29.2 KB ID: 339301   Click image for larger version Name: image-598369043.jpg Views: 71 Size: 66.4 KB ID: 339302   Click image for larger version Name: image-351095352.jpg Views: 73 Size: 77.0 KB ID: 339303   Click image for larger version Name: image-631456437.jpg Views: 76 Size: 80.7 KB ID: 339306
