Adj front toe in/out alignement
#1
JK Jedi
Thread Starter
Join Date: Dec 2011
Location: Nevada City California
Posts: 5,234
Likes: 0
Received 3 Likes
on
3 Posts
![Default](https://www.jk-forum.com/forums/images/icons/icon1.gif)
I've read the write- up on front end alignment. It's all pretty straight forward and easy to do on my own a number of times. Haven't needed to mess with toe angle until recently. Project-JK.com - Jeep JK Wrangler Resource » Basic Do-it-Yourself Jeep JK Wrangler Front End Alignment. Question is: My passenger front tire is wearing on the outer half faster. So I need to adjust my toe out? for passenger side, e.g the bottom of the tire needs to be pushed out. Do I remove passenger side link on tie rod to adjust the knuckle out further? Trying to push the front passenger side tire bottom portion out being the outer say half of tread is wearing excessively in comparison to the driver side. Hope I'm being somewhat clear to make since here....thanks for your advice
![Thinking](https://www.jk-forum.com/forums/images/smilies/thinking.gif)
#2
Forum Tech Advisor
![Default](https://www.jk-forum.com/forums/images/icons/icon1.gif)
The knuckles are not adjusted independently.
Your wear issue may be from too much cross caster combined with too much toe-in.
For sure, rotate that unevenly worn tire to the back axle.
Measure caster for each side, and watch this short youtube video on toe adjustment.
http://youtu.be/K2pjCebuyDo
Sent from my iPad using Tapatalk HD
Your wear issue may be from too much cross caster combined with too much toe-in.
For sure, rotate that unevenly worn tire to the back axle.
Measure caster for each side, and watch this short youtube video on toe adjustment.
http://youtu.be/K2pjCebuyDo
Sent from my iPad using Tapatalk HD
Last edited by planman; 01-16-2013 at 08:59 PM.
#3
JK Jedi
Thread Starter
Join Date: Dec 2011
Location: Nevada City California
Posts: 5,234
Likes: 0
Received 3 Likes
on
3 Posts
![Default](https://www.jk-forum.com/forums/images/icons/icon1.gif)
Thank you for your help. So would I adjust the driver side turn knuckle for setting toe as shown in the video? Turning it clockwise? I'm just still not quite clear. I'm working on dialing in my adj control arms, as I swapped them out from my old WP fixed length arms, both top and bottom too. I do need to recenter my axle again, it's off less than 1/4", sticking out further to drivers side. Would this have anything to do with the unusual tire wear on outer passenger side? Thanks
Last edited by k0260; 01-16-2013 at 09:07 PM.
#5
![Default](https://www.jk-forum.com/forums/images/icons/icon1.gif)

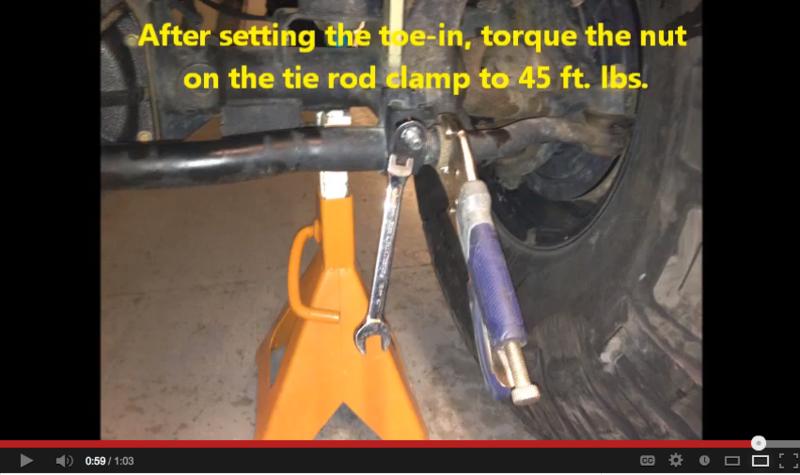

Taking this screen pic from his video, if you take the blue handled wrench and wrench it up, you will get toe in.
if you wrench it down, you're effectively lengthening the tie-rod bar to get the tires to toe out.
That should be correct unless Jeep engineers decided to reverse thread it....
#7
Forum Tech Advisor
![Default](https://www.jk-forum.com/forums/images/icons/icon1.gif)
The computer readouts for alignments don't have any meaning with regard to toe on one single side.
So, set your toe. Then, straighten your steering wheel--using the collar on the drag link.
