Air Horn Installed -- On Board Air System

Thread Tools

Old Jul 2, 2008 | 01:53 PM
  #1
Heyspike's Avatar
Thread Starter
JK Enthusiast

Joined: Nov 2006
Posts: 268
Likes: 0
From: Hudson Valley NY
Default Air Horn Installed -- On Board Air System

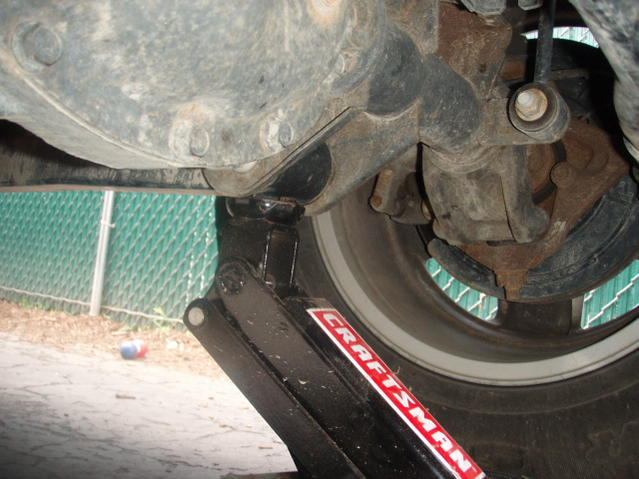

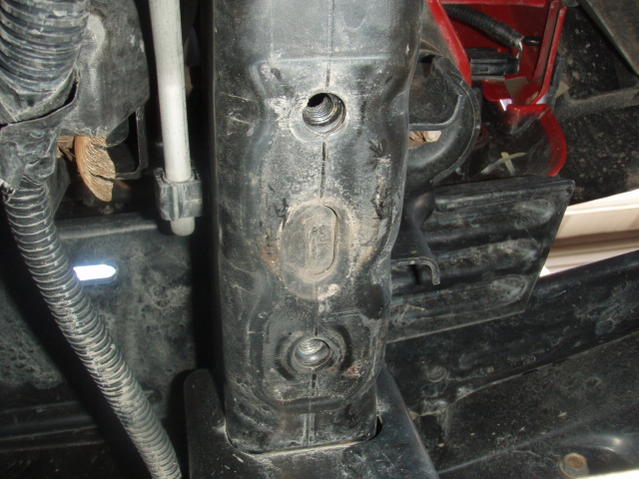

Well I did it! I was inspired by one of our members. The install went fairly well, I had some minor fabrication problems. I installed the 1-gallon tank and the compressor inside the front bumper. I had to drop the sway bar to fit the tank in. I chopped off the 2 plastic screws holding the top plastic bumper plate on and removed it.(giving me access from the top. Advanced Auto sell the plastic screws for a couple of bucks. I drilled some holes into the cross beam and mounted the compressor. I made a bracket for the air tank. Ran the hose up to the top and added a Air Terminal Block. It now has a female air jack for accessories. I found the power from M9--Heated seats.

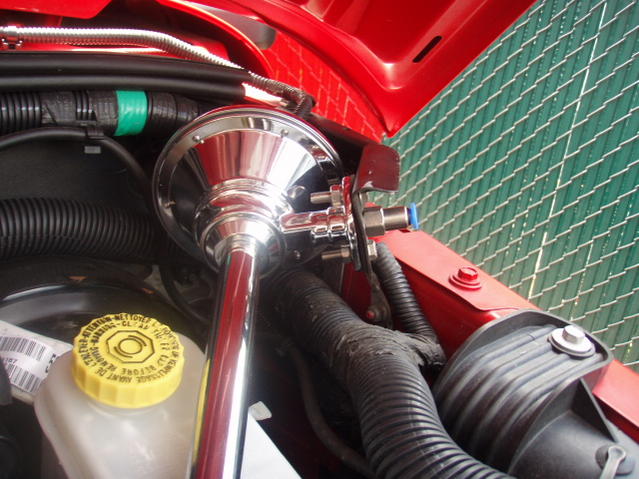

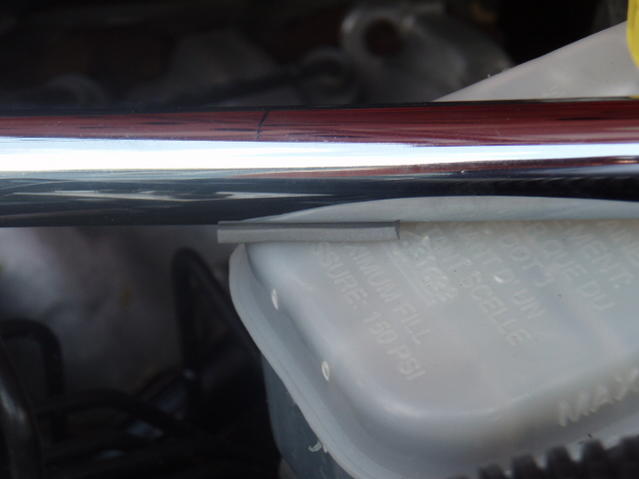

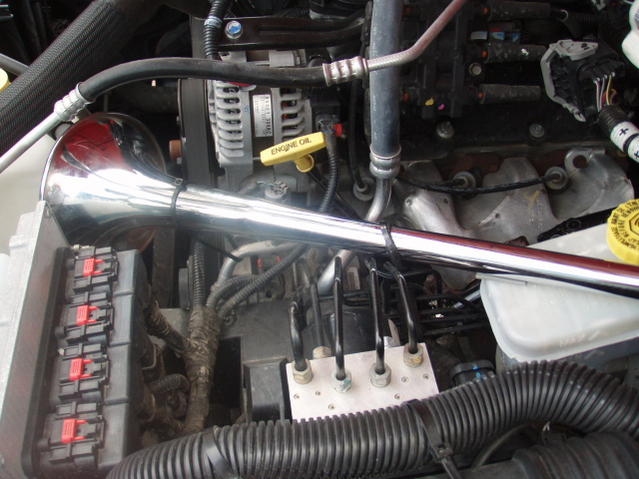

I made a bracket for the air horn itself, similiar to the one I found here. I mounted a electrical terminal block underneat the steering wheel on that aluminum frame. I jumpered some terminals and added a 20amp fuse to the power for the compressor.
Attached Thumbnails Click image for larger version

Name:	Jack Point.jpg
Views:	146
Size:	51.1 KB
ID:	10510   Click image for larger version

Name:	P6300019.jpg
Views:	141
Size:	28.2 KB
ID:	10511   Click image for larger version

Name:	P6300021.jpg
Views:	120
Size:	52.1 KB
ID:	10512   Click image for larger version

Name:	P6300025.jpg
Views:	118
Size:	47.0 KB
ID:	10513   Click image for larger version

Name:	P6300026.jpg
Views:	125
Size:	52.9 KB
ID:	10514

Reply
Old Jul 2, 2008 | 01:55 PM
  #2
Heyspike's Avatar
Thread Starter
JK Enthusiast

Joined: Nov 2006
Posts: 268
Likes: 0
From: Hudson Valley NY
Default

Sorry I forgot how to load the photos so they show right away.
Attached Thumbnails Click image for larger version

Name:	P6300028.jpg
Views:	113
Size:	61.6 KB
ID:	10515   Click image for larger version

Name:	P7010038.jpg
Views:	113
Size:	33.2 KB
ID:	10516   Click image for larger version

Name:	P7010044.jpg
Views:	107
Size:	51.0 KB
ID:	10517   Click image for larger version

Name:	P7010040.jpg
Views:	113
Size:	38.6 KB
ID:	10518   Click image for larger version

Name:	P7010048.jpg
Views:	108
Size:	44.8 KB
ID:	10519

Reply
Old Jul 2, 2008 | 01:59 PM
  #3
Heyspike's Avatar
Thread Starter
JK Enthusiast

Joined: Nov 2006
Posts: 268
Likes: 0
From: Hudson Valley NY
Default

Last one.

I had a couple of problems:

Forgot how to wire the switch.

Had the air switch in backwards--leaking by.

Some air leaks--almost every connection.

I also added a foot well switch on the side of the plastic housing near my left foot.

Thanks All.
John
