Alignment issues after TeraFlex Leveling Kit Install
Thread Starter
JK Newbie
Joined: Dec 2015
Posts: 16
Likes: 0
From: Charlotte, NC
Alignment issues after TeraFlex Leveling Kit Install

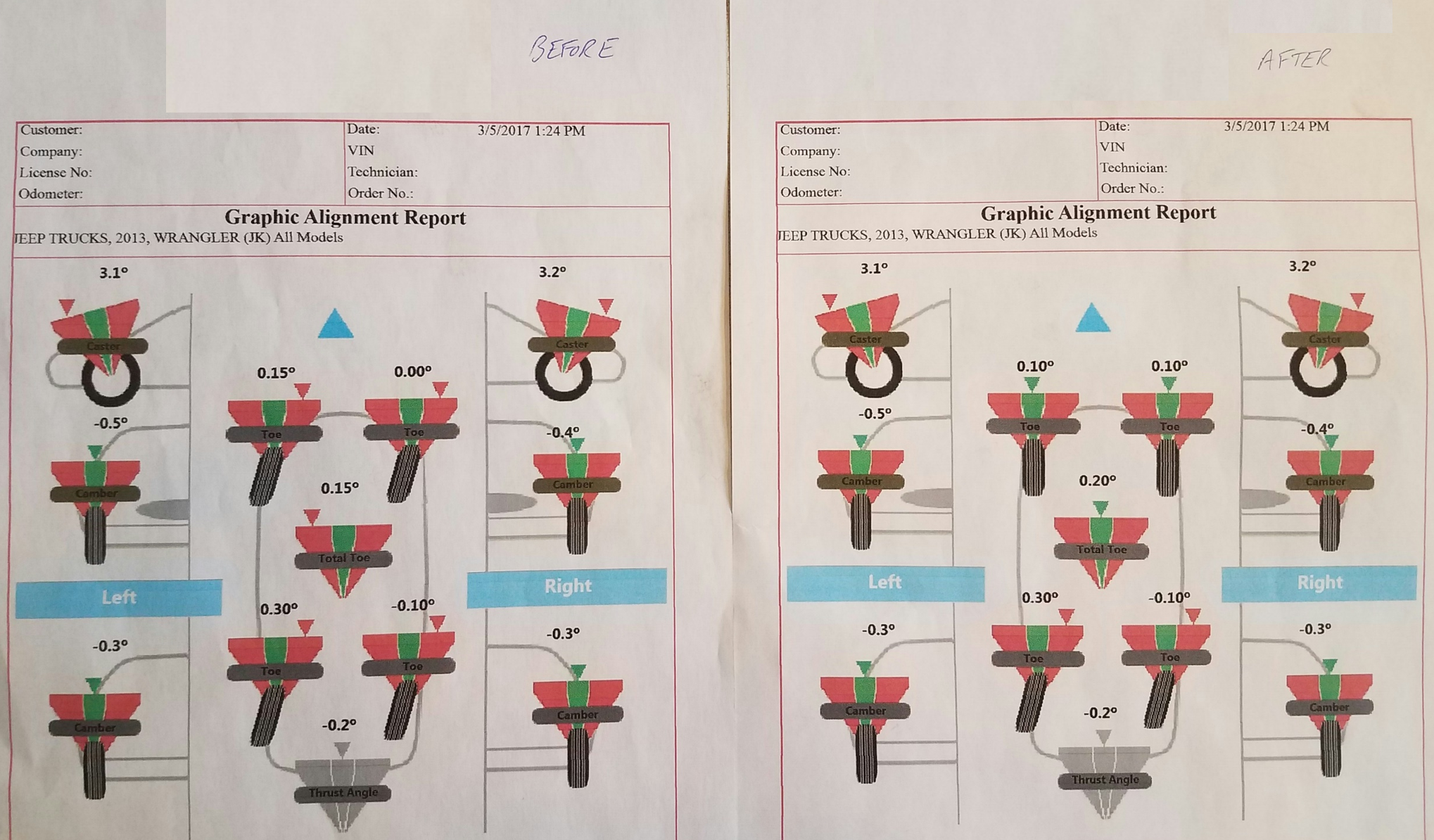

I took my 13 JKU to the alignment shop today and they claimed they could only fix the front Toe (see attached pic) due to the lift. That left the front Caster and rear Toe way off. Does anyone have any ideas what would prevent them from being able to align my JKU? All I did was install the TeraFlex leveling kit (2 in front, 1 in rear).
