Help identifying lift

Thread Tools

Old Sep 15, 2014 | 05:12 PM
Share
  #1
Captfranny's Avatar
Captfranny
Thread Starter
JK Enthusiast

Joined: Jun 2012
Posts: 328
Likes: 0
From: AZ
Default Help identifying lift
Hey all,
I just picked up a JKU from a seller that did not even know his jeep had a lift on it. It is obviously an AEV lift. I can't tell if it 2.5" or 3.5". Is there any way to identify which it is?

Sent from my iPhone using JK-Forum
Reply
0
Old Sep 15, 2014 | 05:36 PM
Share
  #2
kaptkrappy's Avatar
kaptkrappy
JK Super Freak

Joined: Aug 2011
Posts: 1,220
Likes: 1
From: Punta Gorda, FL.
Default

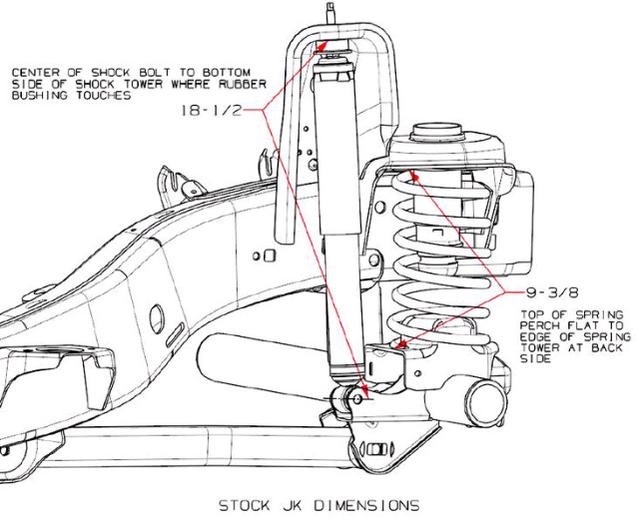

This is the stock lift / dimension.

Click image for larger version Name: Stock Front Suspension Dimension Specs.jpg Views: 141 Size: 46.3 KB ID: 575781


.
Reply
0
Old Sep 15, 2014 | 06:24 PM
Share
  #3
Captfranny's Avatar
Captfranny
Thread Starter
JK Enthusiast

Joined: Jun 2012
Posts: 328
Likes: 0
From: AZ
Default
Thank you

Sent from my iPhone using JK-Forum
Reply
0
Old Sep 15, 2014 | 07:24 PM
Share
  #4
jadmt's Avatar
jadmt
JK Jedi
JK-Forum Ambassador

Joined: Sep 2012
Posts: 4,364
Likes: 107
From: missoula,mt
Default
also they have different size bump stops and the 3.5" should come with rear sway bar links and high steer kit, geo brackets and longer shocks etc.
Reply
0
