This is my third and hopefully final write-up on hacking the sPod. I think it does everything I want it to now but we all know how that goes.

My first mod was wiring the lower array of LEDs on the switches into the dash lights...

https://www.jk-forum.com/forums/jk-e...lights-311176/

Then came adding a lockout button for the locker switches...

https://www.jk-forum.com/forums/modi...ite-up-324369/

And now adding switched power to selected switches. Now I know the sPod has a low voltage cut-off but I have no interest in waiting until my battery gets weakened. It also is good for soft top guys and members who run naked as it disables the selected accessories from kids playing around. May or may not be a big deal to you. I wanted to make my light bar and a pillar lights only work with the key on. I am going to leave the rock lights unswitched.

So the plan was to run a switched power wire up to a junction block mounted in the sPod. I wanted a junction block as it would allow me to add or remove switches from switched power anytime by just attaching or removing a pigtail. I left the sPod connectors pigtailed so all the unswitched switches would still have power and I could just hook them back up if I decide to remove a switch from switched power. Rather than wait for shipping, I had some time so I just made my own junction block from scrap around the garage. I decided on using a piece of aluminum flat stock, some black machine screws for mounting, a small machine screw as a terminal, and some rubber grommets.




I decided to tap the aluminum stock but you can just add a nut and lock washer if you prefer.




I then plastdipped it and mounted it inside the sPod. I used two grommets per screw...one as an isolator and one as a spacer.

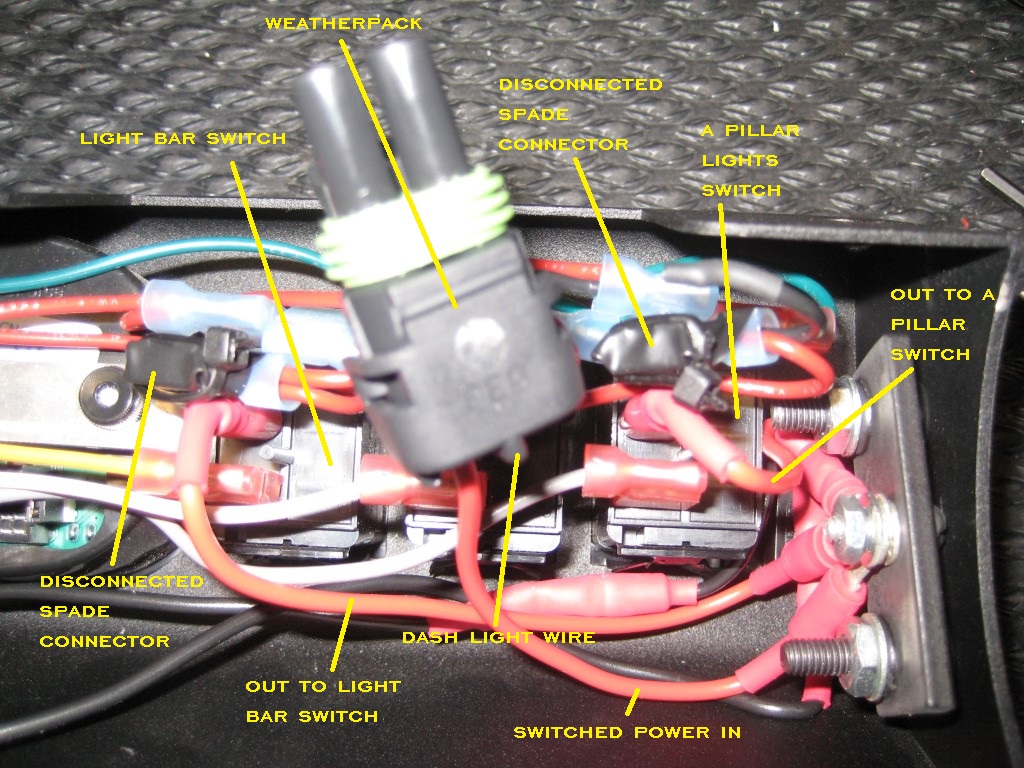

Since I already had a single wire weatherpack connector for the dash light feed in the sPod, I just removed it and used a 2 wire weatherpack connector in its place...one wire for the dash lights and the other to feed the junction block. I also stuck a piece of electrical tape over the unused sPod spade connectors. I wrapped a wire tie around each just as an extra measure to make sure the tape doesn't come loose. I then made up the pigtails using a ring connector for the terminal side and a female spade connector for the switch side.

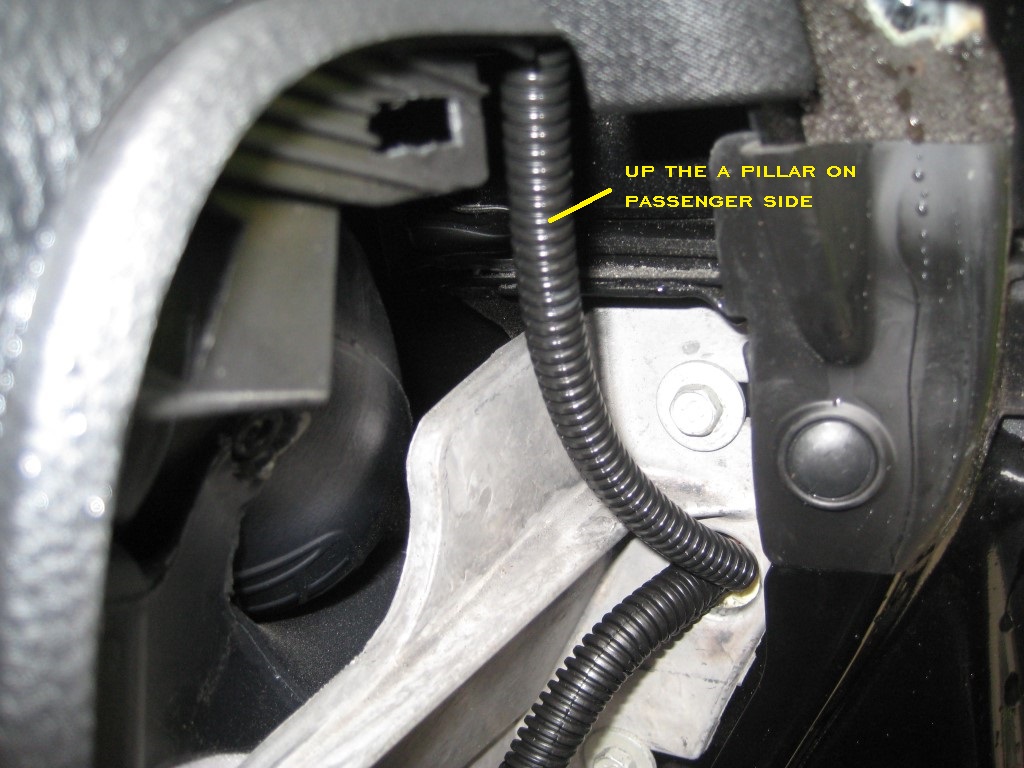

Next up was to run switched power up to the weatherpack connector in the tub. You can use a tap-a-fuse in the TIPM. Ron has an excellent write-up here. Since I had previously installed a tap-a-fuse when I installed a garage door transmitter, I was able to just tap that wire in the engine bay and run through the trusty old styrofoamed hole in the passenger side. Then up the a pillar and across the header trim.

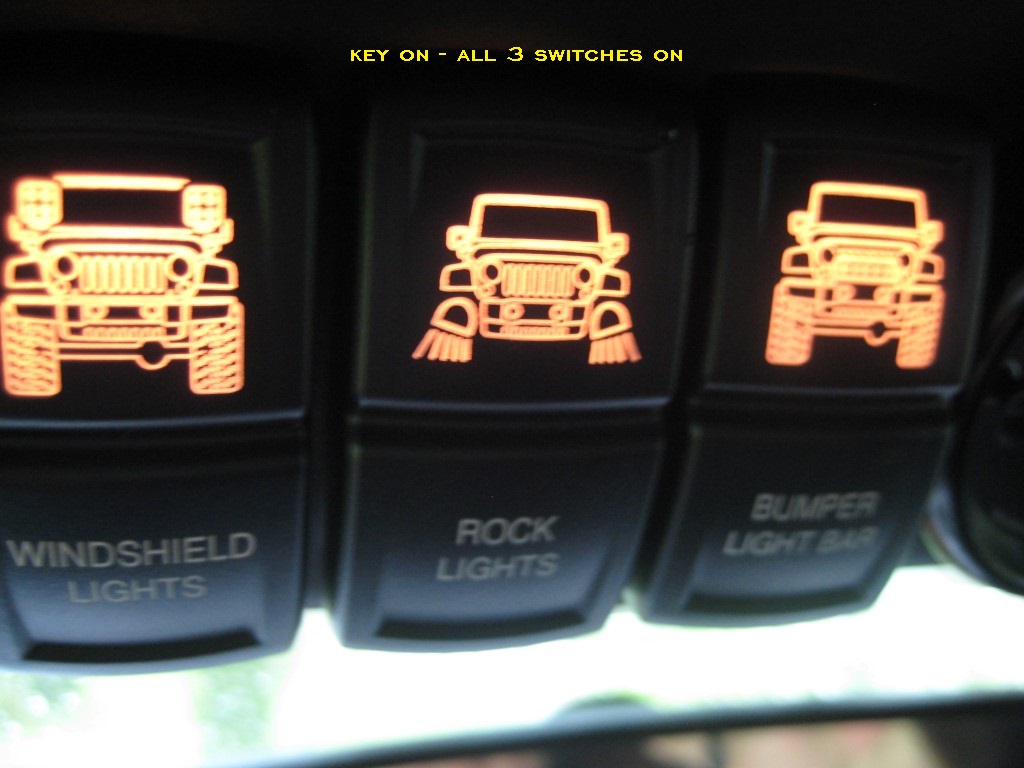

Tested and all looked good so I re-installed the sPod. Sorry for the blurry pics but I had to turn the flash off so the lights would show up and it was a rainy, overcast day. Here you can see the pillar lights and the light bar are no longer functional with the key off...




And function again with the key on...




The junction block screws on the side of the sPod. They really do match but the flash makes them stand out...

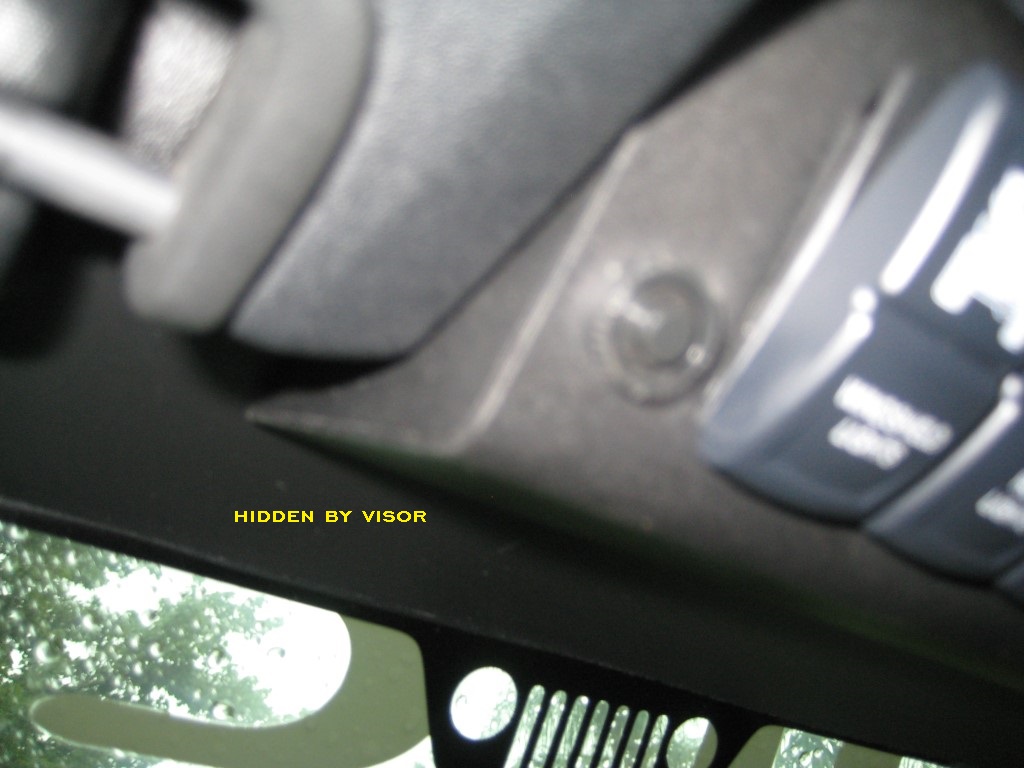

And as an unplanned bonus, they are hidden by the visor when it's not in use...




Not too bad a project, about 4 hours all tolled with the weather causing breaks.
