Default Wiring connector

Where would i find the pin out for the large gray wiring connector near the foot area on the passenger side
2017 wrangler rubicon recon
Reply
Old Jun 11, 2020 | 08:27 AM
  #2
jedg's Avatar
JK Junkie
Vet Army


Joined: Feb 2012
Posts: 3,068
Likes: 116
From: Bunnlevel, NC
Default

Give these folks a try - Mopar Connection Repair Kit or this - Mopar Connection Repair Kit

That may not be the correct one for you... but if you search their system, you'll likely find what you need. The plug you're referring to (I think) is called the INLINE-DOOR FRONT RIGHT/IP
Reply
Old Jun 11, 2020 | 11:40 AM
  #3
Bruce Seitz's Avatar
Thread Starter
JK Newbie

Joined: Jun 2020
Posts: 5
Likes: 0
From: Morehead City, NC
Default

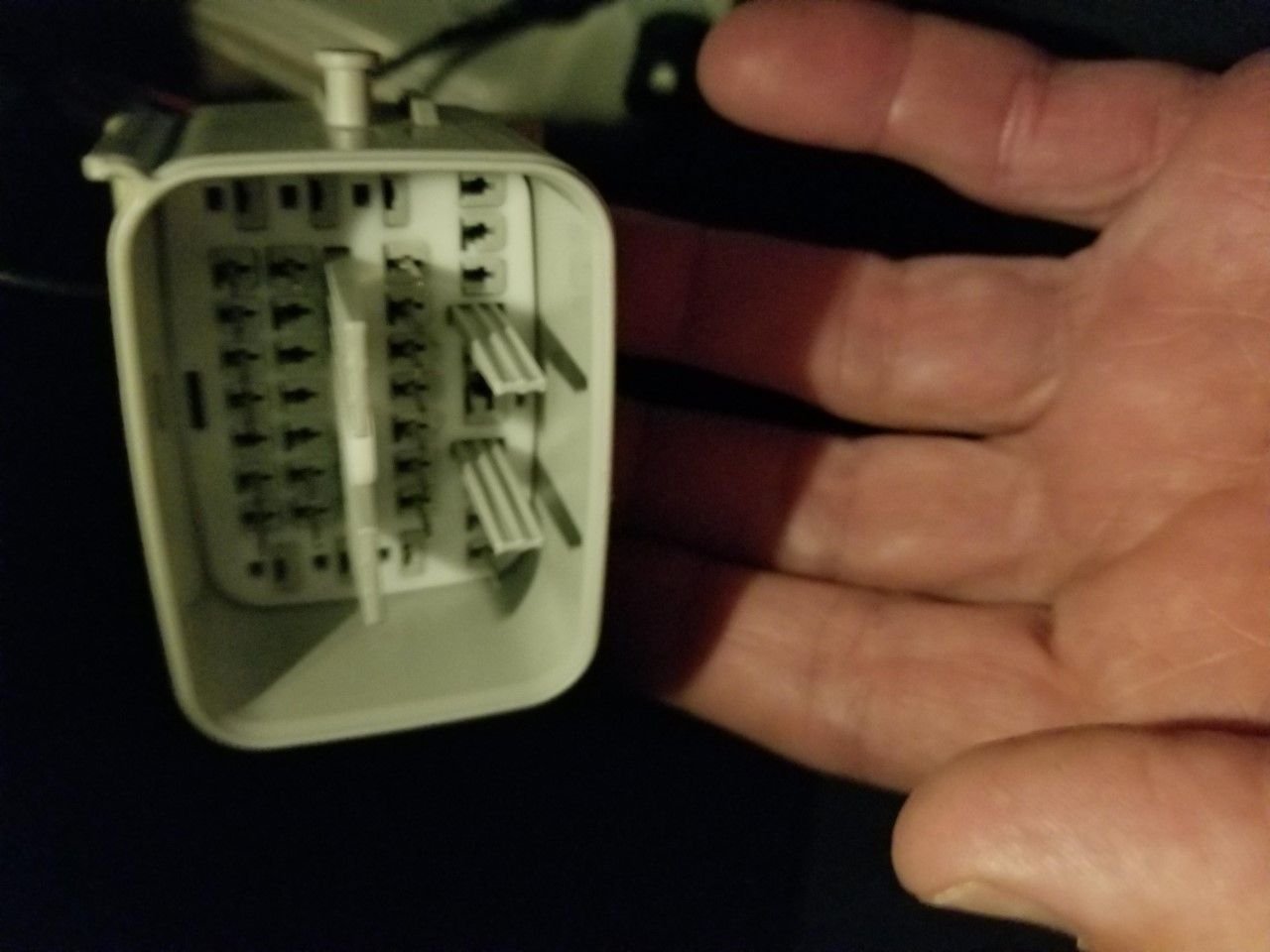

This is the connector


Reply
Old Jun 11, 2020 | 11:49 AM
  #4
Bruce Seitz's Avatar
Thread Starter
JK Newbie

Joined: Jun 2020
Posts: 5
Likes: 0
From: Morehead City, NC
Default

Sorry - The wiring pin-out for this connector
Reply
Old Jun 13, 2020 | 05:10 AM
  #5
Bruce Seitz's Avatar
Thread Starter
JK Newbie

Joined: Jun 2020
Posts: 5
Likes: 0
From: Morehead City, NC
Default

Thanks. I think I found it under Inline-Body/IP
