Old 04-12-2017, 06:00 AM
  #301
JK Freak

OnBelay's Avatar

Join Date: Oct 2009
Location: Auburn, Alabama
Posts: 589
Recieved 5 Likes on 4 Posts
Default This is a good thread re: SWR, but ...

There is more to antenna placement than SWR values. Yes, SWR will measure how well you have matched ("tuned") your antenna to your feed line for a given installation, but it doesn't tell the whole picture. We also need to consider the resonant frequency of the antenna, and what frequencies the SWR was measured at. What good is it to have an awesome SWR for an antenna that is less than optimal for its intended frequencies?

Case in point, our Larsen NMO 2/70 mounted to a JK's front fender. Our antenna shows an SWR of 1.0 over a wide range at this location. Awesome, right? Yes, except for this location reacts with the hood sheet metal slightly above the antenna's base, and with the A-pillar. As a result, that low SWR occurs at 142 MHz, which is below the 2 meter band plan. Also, this antenna happens to be resonant at around 142 MHz as well (no surprise, since SWR often corresponds to resonant frequency with major brand antennas such as Larsen, Diamond, Tram, etc.). Unfortunately, most of my area repeaters are 147 MHz or above, and our antenna's SWR is 2.0 at that frequency. At least the bottom of the 2 meter band has a relatively low SWR. See graph for details.

For the record, we are going to keep the location in this place, and trim the antenna to bring the SWR and resonance within the 2 meter band. Unfortunately this will impact 70cm performance as well, but we'll keep a spare OEM element for those times that we want to transmit on both UHF and VHF.

One more thing. Our CB antenna is an evil between the tire carrier and tailgate install, but we have SWR of 1.0 on channel 20 & 1.4 on channels 1 & 40. Antenna is resonant on 20, and less so on the other channels. It's possible to have a good installation at that location if the rest of your install is solid (e.g. GOOD BONDING), but the radiation pattern will definitely suffer.

Anyway, I thought I would post this just as a caveat for those focused solely on SWR. SWR is important, but we also need to focus on the FREQUENCY at which that SWR occurs, and the resonant frequency of our antenna, when determining a final installation.

Radios: ICOM ID-5100a, Cobra 29 NW WX BT
Antennas: Larsen NMO 2/70, 3' FireStik FS-2
Mounts: Accessories Unlimited AUJ1 & Laird MBOX for ham, Breedlove #203 disconnect and Cooltech gate mount for CB.
Coax: 9' of LMR-240 UltraFlex for ham, 18' FireStik FireRing for CB

-K4GMO (Dawn's husband)

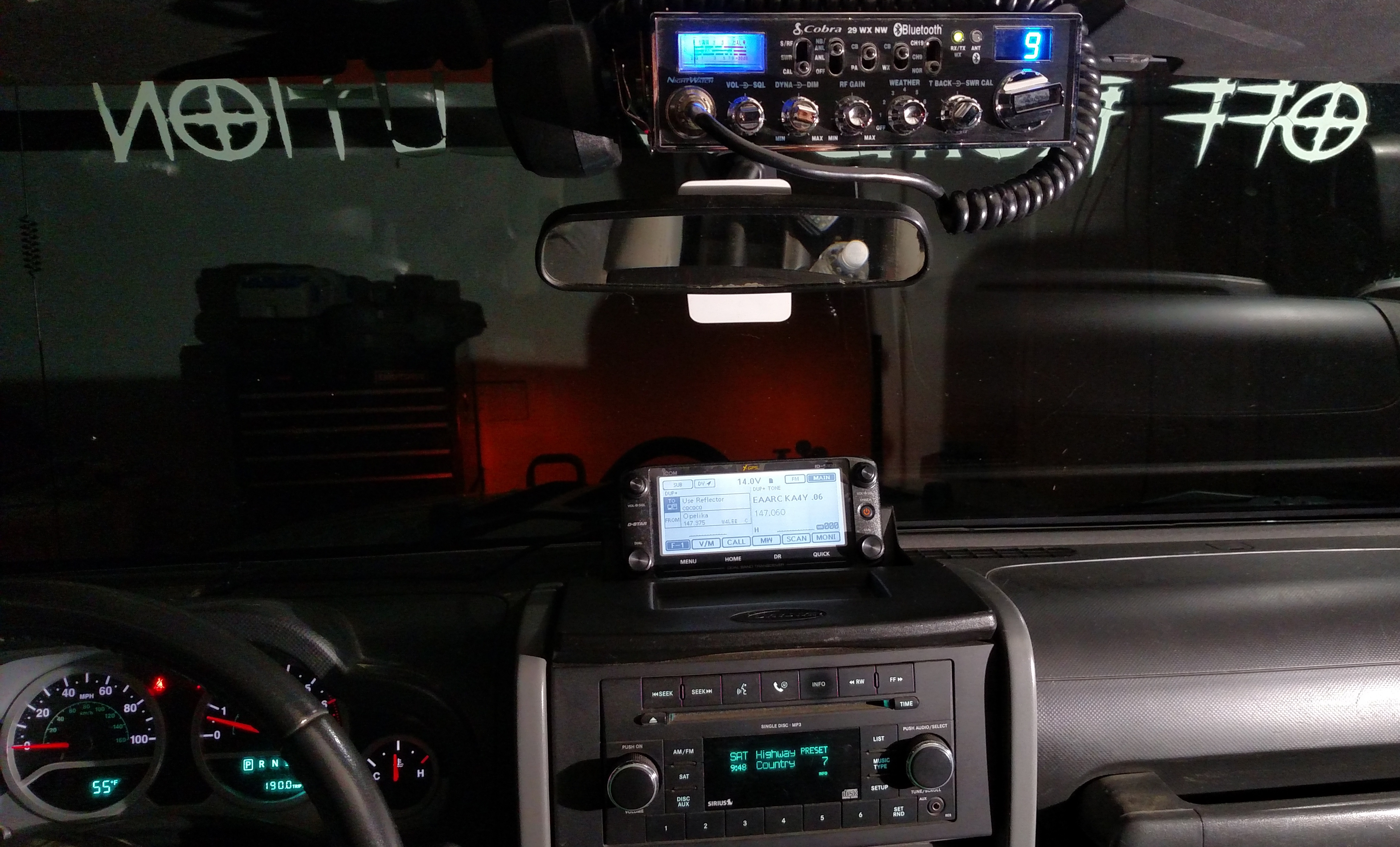

Radios:

Click image for larger version

Name:	Radios.jpg
Views:	402
Size:	3.20 MB
ID:	670200

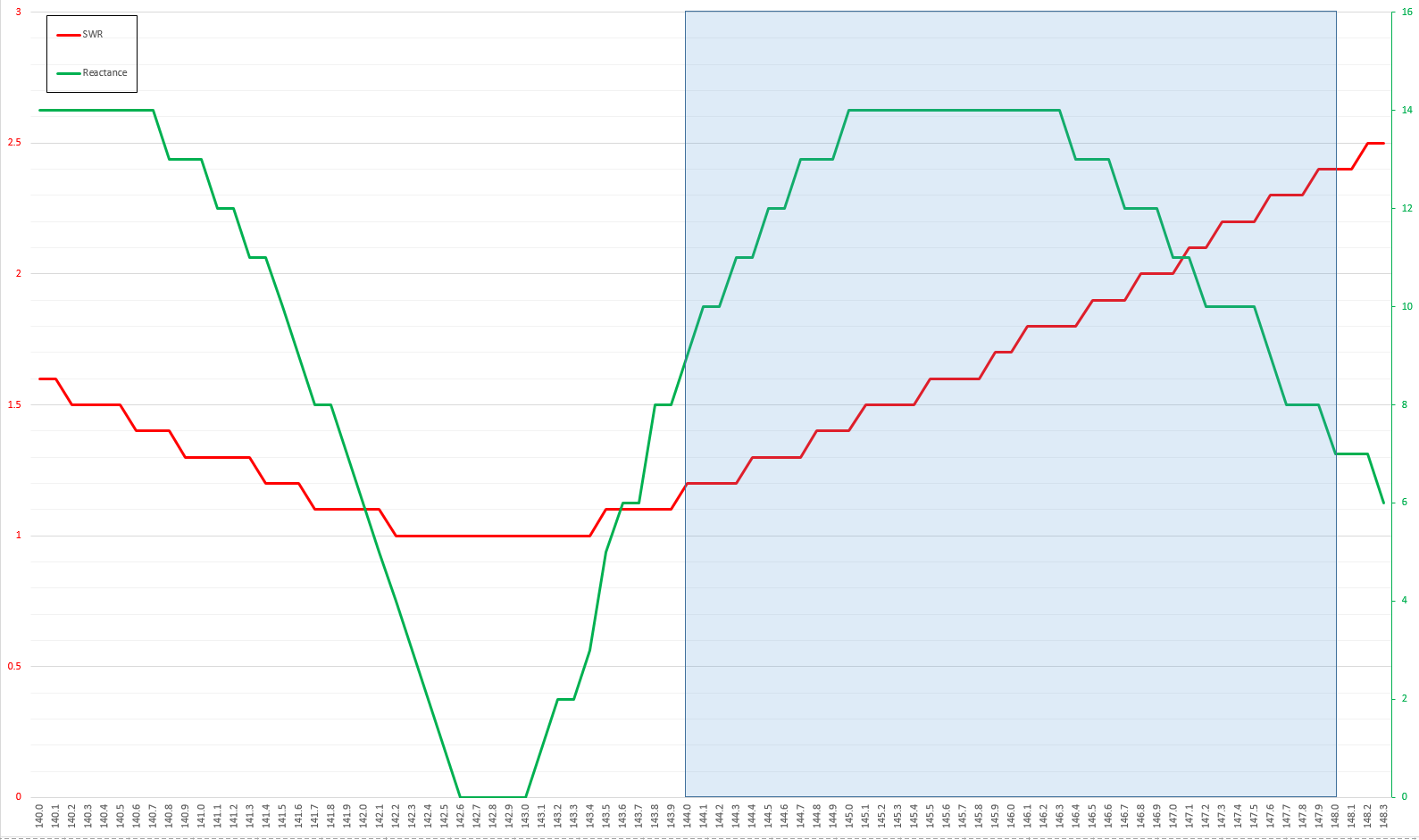

Fender Mount SWR and Capacitance chart for 2 meters:

Click image for larger version

Name:	Antenna Analysis.png
Views:	339
Size:	51.2 KB
ID:	670203

Fender mount ham antenna:

Click image for larger version

Name:	IMG_20170322_151740.jpg
Views:	398
Size:	3.17 MB
ID:	670204

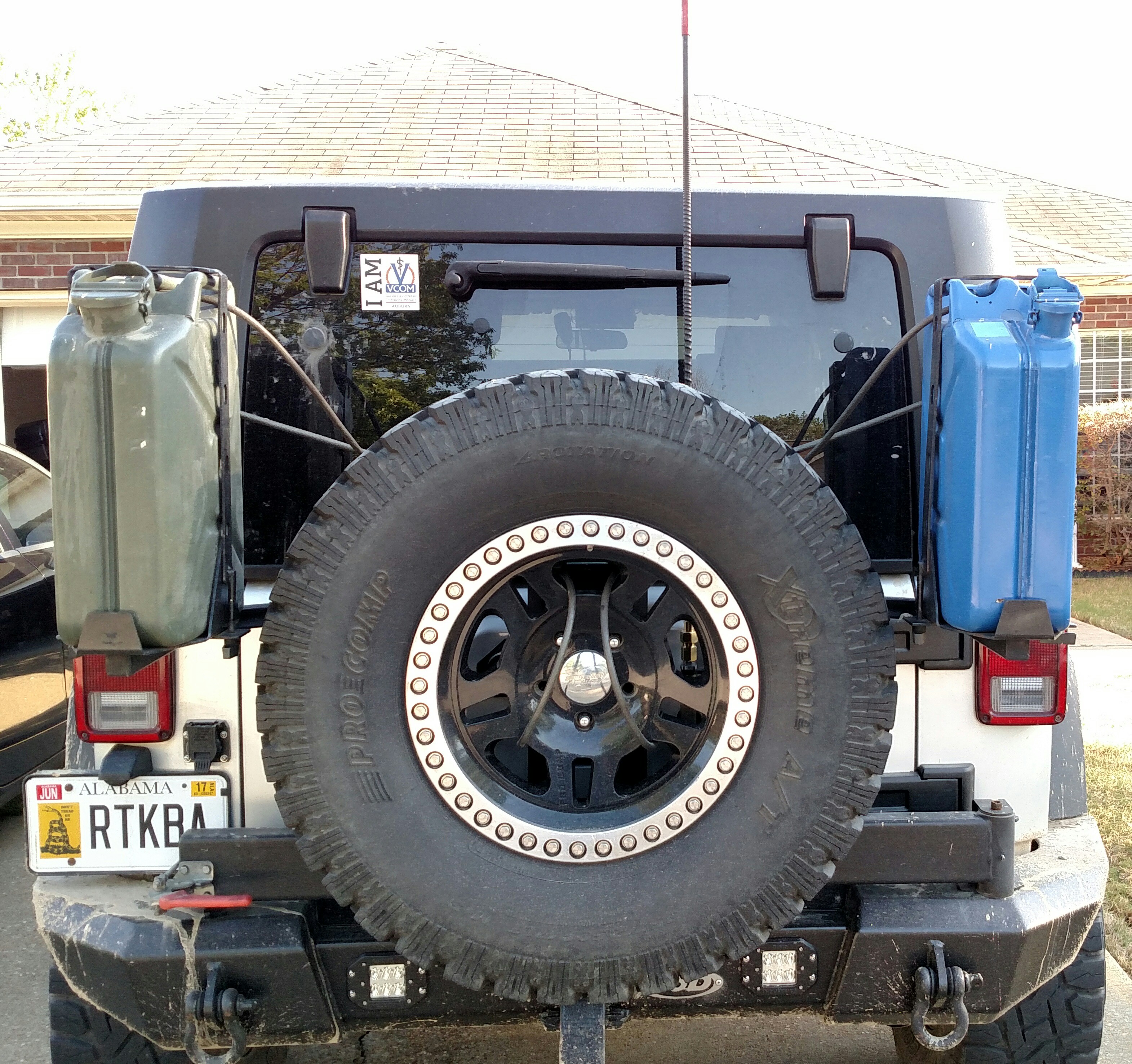

CB installation:

Click image for larger version

Name:	CB Mount.jpg
Views:	420
Size:	2.17 MB
ID:	670196

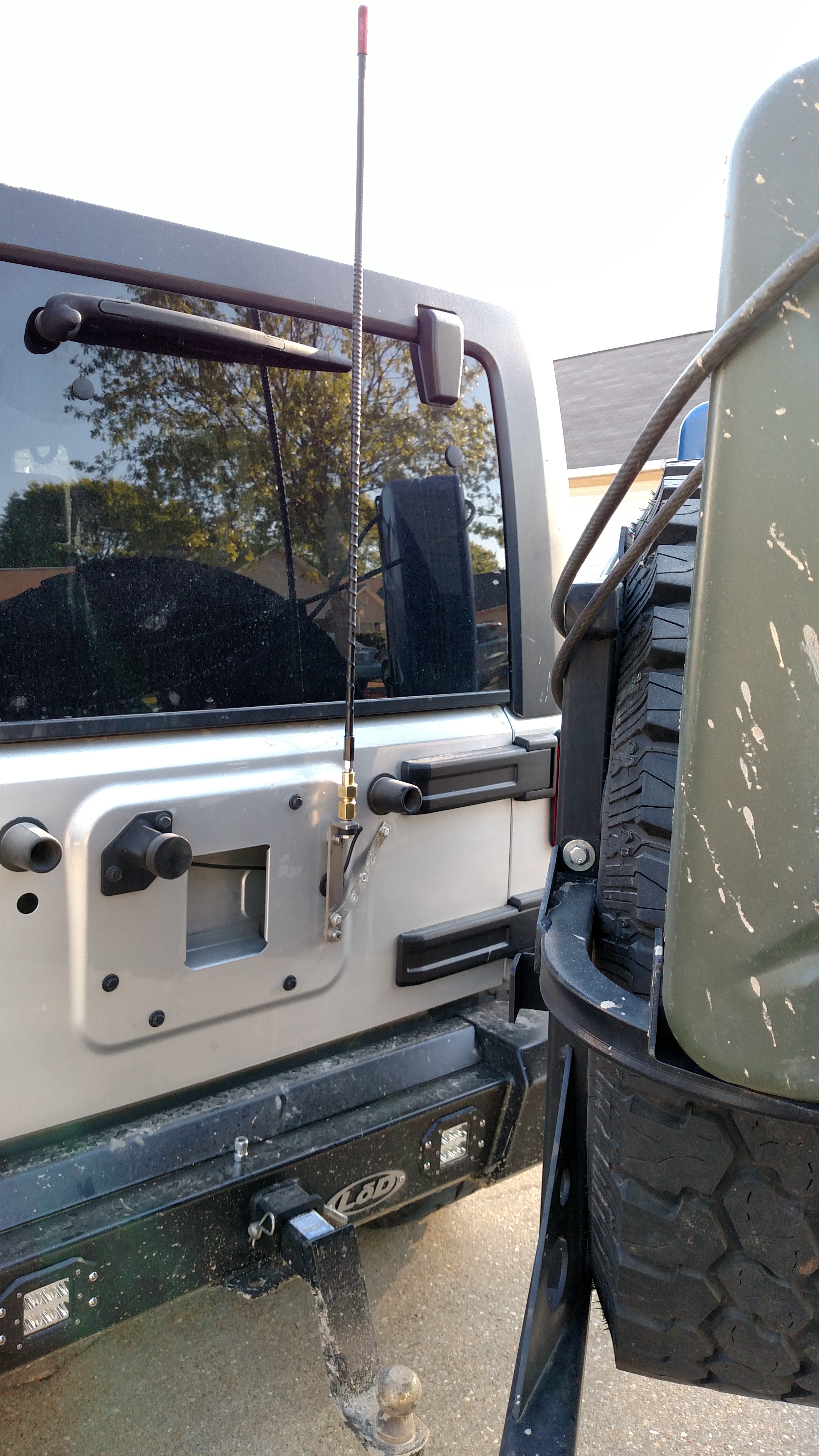

Breedlove #203, 3' Firestik:

Click image for larger version

Name:	CB Mount 2.jpg
Views:	425
Size:	4.27 MB
ID:	670195

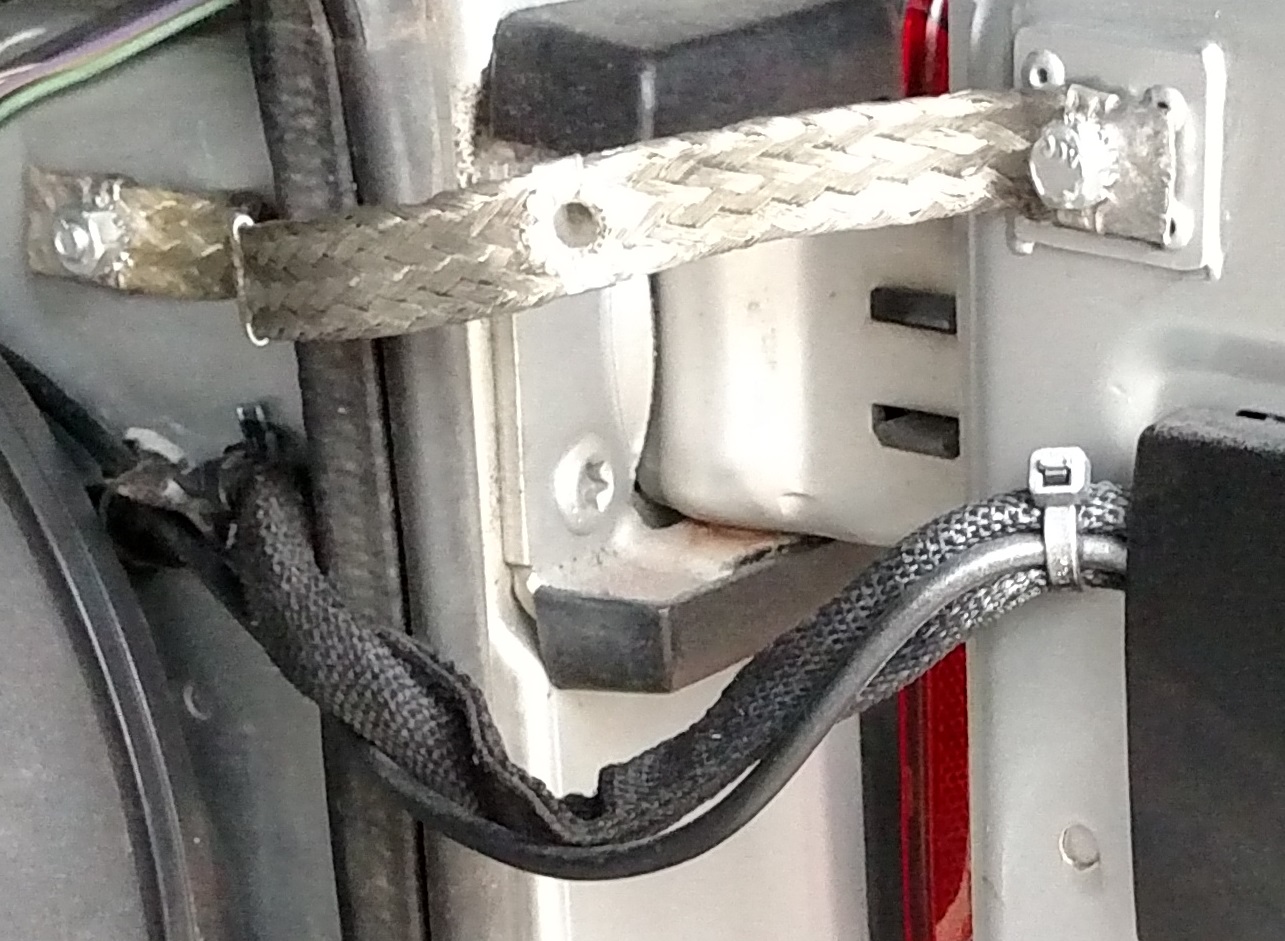

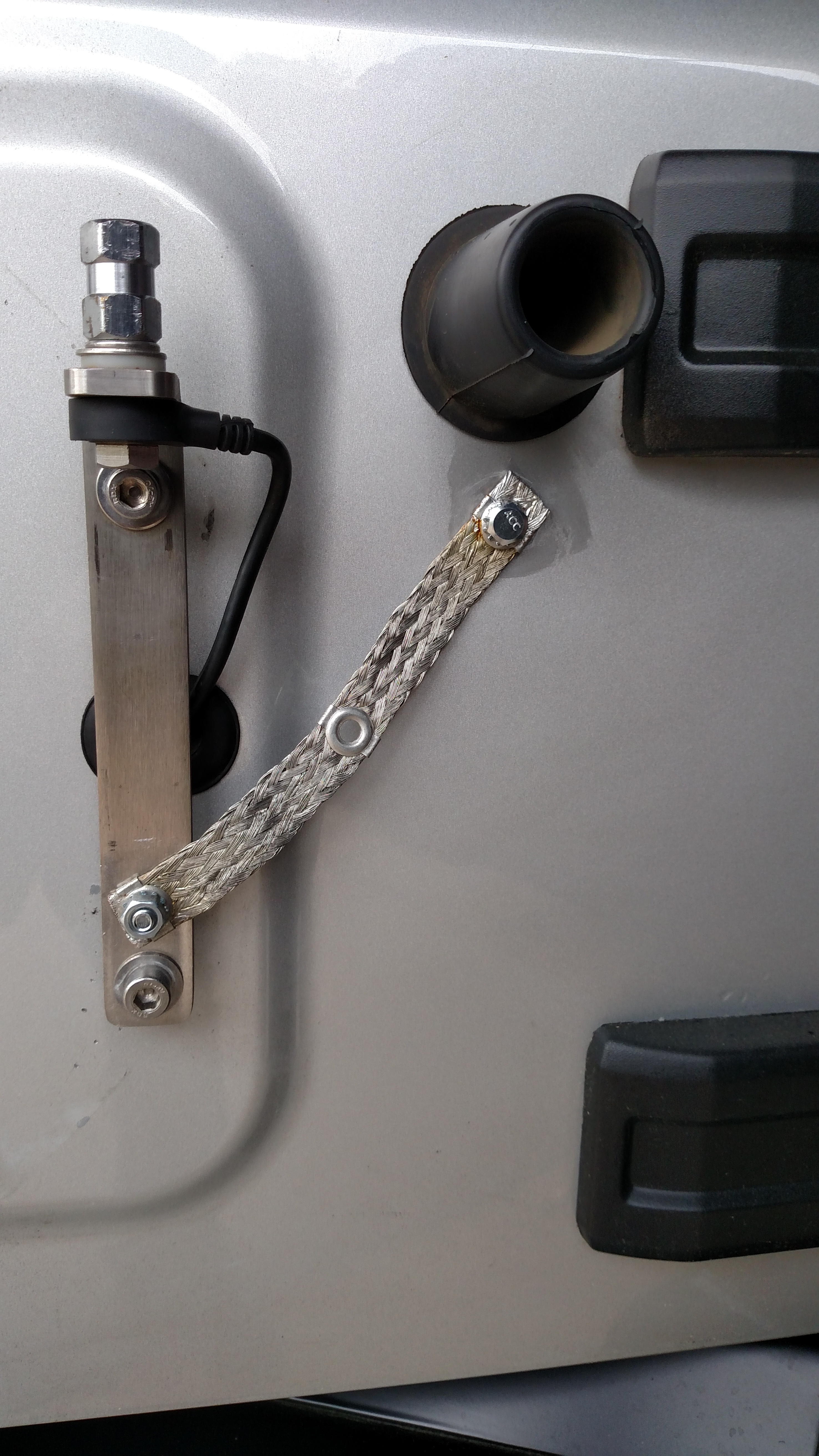

Bonding with Electric Motion Company EM2081 (before the Breedlove #203). Ground straps are bolted to nutserts, which are then crimped to steel plates that are riveted to exposed sheet metal (everything subsequently sealed with epoxy and painted with factory paint to prevent corrosion):

Click image for larger version

Name:	IMG_20170403_135303840.jpg
Views:	359
Size:	4.28 MB
ID:	670201 Click image for larger version

Name:	IMG_20170403_140753614.jpg
Views:	301
Size:	458.7 KB
ID:	670202

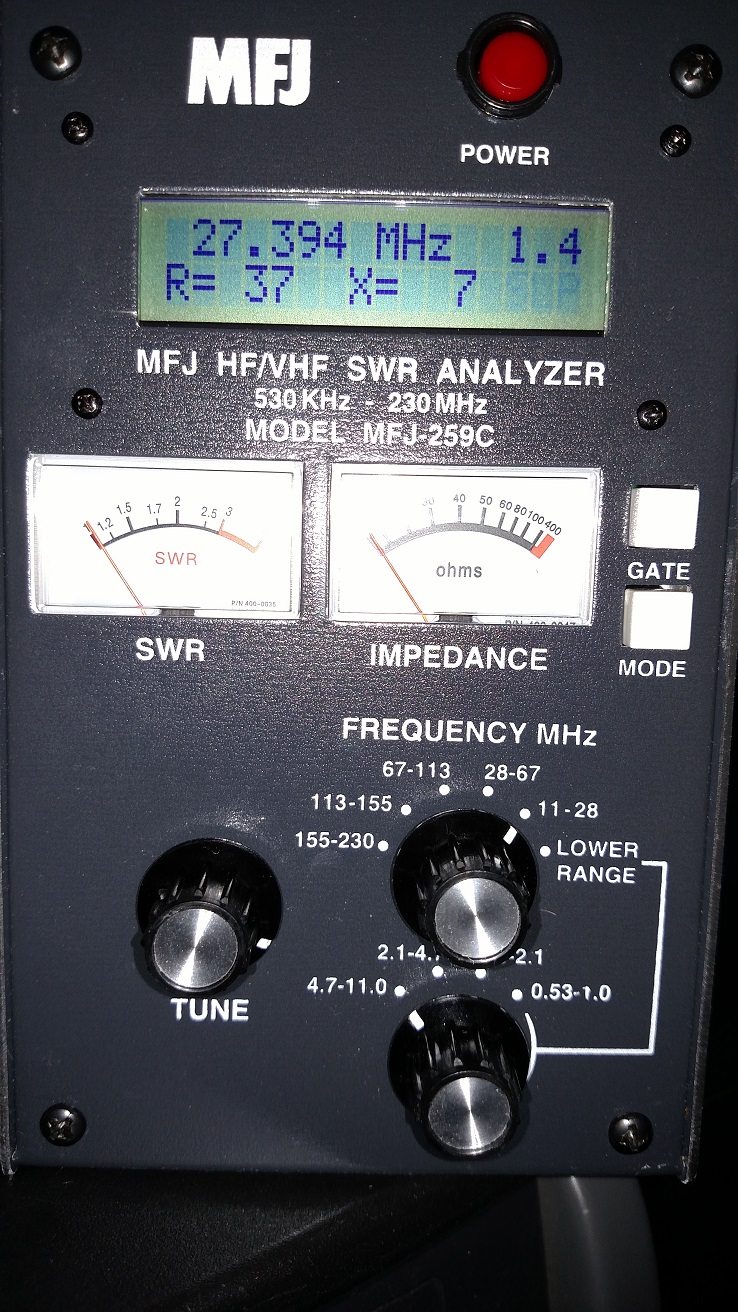

The analyzer on channels 1, 20, and 40:

Click image for larger version

Name:	channel 1.jpg
Views:	282
Size:	518.2 KB
ID:	670197Click image for larger version

Name:	channel 20.jpg
Views:	252
Size:	537.0 KB
ID:	670198Click image for larger version

Name:	channel 40.jpg
Views:	245
Size:	516.8 KB
ID:	670199

Last edited by OnBelay; 04-12-2017 at 06:12 AM.
OnBelay is offline
The following 2 users liked this post by OnBelay:
kg6lvp (11-01-2018), ktm2ride (03-21-2018)
Old 01-31-2018, 09:44 AM
  #302
JK Newbie

Join Date: Jun 2015
Location: Fayetteville, Arkansas
Posts: 11
Likes: 0
Recieved 0 Likes on 0 Posts
Default CB Antenna mount outside spare tire

So, I've tried searching for this without success. I am planning on mounting my cb antenna to a custom bracket outside of the spare tire. It would be similar, in concept, to the Vector Offroad Exo Rack, linked below. Will this help solve some of the issues of mounting the antenna at the rear of the vehicle? My CB is a midland 75-822 if that matters
https://vectoroffroad.com/products/exo-rack
GMGolden is offline
Old 02-01-2018, 07:27 AM
  #303
JK Enthusiast
Thread Starter

realjeep's Avatar

Join Date: Jun 2009
Location: Tijeras, NM
Posts: 195
Likes: 0
Recieved 3 Likes on 2 Posts
Default

If the antenna is mounted on the outside then yes because at least one side of the antenna is exposed. The issue is when its mounted between two plates of metal, that is bad because the signal will bounce between the metal instead of away from the antenna.

Hope that helps
realjeep is offline
Old 08-14-2018, 05:00 PM
  #304
JK Newbie

Harpblower's Avatar

Join Date: Mar 2014
Location: Santa Clarita, CA
Posts: 3
Likes: 0
Recieved 0 Likes on 0 Posts
Default Is my placement ok?




I have a comet sbb-5nmo antenna hooked to comet cp-5nmo clamp mount and a kenwoo d710ga radio. I mounted it on the back lip of my hood. So far I've had no complaints on reception. I'm just wondering if this was a good choice?

Harpblower is offline
Old 08-14-2018, 06:10 PM
  #305
JK Enthusiast

Join Date: Dec 2014
Location: Wasilla
Posts: 240
Recieved 2 Likes on 2 Posts
Default

Does anybody have the MORryde side plate for Rotopax or Rubican? It is drilled for a CB/HAM antenna. Once I install the radio thats where Im going to try the antenna.

akpostal is offline
Old 10-11-2018, 05:16 AM
  #306
JK Newbie

Join Date: Oct 2013
Location: Manassas, VA
Posts: 3
Likes: 0
Recieved 0 Likes on 0 Posts
Default

How would mounting the CB antenna to front bumper work? I have tabs on the bull bar for lights that I do not use. Considering putting a whip style antenna there, as it would not interfere with vision.
GQJEEP is offline
Old 10-11-2018, 07:34 AM
  #307
JK Enthusiast

Join Date: Dec 2014
Location: Wasilla
Posts: 240
Recieved 2 Likes on 2 Posts
Default

Originally Posted by akpostal View Post
Does anybody have the MORryde side plate for Rotopax or Rubican? It is drilled for a CB/HAM antenna. Once I install the radio thats where Im going to try the antenna.

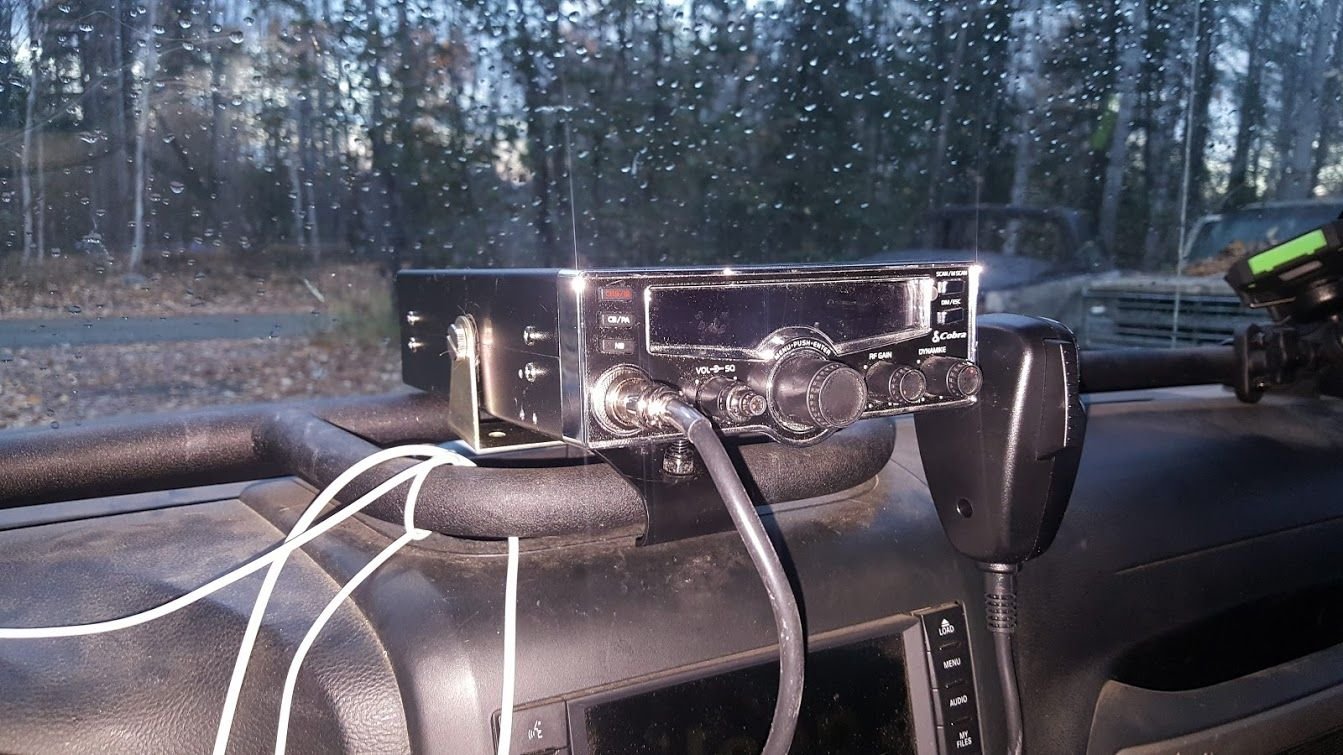

This is how I mounted my antenna, 102" whip, old corroded barrel spring and only about 6' for coax w/ Fire Ring. Im not happy with the SWR a 2:1 so I will likely redo the coax with a longer piece and add some extra grounding as well as new spring. Radio is a NIB Cobra 25 LX mounted to Vector Offroad Dock, Ive got a 20 year old Cobra 29 LTD thats always worked well in the past that I will also likely swap in place of the newer radio, my other alternative is a Galaxy Plus+33.

Havent had a chance to really test it or shoot for distance yet. Most off road clubs are HAM, VHF, and FRS radios around here but I installed stuff I had on hand or readily available (cheap).


akpostal is offline
