High SWR reading (5)

Thread Tools

Old 04-02-2014, 07:36 AM
  #11
JK Super Freak

arjeeper's Avatar

Join Date: Apr 2012
Location: Bella Vista, AR
Posts: 1,475
Likes: 0
Received 3 Likes on 2 Posts
Default
Originally Posted by JK7007
Could i have the antenna out together wrong? I have the plastic washer then a metal washer then bracket then metal washer then the spring?
Can you take a more detailed picture of this?
arjeeper is offline
Reply Like
Old 04-02-2014, 07:38 AM
  #12
JK Jedi

TURTLECON's Avatar

Join Date: Oct 2010
Location: REDONDO BEACH, CA
Posts: 5,192
Likes: 0
Received 3 Likes on 3 Posts
Default
Originally Posted by arjeeper
Though there is a common "rule" that coax should be 18' for a CB, that "rule" only came about due to so many poorly grounded systems. In a well-grounded system, the coax length is irrelevant as it's not part of the antenna. Only when the coax is acting as the counterpoise (bad, but common) would the length matter.
Agreed. However with so much extra, sometimes people make the mistake of coiling the excess (which cause interference) instead of stuffing it.
TURTLECON is offline
Reply Like
Old 04-02-2014, 07:39 AM
  #13
JK Super Freak

arjeeper's Avatar

Join Date: Apr 2012
Location: Bella Vista, AR
Posts: 1,475
Likes: 0
Received 3 Likes on 2 Posts
Default
Originally Posted by JK-FREAK
CB ground is different than electrical ground. You shouldn't need to scrape any paint so long as there's a decent connection between the antenna mount bracket and the frame of the vehicle (not the body).
You're right that an electrical and RF ground are different. Although using "star washers" against the body to dig in will work as well, scraping some paint should ensure both an electrical and RF connection. (Electrical not really necessary here)

And the body should be well bonded to the frame as it is, allowing a connection to the body to work fine.
arjeeper is offline
Reply Like
Old 04-02-2014, 07:40 AM
  #14
JK Super Freak

arjeeper's Avatar

Join Date: Apr 2012
Location: Bella Vista, AR
Posts: 1,475
Likes: 0
Received 3 Likes on 2 Posts
Default
Originally Posted by JK-FREAK
Agreed. However with so much extra, sometimes people make the mistake of coiling the excess (which cause interference) instead of stuffing it.
True. Could end up forming an inadvertent choke.
arjeeper is offline
Reply Like
Old 04-02-2014, 03:50 PM
  #15
JK Enthusiast
Thread Starter

FlexyJK's Avatar

Join Date: Mar 2012
Location: Escondido, California
Posts: 466
Likes: 0
Received 0 Likes on 0 Posts
Default
So i stopped 4 wheel parts and picked up a new cable and stud. Re ran the cable with no coiling. And now the reading is even higher. I took a reg wire and tried grounding it to the frame and nothing.

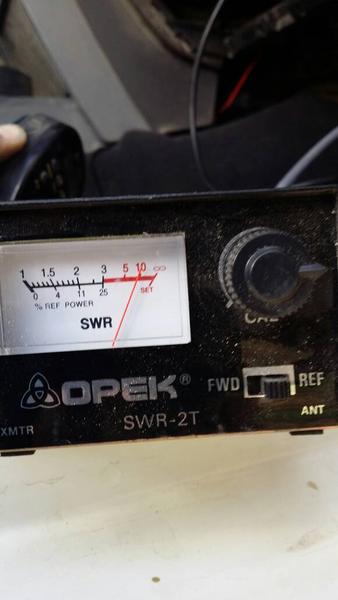

Click image for larger version Name: uploadfromtaptalk1396482632470.jpg Views: 70 Size: 21.4 KB ID: 542844

Sent from my SM-N900V using Tapatalk
FlexyJK is offline
Reply Like
Old 04-02-2014, 05:34 PM
  #16
JK Enthusiast

Rbzak's Avatar

Join Date: Apr 2012
Location: Little rock, Arkansas
Posts: 316
Likes: 0
Received 0 Likes on 0 Posts
Default
Did u check to see if ur antanna had a short in it?

Sent from my SAMSUNG-SGH-I747 using Tapatalk
Rbzak is offline
Reply Like
Old 04-02-2014, 05:44 PM
  #17
JK Enthusiast
Thread Starter

FlexyJK's Avatar

Join Date: Mar 2012
Location: Escondido, California
Posts: 466
Likes: 0
Received 0 Likes on 0 Posts
Default
Originally Posted by Rbzak
Did u check to see if ur antanna had a short in it?

Sent from my SAMSUNG-SGH-I747 using Tapatalk
I didn't. How would I do that?

Sent from my SM-N900V using Tapatalk
FlexyJK is offline
Reply Like
Old 04-02-2014, 06:38 PM
  #18
JK Enthusiast
Thread Starter

FlexyJK's Avatar

Join Date: Mar 2012
Location: Escondido, California
Posts: 466
Likes: 0
Received 0 Likes on 0 Posts
Default
Ok so i took of the mount a ground off the paint and the metal plate had some sort of coating on it so i removed it all to bare metal. Then i changed my antenna to a different non tunable one and got channel 1 to read right below 1.5 but channel 40 was closer to 3. Any ideas for this now. Thanks to all who are helping by the way.

Sent from my SM-N900V using Tapatalk
FlexyJK is offline
Reply Like
Old 04-02-2014, 06:53 PM
  #19
JK Super Freak

arjeeper's Avatar

Join Date: Apr 2012
Location: Bella Vista, AR
Posts: 1,475
Likes: 0
Received 3 Likes on 2 Posts
Default
Originally Posted by JK7007
Ok so i took of the mount a ground off the paint and the metal plate had some sort of coating on it so i removed it all to bare metal. Then i changed my antenna to a different non tunable one and got channel 1 to read right below 1.5 but channel 40 was closer to 3. Any ideas for this now. Thanks to all who are helping by the way. Sent from my SM-N900V using Tapatalk
There we go! A 3:1 SWR isn't too bad on the far end of the channelized spectrum. I'd go with it.
arjeeper is offline
Reply Like
Old 04-02-2014, 06:55 PM
  #20
JK Enthusiast
Thread Starter

FlexyJK's Avatar

Join Date: Mar 2012
Location: Escondido, California
Posts: 466
Likes: 0
Received 0 Likes on 0 Posts
Default
Sweet. I read that I might have a long antenna but I got a 4 ft and if I go with a 3 it won't clear my soft top

Sent from my SM-N900V using Tapatalk
FlexyJK is offline
Reply Like
