Additional interior LED lights

Reply Subscribe

Thread Tools

Apr 8, 2015 | 02:59 PM

#91

conquerfool

JK Enthusiast

Joined: Jul 2013

Posts: 122

Likes: 0

From: South Coast, Massachusetts

Quote:

Originally Posted by 14Sport

Sounds like a 3 way switch would work best for you. This schematic was for footwell lights, one on each side, but you could just do one of them. The switch will allow you to either have it come on with the dome automatically, or never have it come on, or have it come on manually.

Well thats awesome! Thanks for the help. Is there wiring in the tailgate that I could splice into or would I have to run something all the way to the dome?

Apr 8, 2015 | 03:05 PM

#92

14Sport

JK Junkie

Joined: Nov 2013

Posts: 3,703

Likes: 8

From: The Dirty South

Quote:

Originally Posted by conquerfool

Well thats awesome! Thanks for the help. Is there wiring in the tailgate that I could splice into or would I have to run something all the way to the dome?

I believe from reading, but I haven't done it, that there is a yellow/white that runs down the passenger side that is the dome circuit. If not, you will have to run it to the dome. If you want it to come on with the dome it has to be wired to the dome circuit.

For the other 12v feed, if you have a rear cig lighter you may be able to just tap into that. I don't know if it is switched or unswitched since I have a basic Jeep. But if you do have the rear cig lighter, it is switched if the cover has a picture of a key on it and unswitched if the picture is a battery.

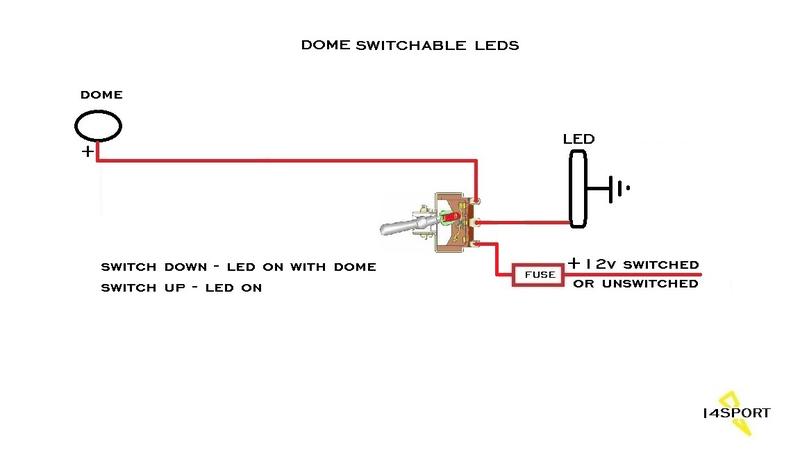

Edit: I redrew it for you.

Attached Thumbnails

Click image for larger version

Name: Dome 3 Way Switchable LED.jpg
Views: 681
Size: 17.3 KB
ID: 605451

Last edited by 14Sport; Apr 8, 2015 at 03:37 PM.

Dec 15, 2018 | 07:29 AM

#93

humpaco

JK Newbie

Joined: Feb 2018

Posts: 3

Likes: 0

From: New Jersey

Quote:

Originally Posted by Grand Umpah

I wired them into the dome light circuitry, both left and right, and they come on when the door is opened and fade out when the dome light goes out. The left light also comes on when you hit the left dome light button and the same for the right side. It's a big improvement because it puts the light where you need it.

I love the idea of two map lights facing forward over the driver's and passenger's shoulders. I like even more the functionality of the left and right lights coming on when the left/right dome buttons are depressed. Anyone know how to wire that in? I see three wires going into the housing (unswitched power, switched power and ground) but get lost in the routing within the dome light housing itself. I'm guessing soldering to the leads that connect to leads on the bulbs?
