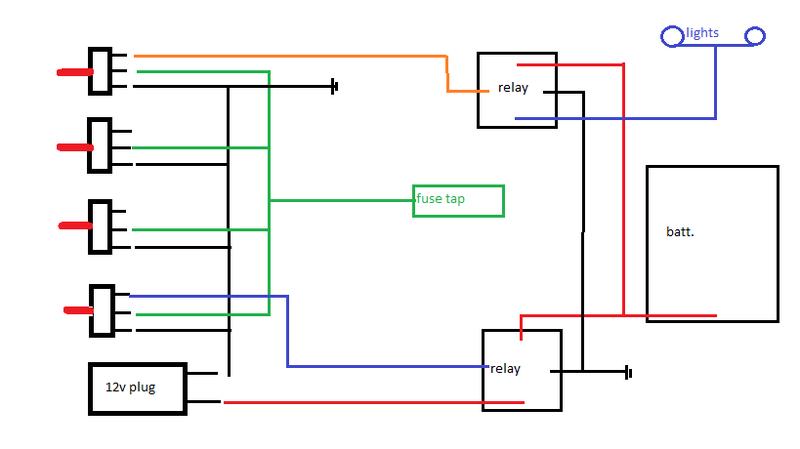

I am total lost here!! trying to hook up switch box. I get power to lights , but no power from fuse tap to light switches and no power to 12v outlet here is a diagram to how I wired it. I'm about to pull what hair i have left out.



Nobody



You can trouble shoot everything with a 12vt test light.



I did that.....get power to relay to 12v plug but not out...and don't get no power from power tap.



Where is the fuse tap plugged in, is there power at the tap. Is the 12v plug the cigarette lighter that has switched power?



Use a test light and check from battery out. Eventually you'll find where you are not getting the transfer of power



I tried M8, M7 both the heated seat spots and they had no power from them so I went to a spot that was in use M4 I think, it was acc, ingn. spot and still wasn't getting power out of the tap. I have Light force lights and ordered harness with lights and I noticed it wasn't a harness from light force. It looks like they (who I purchased lights from) had made their own harness and still charged the $60. But anyways I noticed the ground wire from the relay is spliced into hot wire to battery. Is that not right and be causing a ground issue? Oh and yes I want to have the 12v plug on a switch.



Refer to answer #4



I used... (cannot tell you what fuse) but the fuse that controls the ACC plug on the drivers side that is keyed. i tapped into that fuse...

From what you said it sounds like your not getting power from the fuse tap or a Relay is not wired right?

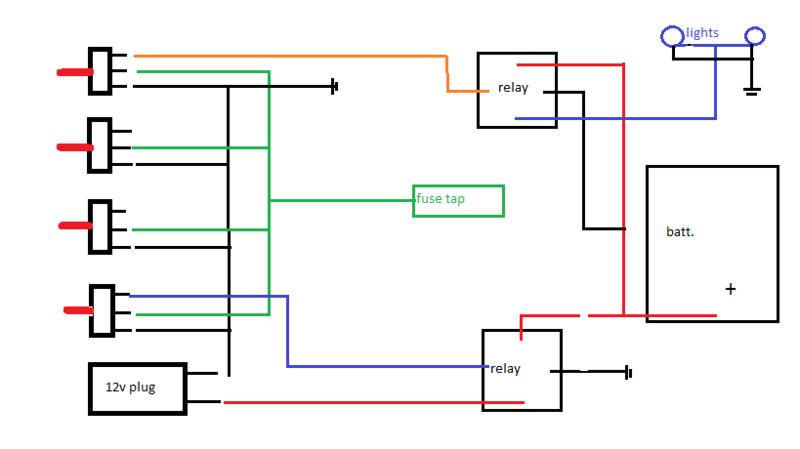

here is an updated wiring diagram of how I have it wired up. Does everthing look correct in that aspect?
