Can anyone help me identify the part number I need for the wiring harness in this diagram?

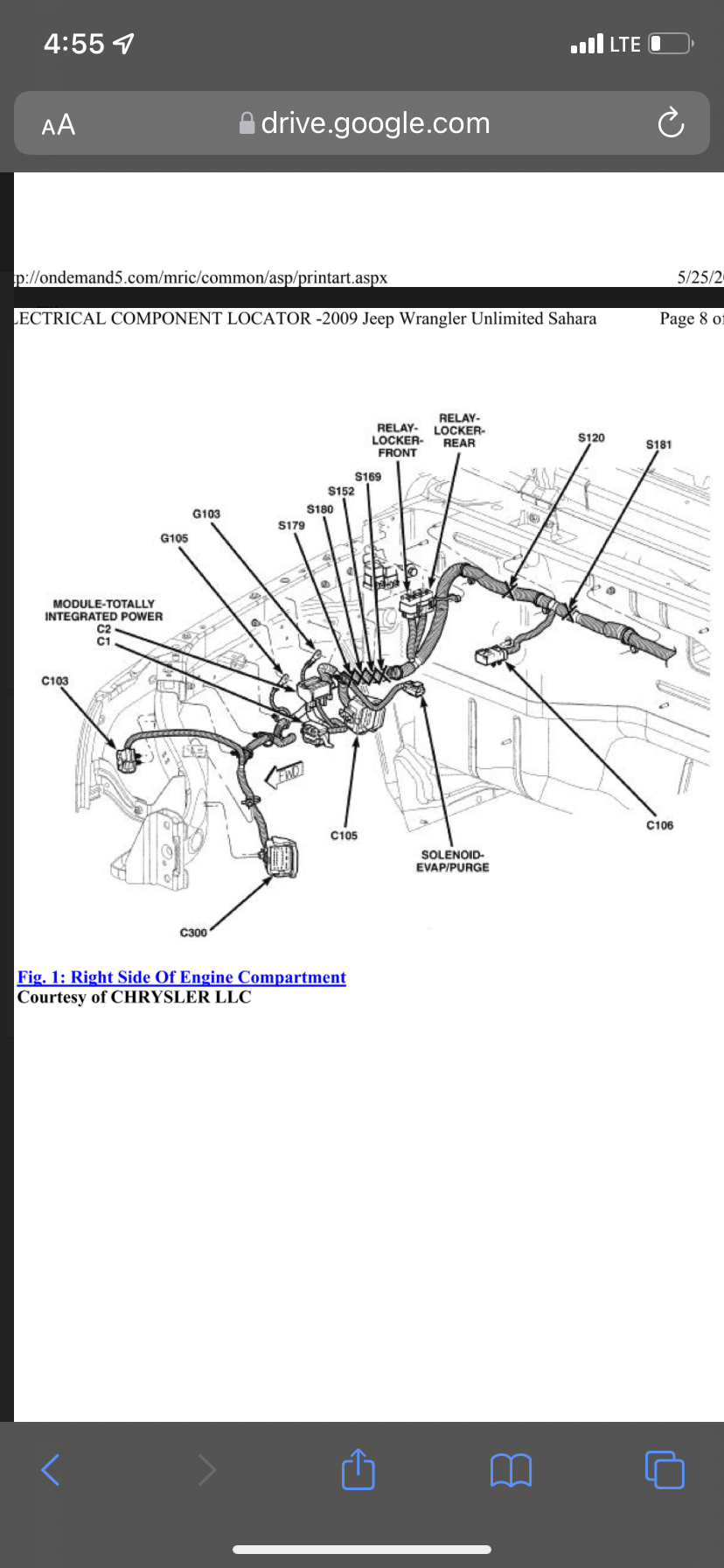

I’m replacing a few burned wiring harnesses, and I need this one but can’t find a name or part number for it. I found one called a “dash wiring” harness, part number 68042607ab, but I can’t get anyone from mopar to verify that this is the part I need. The attached pictures are from a wiring diagram i found online, and they don’t exactly match the ones on mopar.
my jeep is a 2009 x model, 6-speed






Here is a picture of the harness I’m looking for. I cut it in half so I could see everything under it.
It’s the main harness that runs across the back of the engine bay and then goes towards the front toward the TIPM on the right side and the powertrain control module.



If anyone can help me out I would greatly appreciate it. I’m willing to buy a service repair manual or anything else I might need, but if someone could point me in the right direction I would really appreciate it.



Isn't that the harness that goes to the C100 plug? Which is shown on the left side diagram you have there. You obviously bought the Jeep I see. What you should do is go order it, remove the old one and take it down to the dealer to compare when it comes in. Kentucky area with bigger states around you should have wreckers or 4x4 shops nearby that can help. Too bad as a guy here had a complete wiring harness from a 2008 Sahara but when he moved shop he got rid of it.



Yes it is the one that plugs into the c100. I have figured out that it’s definitely the “dash wiring harness,” but on mopar there are multiple part #’s that all match my jeep.

For example, mopar website says both of these “dash wiring” harnesses fit, but prices vary by a lot.
68042610– $268
68042612– $466

i found the cheaper one on ebay so I think I’m gonna try it and see how it works.

Just to help anyone who might be looking for these same harnesses, there are 4 harnesses that all connect in the back of the engine bay (all of which I have to replace). They are called the “dash wiring,” “engine wiring,” “injector wiring,” and “battery wiring.”
I have taken off the intake plenum, air box, battery, battery and TIPM, and that’s just to access the right side. The Left side looks a little more complicated, but hopefully I can figure it out.

i have called mopar and a dealership, but by far the best source of information has been google and youtube haha.
