Default Wiring a winch

How would you guys run the wires from your winch to your battery? Is there any special way? Pictures would be great. Thanks.
Reply
Old Dec 30, 2010 | 05:08 PM
  #2
Rubicon John's Avatar
JK Freak

Joined: Oct 2008
Posts: 545
Likes: 1
From: Lehigh Valley, PA
Default

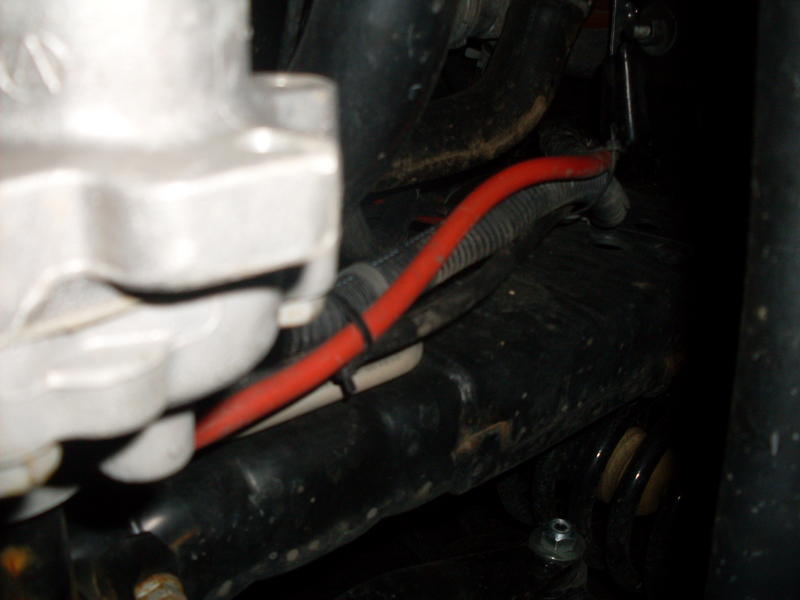

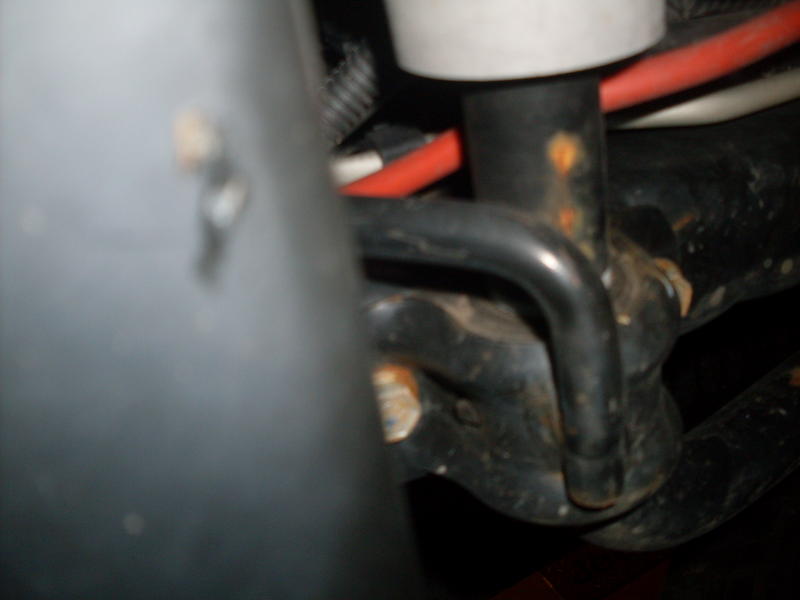

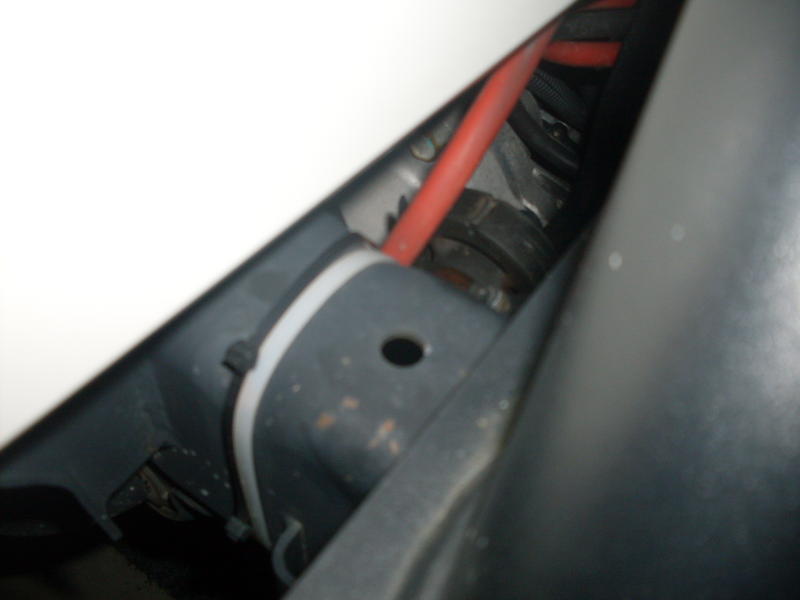

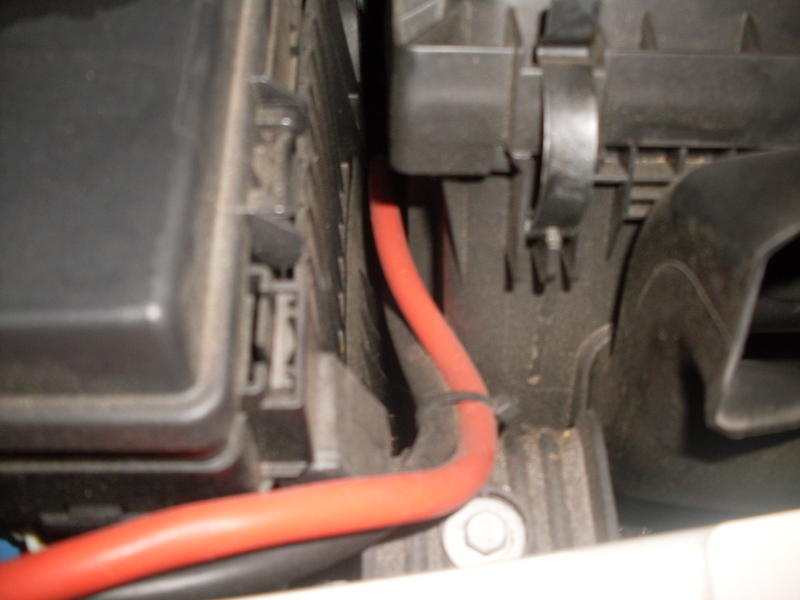

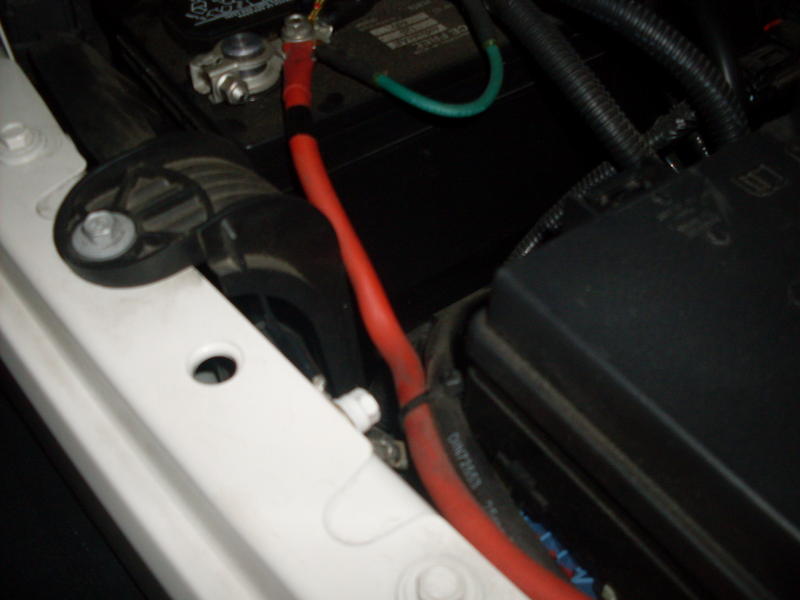

Here's how I routed and hooked up my winch. I ran it under the grille, along the inside (passenger side) frame rail keeping the wires away from anything sharp and moving. In the one pic you can see I then routed it up between the fuse box and air box, then along to the battery.


Click image for larger version

Name:	Winch 5.jpg
Views:	130
Size:	33.9 KB
ID:	113797Click image for larger version

Name:	Winch 3.jpg
Views:	130
Size:	35.6 KB
ID:	113798Click image for larger version

Name:	Winch 6.jpg
Views:	117
Size:	25.7 KB
ID:	113799Click image for larger version

Name:	Winch 4.jpg
Views:	126
Size:	27.8 KB
ID:	113800Click image for larger version

Name:	Winch 2.jpg
Views:	134
Size:	40.5 KB
ID:	113801
