What was done to your JK this week?

Reply Subscribe

Thread Tools

Sep 20, 2014 | 04:10 AM

#41271

Stephens2r

JK Enthusiast

Joined: Oct 2008

Posts: 273

Likes: 0

From: Roswell, GA

Quote:

Originally Posted by Tripletsi

Your have routed your brake lines incorrectly. They should be located behind the front shock to allow for flex during axle articulation. Like so:

Attachment 576327

Note how the zip ties are attached to the shock. It's two separate zip ties to allow the brake line to slip in and out.

According to AEV, proper brake line orientation is between the shock and the spring. You are correct about using two zip ties so that the brake line stays free while flexing.

Sep 20, 2014 | 04:20 AM

#41272

JLsJK

JK Freak

Joined: Nov 2011

Posts: 802

Likes: 2

From: Sevierville, TN

From my understanding, if you run them between the shock and spring you need zip ties. If you run them behind the shock, the preferred method, you do not need zip ties.

Sep 20, 2014 | 04:35 AM

#41273

GreenJK07

JK Junkie

Joined: Jan 2011

Posts: 3,817

Likes: 4

From: Covington, LA

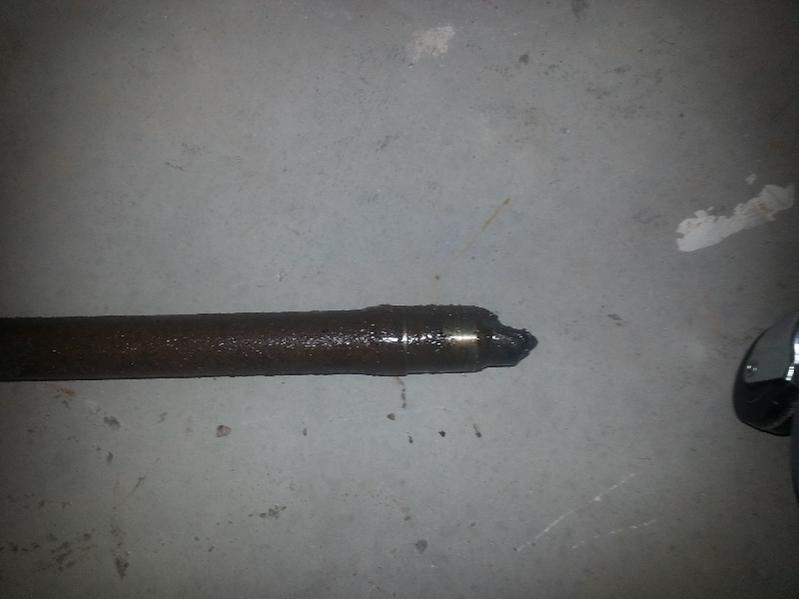

Got the broken shaft out. Now to get the splines out and in with the new:

Attached Thumbnails

Click image for larger version

Name: ForumRunner_20140920_073404.jpg
Views: 291
Size: 29.9 KB
ID: 576340

Sep 20, 2014 | 07:36 AM

#41274

Chief_Airborne

JK Enthusiast

Joined: Sep 2012

Posts: 384

Likes: 0

From: NOVA

Installed a set of Inspired Engineering's cube's (spots) on the windshield and their 14" light bar (flood and spots) on my front bumper. Definitely diggin' them!

Last edited by Chief_Airborne; Sep 20, 2014 at 12:21 PM.

Sep 20, 2014 | 08:11 AM

#41275

Bpash2096

JK Newbie

Joined: Nov 2012

Posts: 37

Likes: 0

From: Tucson, az

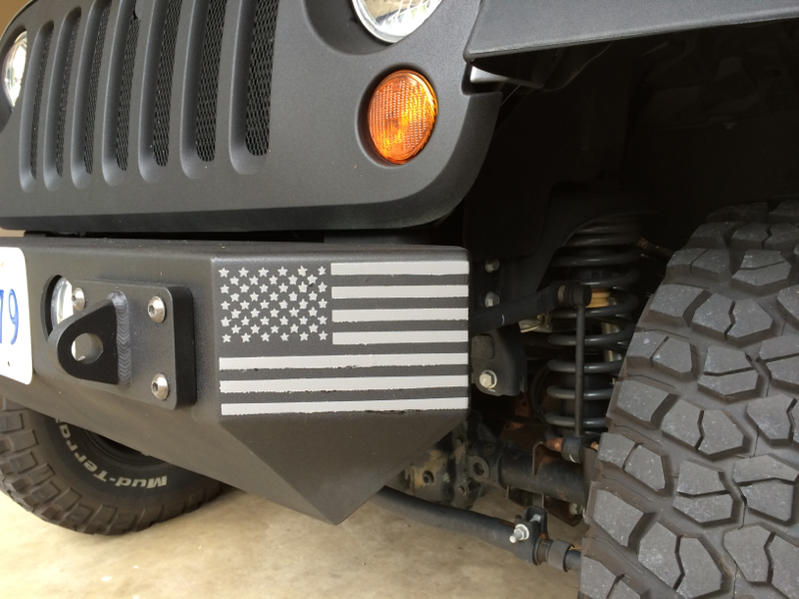

Installed my new bumper.

Attached Thumbnails

Click image for larger version

Name: image-50364342.jpg
Views: 284
Size: 91.7 KB
ID: 576373

Click image for larger version

Name: image-3004194399.jpg
Views: 299
Size: 64.8 KB
ID: 576374

Sep 20, 2014 | 11:20 AM

#41276

GreenJK07

JK Junkie

Joined: Jan 2011

Posts: 3,817

Likes: 4

From: Covington, LA

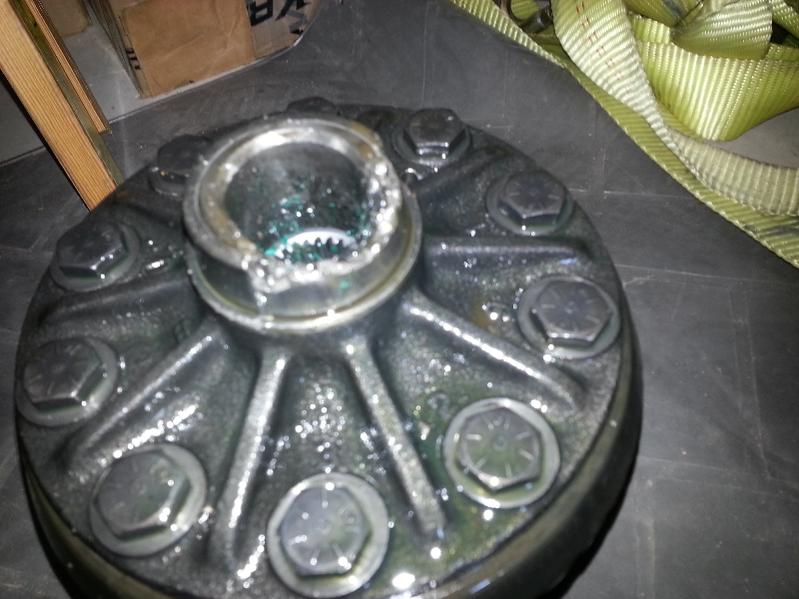

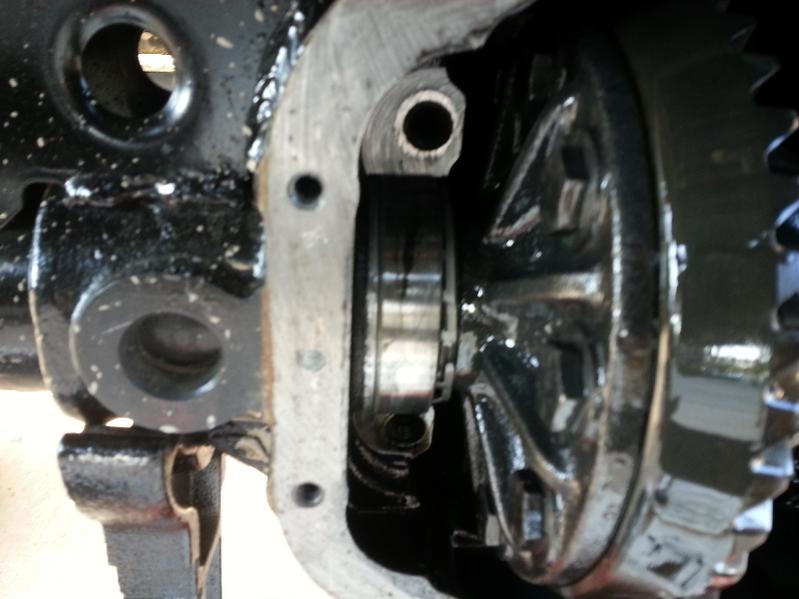

Got my broken axle shaft out and found this.... time for a new carrier assembly...

Attached Thumbnails

Click image for larger version

Name: ForumRunner_20140920_142023.jpg
Views: 284
Size: 63.4 KB
ID: 576410

Click image for larger version

Name: ForumRunner_20140920_142036.jpg
Views: 273
Size: 50.6 KB
ID: 576411

Click image for larger version

Name: ForumRunner_20140920_142045.jpg
Views: 268
Size: 29.9 KB
ID: 576412

Sep 20, 2014 | 11:29 AM

#41277

KevinMac

JK Enthusiast

Joined: Jun 2013

Posts: 422

Likes: 24

From: The D, MI

- Oil change
- Removed stock fog lights (JW Speaker fogs on order)
- Bed lined inside of the freedom panels (looks way better than white!)

Sep 20, 2014 | 11:59 AM

#41278

Rub_My_Icon

JK Newbie

Joined: Aug 2014

Posts: 56

Likes: 1

From: Never land

Quote:

Originally Posted by KevinMac

- Oil change
- Removed stock fog lights (JW Speaker fogs on order)
- Bed lined inside of the freedom panels (looks way better than white!)

Nice i been wanting to do this. Is that Rustoleum spray-on bed coating?

Sep 20, 2014 | 12:18 PM

#41279

KevinMac

JK Enthusiast

Joined: Jun 2013

Posts: 422

Likes: 24

From: The D, MI

Quote:

Originally Posted by Rub_My_Icon

Nice i been wanting to do this. Is that Rustoleum spray-on bed coating?

Dupli-Color, I got it at O'Reilys. Took about 1.5 cans to do the freedom panels. Next time the rest of the roof is off, I will definitely be doing that as well.
