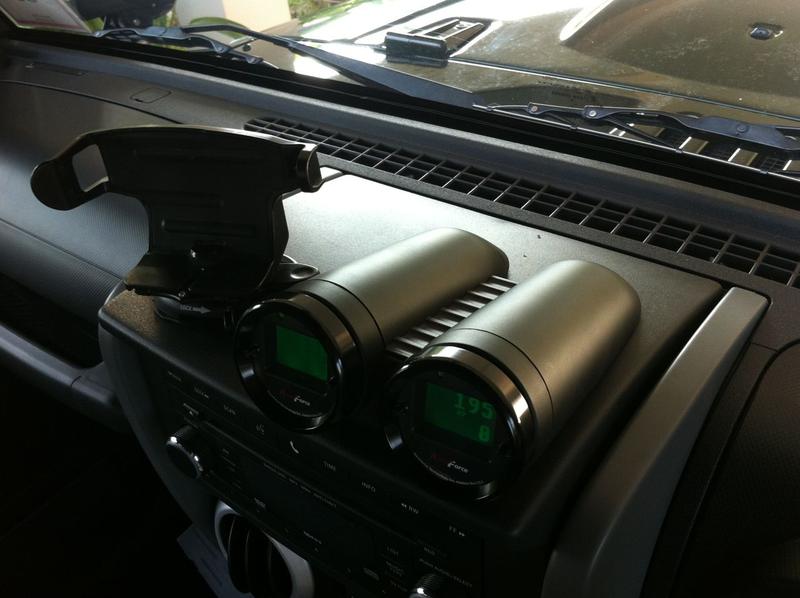

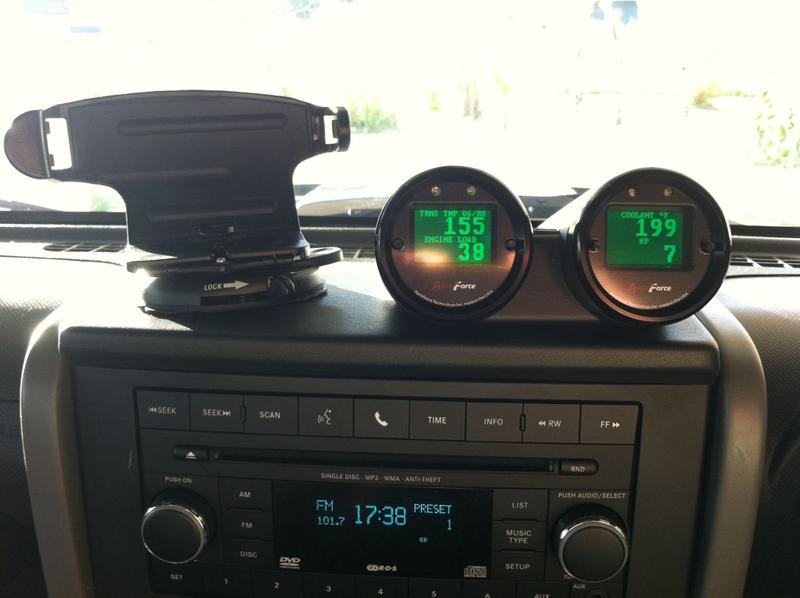

Aeroforcetech interceptor oil pressure gauge installation
Hi all,
Just installed dual Aeroforcetech interceptor gauges, very nice and I am loving the fact that I can better monitor my jeeps performance now. I also bought the oil pressure & temperature kits, including the 5V boards etc.
Any thoughts or pictures where people put the oil pressure and temperature sensors? I bought the 3/8" fittings, any spare connections I can use on my engine?
With appreciation.
Mark
Just installed dual Aeroforcetech interceptor gauges, very nice and I am loving the fact that I can better monitor my jeeps performance now. I also bought the oil pressure & temperature kits, including the 5V boards etc.
Any thoughts or pictures where people put the oil pressure and temperature sensors? I bought the 3/8" fittings, any spare connections I can use on my engine?
With appreciation.
Mark
05-07-2011, 03:45 AM
#2
JK Freak
Join Date: Aug 2010
Location: Miami, Fl
Posts: 722
Likes: 0
Received 0 Likes
on
0 Posts
That looks good
Another member didi this for location -
Another member didi this for location -
I took a different approach when installing my gauge. I wanted to mount it somewhere I could see easily and somewhere I could reach easily. I also wanted to mount it somewhere where I didn't have to replace the dash if I decided not to keep it. My solution was to give up my driver side tweeter. I really can't tell the difference with it not being there. Here are a few pics to see what I did. I just made me a line where a wanted to cut and then used my Dremel.
Last edited by Tuto; 05-07-2011 at 03:48 AM.
05-07-2011, 03:09 PM
#3
JK Freak
Thread Starter
Join Date: Nov 2010
Location: Brunei - Expat
Posts: 528
Likes: 0
Received 0 Likes
on
0 Posts
Placement of oil pressure gauge on engine
Hi, nice location as well but as I just have upgraded my sound system, including the tweeters...........
Any thoughts on where i can put the oil pressure sensor on the engine?
Any thoughts on where i can put the oil pressure sensor on the engine?
05-08-2011, 04:17 AM
#4
JK Super Freak
Someone used a sandwhich plate type adaptor that goes in-between your oil filter and block but I don't remember the name of it or where it came from. Looked like a really easy install.
05-09-2011, 05:50 AM
#5
JK Freak
Thread Starter
Join Date: Nov 2010
Location: Brunei - Expat
Posts: 528
Likes: 0
Received 0 Likes
on
0 Posts
05-11-2011, 03:46 AM
#7
JK Freak
Thread Starter
Join Date: Nov 2010
Location: Brunei - Expat
Posts: 528
Likes: 0
Received 0 Likes
on
0 Posts
Trending Topics
09-30-2011, 04:34 AM
#8
JK Freak
Thread Starter
Join Date: Nov 2010
Location: Brunei - Expat
Posts: 528
Likes: 0
Received 0 Likes
on
0 Posts
Oil pressure and temp gauge
I am about the install my oil temp and pressure sensors using the glow shift adaptor
Quick question, as the sensors are close together I am thinking about using one 5V regulated circuit and connect the black of both sensors and red of both sensors together (less wiring going up). So basically both sensors are on the same 5V power supply (regulated circuit) as well as having the black/grounds connected, will this work? (I don't see why not)
Quick question, as the sensors are close together I am thinking about using one 5V regulated circuit and connect the black of both sensors and red of both sensors together (less wiring going up). So basically both sensors are on the same 5V power supply (regulated circuit) as well as having the black/grounds connected, will this work? (I don't see why not)
09-30-2011, 04:40 PM
#9
JK Enthusiast
Join Date: Aug 2008
Location: Paris, TN
Posts: 194
Likes: 0
Received 0 Likes
on
0 Posts
A friend of mine works for VDO. He told me that the oil pressure gauge (and others) work by measuring resistance from the sending unit and you should use an independent ground wire. That's VDO's take on their gauges not sure about Aeroforcetech. I'm using the sandwich plate with my gauges and it fills the bill nicely.
09-30-2011, 05:05 PM
#10
JK Super Freak
Join Date: Dec 2010
Location: South Carolina
Posts: 1,060
Likes: 0
Received 0 Likes
on
0 Posts
I was under the Jk the other day and noticed what looked like a plug, just above the oil filter where you could put a gauge sensor.
