Alignment help

Reply




Old 06-16-2017, 09:37 AM
  #1
JK Enthusiast
Thread Starter

spmitchell86's Avatar

Join Date: Apr 2016
Posts: 151
Thanks: 0
Thanked 0 Times in 0 Posts
Default Alignment help

Before going to 33's I'm trying to get my alignment straightened out so I don't chew through a new set of tires...
A bit of background my current tires (stock KM) are wearing excessively every other lug on the inside. Most notably on the front left. This is causing a very annoying vibration on the highway that resolves if I slow down or speed up out of the vibration speed range.


I took it to town fair and they adjusted the toe to within spec.but my left front camber and caster are slightly out of spec. See attached*
If my left front caster is low at 3 that means either my upper control arm is too long pushing the top of the axle forward. Or my lower control arm is too short pulling in the bottom of the axle backward. I have stock arms so I feel it's unlikely the upper one has lengthened and more likely the lower one took a rock and has shortened. It doesn't appear grossly different from the right side. (Similar rock rash)


Basically I have two questions: #1 is the above logic correct? And #2 is the best course of action to replace control arms even though they don't look too bad?
Attached Thumbnails Click image for larger version

Name:	IMG_3392.JPG
Views:	65
Size:	1.81 MB
ID:	672509

Last edited by jedg; 06-16-2017 at 07:46 PM.
spmitchell86 is offline
Reply With Quote
Old 06-16-2017, 09:52 AM
  #2
Super Moderator

jedg's Avatar

Join Date: Feb 2012
Location: Bunnlevel, NC
Posts: 2,304
Thanks: 0
Thanked 19 Times in 19 Posts
Default

Bad ball joint(s) in that side could explain it.
jedg is offline
Reply With Quote
Old 06-16-2017, 11:17 AM
  #3
JK Enthusiast
Thread Starter

spmitchell86's Avatar

Join Date: Apr 2016
Posts: 151
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Originally Posted by jedg View Post
Bad ball joint(s) in that side could explain it.
So ball joints can affect both Camber and Caster?
spmitchell86 is offline
Reply With Quote
Old 06-16-2017, 05:31 PM
  #4
JK Jedi Master

ronjenx's Avatar

Join Date: Feb 2008
Location: Maine
Posts: 12,350
Thanks: 0
Thanked 17 Times in 17 Posts
Default

Originally Posted by spmitchell86 View Post
So ball joints can affect both Camber and Caster?
Yes, if they are worn.
Have yours been checked for being worn?
ronjenx is offline
Reply With Quote
Old 06-16-2017, 06:01 PM
  #5
JK Enthusiast
Thread Starter

spmitchell86's Avatar

Join Date: Apr 2016
Posts: 151
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Originally Posted by ronjenx View Post
Yes, if they are worn. Have yours been checked for being worn?
It was into the dealer, they didn't suspect worn ball joints as cause. Also no movement with a prybar under the raised tire.
spmitchell86 is offline
Reply With Quote
Old 06-17-2017, 06:46 AM
  #6
JK Jedi

TheDirtman's Avatar

Join Date: Oct 2010
Location: Southwest Reno, NV
Posts: 4,910
Thanks: 0
Thanked 38 Times in 35 Posts
Default

How often do you rotate your tires? Those and most mud terrains need to be rotated often.
TheDirtman is offline
Reply With Quote
Old 06-17-2017, 07:22 AM
  #7
JK Enthusiast
Thread Starter

spmitchell86's Avatar

Join Date: Apr 2016
Posts: 151
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Originally Posted by TheDirtman View Post
How often do you rotate your tires? Those and most mud terrains need to be rotated often.
Religiously pre 3,000k. 36,000 total now. The tires over all look really good otherwise tons of tread left.
I do have a follow-up question is it possible the Wear is from out of whack toe? (Now corrected) And I'm overthinking the camber/caster?
spmitchell86 is offline
Reply With Quote
Old 06-17-2017, 07:32 AM
  #8
JK Jedi

TheDirtman's Avatar

Join Date: Oct 2010
Location: Southwest Reno, NV
Posts: 4,910
Thanks: 0
Thanked 38 Times in 35 Posts
Default

Toe can be an issues, tire pressure, shocks. Lots of things that can cause tire wear.
TheDirtman is offline
Reply With Quote
Old 06-17-2017, 07:39 AM
  #9
JK Enthusiast
Thread Starter

spmitchell86's Avatar

Join Date: Apr 2016
Posts: 151
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Originally Posted by TheDirtman View Post
Toe can be an issues, tire pressure, shocks. Lots of things that can cause tire wear.

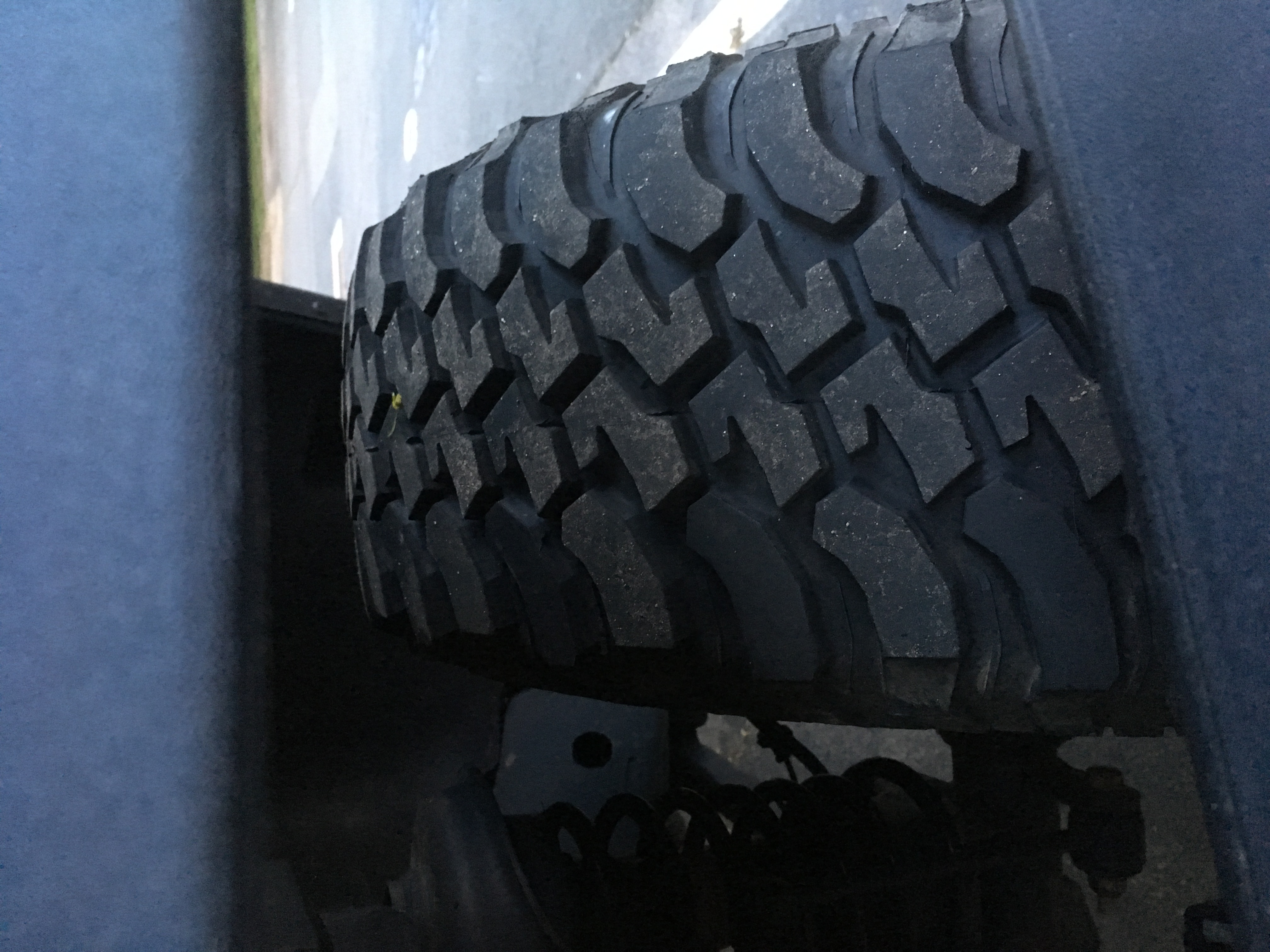

It's localized to every other inner front lug.
Attached Thumbnails Click image for larger version

Name:	IMG_3292.JPG
Views:	44
Size:	1.93 MB
ID:	672542
spmitchell86 is offline
Reply With Quote
Old 06-17-2017, 12:08 PM
  #10
JK Newbie

MarkY3130's Avatar

Join Date: Sep 2011
Location: Denver, Co
Posts: 40
Thanks: 0
Thanked 0 Times in 0 Posts
Default

I haven't personally seen that on a JK, but at work with our big Mack trucks we find that a bad shock is usually what causes the every other lug wear pattern shown in that picture.
