Here are some photos from my ECOMM project. This is for MARS/RACES/ARES application. Relocating from my Jeep Liberty to a Jeep Wrangler Unlimited.

Key Features:

- Full-Time Mobile Whip Antenna (Low Profile for garage entry in winter)
- Coax Switch for Mobile Whip or Antenna Tuner
- Class-3 Fiberglass Mast
- Mast Mounted Multi-Band Dipole 160-30
- Dual battery w/ AGM as Secondary
- APRS
- NVIS (Near Vertical Incident Skywave)
- ALE (Automatic Link Establishment)
- Digital Mode (SignalLink)
- MultiPolarized Super-M Antenna (25MHz – 1300MHz)

Exterior Whip Antenna (Chameleon Antenna CHA V1 3.5-30 MHz)

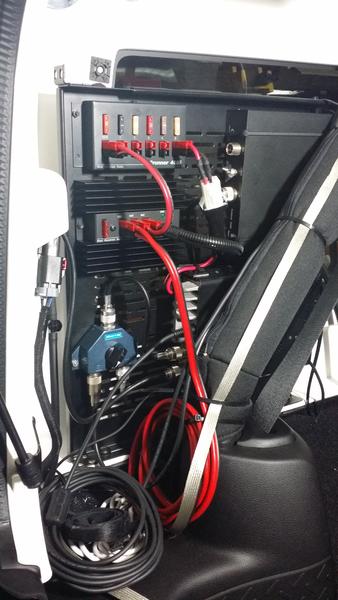

Main Mounting Panel & Inverter

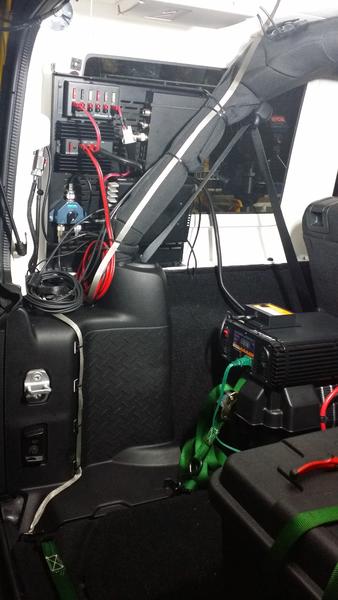

Components:

Yasue FC-857D, LDG YT-100, West Mountain ISOpwr & RIGrunner 4005, Tiny Trak 4, AVMAP Geosat 6

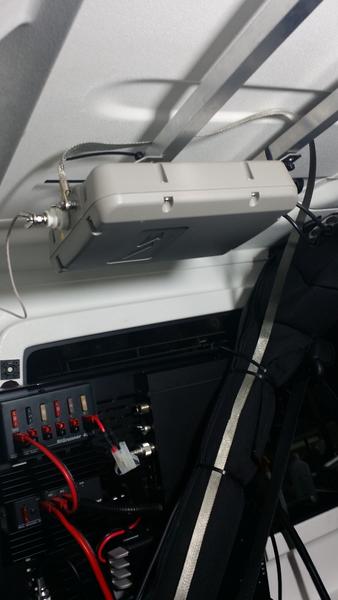

FC-40 Automatic Tuner (Mounted close to feedpoint to minimize wire length)

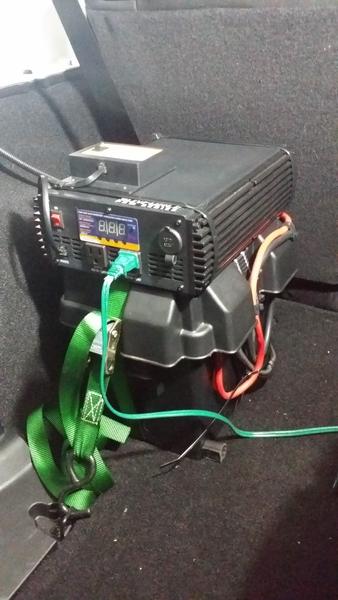

1000 Watt Pure Sinewave Inverter w/AGM Dual Purpose Battery



That's some awesome clean and professional looking work!



Thanks, it is a fun project.

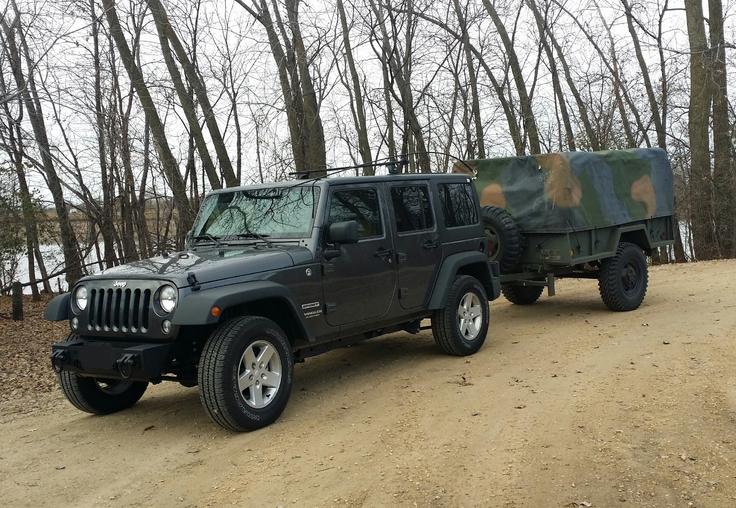

Here is my winter antenna configuration. Issues include:

- Everything gets iced up, covered with snow, and has a coating of road salt.
- When it is -25 degrees F, it is very desirable to park in the garage and antenna system creates clearance issues.
- I avoid going into the cities (like the country better) as much as possible, but when I do the parking ramps has very low clearance.



Wow, that's really something! I'd love to see more pics as this evolves.



Nice project!



I have a CB...

Looks really clean. Sub'd just because I'm impressed.



I don't know what 90% of that stuff is, but damn that's impressive looking.



Glad I'm not the only one. Haha



Hi Folks

Here is a link about ALE (Automatic Link Establishment):

Automatic link establishment - Wikipedia, the free encyclopedia

http://hflink.com/

Working on the technical problems are fun.



That looks very cool! I'd love have a setup like that in my Jeep... wouldn't know what to do with it but I could tell folks I got a ARES / MARS / other acronyms setup which would just be extra awesome lol

Is this something you have setup for work? Or more so personal use if there was (example) a natural disaster in your area.
