Need help wiring lights
#1
JK Enthusiast
Thread Starter
Join Date: Mar 2011
Location: Bristol, NH
Posts: 116
Likes: 0
Received 0 Likes
on
0 Posts
Need help wiring lights

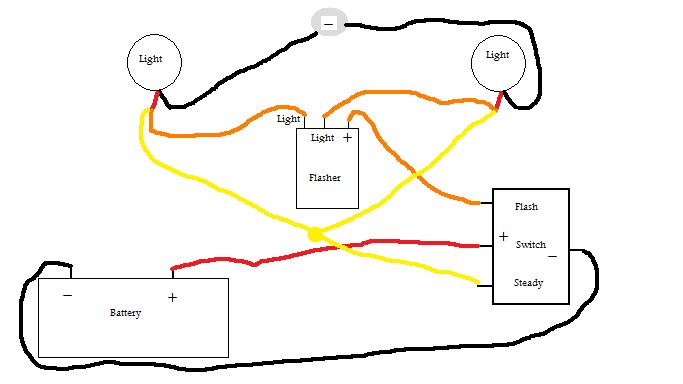

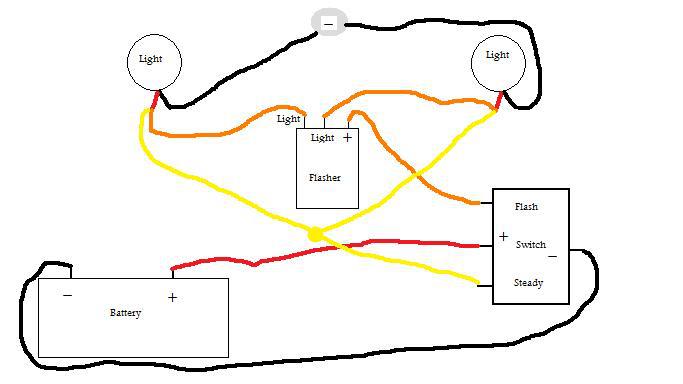

ok so this is kinda hard to explain. i am a firefighter and want to make it so my windshield mount off road lights are also warning lights for when responding to calls. i wired them up like the diagram below shows. i used a simple 12V alternating flasher, and a light up 3 position switch.
position 1 - flashing
position 2 - off
position 3 - steady
when i turn the switch to steady they both light up
when i turn the switch to flash they both light up no flash

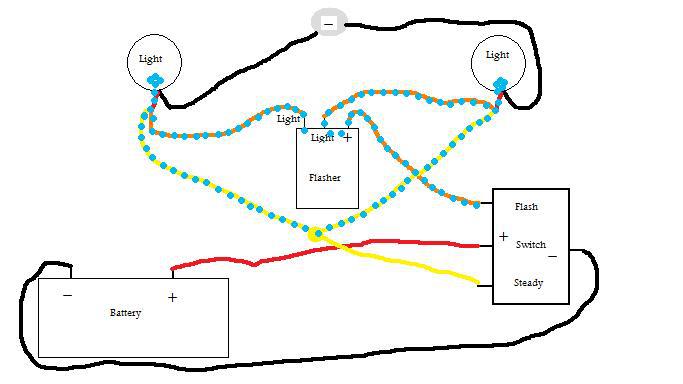

is there a relay or something somehow to mount to prevent it back feeding bypassing the flasher? (the blue dots)
help please
PS. yes the flasher works i have tested it along with the switch
position 1 - flashing
position 2 - off
position 3 - steady
when i turn the switch to steady they both light up
when i turn the switch to flash they both light up no flash
is there a relay or something somehow to mount to prevent it back feeding bypassing the flasher? (the blue dots)
help please
PS. yes the flasher works i have tested it along with the switch
#2
JK Enthusiast
Join Date: Apr 2010
Location: Natick, MA
Posts: 225
Likes: 0
Received 0 Likes
on
0 Posts
from my electrical knowledge, I believe you would have to put in a one way diode in where the steady wiring is. Doing that will prevent power from going back to the relay. Should do the trick. Let us know how that goes!
#3
JK Enthusiast
Thread Starter
Join Date: Mar 2011
Location: Bristol, NH
Posts: 116
Likes: 0
Received 0 Likes
on
0 Posts
#6
JK Junkie
Agrreed that the problem is feed-back. The flasher system is feeding back through the "maintained" wiring. Diode(s) would be the simple fix. You need one for each light. When one flashes ( left ) it feeds power through the extra wires to the other fixture ( right ) making it appear that both fixtures are activated.
#7
JK Enthusiast
Thread Starter
Join Date: Mar 2011
Location: Bristol, NH
Posts: 116
Likes: 0
Received 0 Likes
on
0 Posts
double throw switch
so on another forum i have members telling me that i need a double throw switch i can figure out how it works does any one by chance have a diagram showing how to wire one of these up?
this is why im not a electrician
this is why im not a electrician
Trending Topics
#8
JK Junkie
Well I am. And a SPDT sw will not work. You need a DPST ( double pole single throw ) switch. The switch will have 2 primary terminal. And 2 secondary terminals. Connect 12V to both primary terminals. And connect 1 light to each secondary terminal. This will correct the problem.
