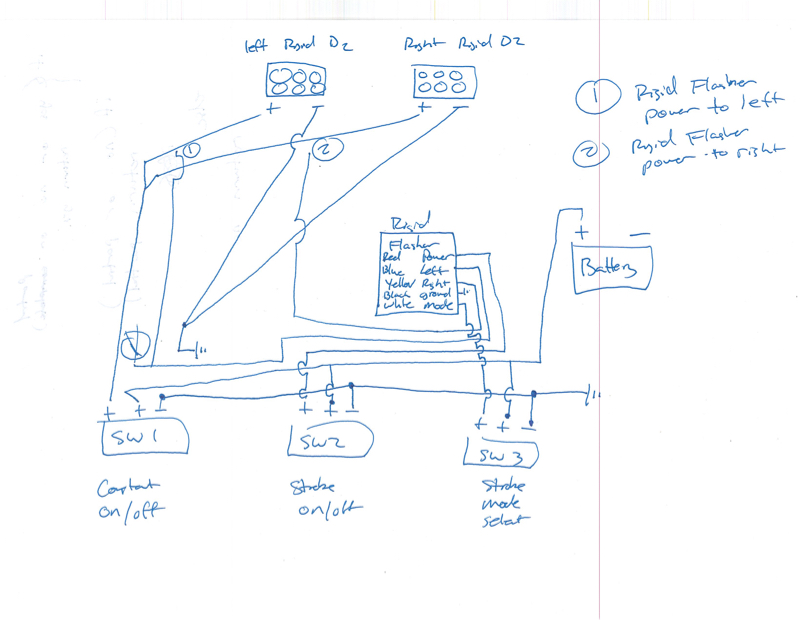

Trying to wire my Rigid D2s to their Flasher Module. I plan on using 3 switches similar to the ones that come with their harness. 1 switch for on and off, 1 switch for strobe on/off and 1 switch for stone mode select. I don't know how to wire at points 1 and 2 in the diagram or even my diagram is correct. Essentially it is wiring up 2 switches to one pair of lights. The blue and yellow from the flasher act as power to the lights. I apreciate any help.
Attached Thumbnails Click image for larger version

Name:	image-1015707710.jpg
Views:	140
Size:	261.1 KB
ID:	654650
Reply
Old Aug 16, 2016 | 11:25 AM
  #2
Canvas's Avatar
Super Moderator
Veteran: Navy

Joined: Mar 2013
Posts: 1,177
Likes: 17
From: Shelby County, TN
Default

I would think sending the power from each switch to the light. Basically you would have three wires going to the positive side of the light. With out actually messing with the lights this is the best I can offer.

If you have not already installed all the components I would say wire it up and connect to a 12V battery and op check it.

R/
Will
Reply
Old Aug 16, 2016 | 11:42 AM
  #3
jchappies's Avatar
JK Freak
Veteran: Air Force

Joined: Jul 2013
Posts: 644
Likes: 5
From: Santee
Default

You need a left and right light switch (you can't tie the lights together or the strobe won't work)
Switch 3 in your diagram needs to be momentary switch.
So you need 4 switches....
Switch 1=Left
Switch 2=Right
Switch 3= strobe module (blue to left light, yellow to right light)
Switch 4= momentary positive (+) to switch modes

and switch 1 and 2 plus 3 can't be on at the same time. (either 1 and 2 or just 3)
Or put in some diodes....

Last edited by jchappies; Aug 16, 2016 at 11:52 AM.
Reply
Old Aug 16, 2016 | 11:48 AM
  #4
14Sport's Avatar
JK Junkie

Joined: Nov 2013
Posts: 3,703
Likes: 8
From: The Dirty South
Default

I would use a 3 way switch for the strobe/off/constant and a momentary to change modes.

Edit: Nvm I just noticed the flasher module needs separate wires for the lights.

Last edited by 14Sport; Aug 16, 2016 at 12:13 PM.
Reply
Old Aug 16, 2016 | 12:01 PM
  #5
jchappies's Avatar
JK Freak
Veteran: Air Force

Joined: Jul 2013
Posts: 644
Likes: 5
From: Santee
Default

option 2
Switch 1 has 2 relays (left and right light)
Switch 2 as you have it but blue and yellow bi-pass the relays to each light
Switch 3 still needs to be momentary

switch 1 and 2 can never be on at the same time or strobe won't work.
Reply
Old Aug 16, 2016 | 12:12 PM
  #6
jchappies's Avatar
JK Freak
Veteran: Air Force

Joined: Jul 2013
Posts: 644
Likes: 5
From: Santee
Default

Originally Posted by 14Sport
I would use a 3 way switch for the strobe/off/constant and a momentary to change modes.
The ON-OFF-ON switch will work too but you still need 2 relays and the module (blue,yellow) will need to bi-pass the relays. This switch will prevent you from having both on at the same time and defeating the strobe purpose.

Each light needs to be it's own circuit.
Reply
Old Aug 16, 2016 | 12:23 PM
  #7
14Sport's Avatar
JK Junkie

Joined: Nov 2013
Posts: 3,703
Likes: 8
From: The Dirty South
Default

I think the way you have it will work as long as you make sure switch 1 is off when using switch 2. If the switches are lighted though they both may illuminate from backfeeding depending on how they are wired internally.
Reply
Old Aug 16, 2016 | 12:27 PM
  #8
matt852's Avatar
Thread Starter
JK Junkie

Joined: Mar 2009
Posts: 2,368
Likes: 0
From: Scottsdale, AZ
Default

Really appreciate the help everyone, it will take me a while to figure out what each of you are proposing but I have a ton of chopped up wire right now so I'll get to tinkering
Reply
Old Aug 16, 2016 | 12:31 PM
  #9
matt852's Avatar
Thread Starter
JK Junkie

Joined: Mar 2009
Posts: 2,368
Likes: 0
From: Scottsdale, AZ
Default

Originally Posted by 14Sport
I think the way you have it will work as long as you make sure switch 1 is off when using switch 2. If the switches are lighted though they both may illuminate from backfeeding depending on how they are wired internally.
would I just use a wire tap from blue and yellow to the power of the individuals lights using my current diagram?
Reply
Old Aug 16, 2016 | 12:34 PM
  #10
14Sport's Avatar
JK Junkie

Joined: Nov 2013
Posts: 3,703
Likes: 8
From: The Dirty South
Default

Actually Matt the way you have it won't work because you are backfeeding both lights from the flasher. You're going to have to separate the constant on feeds as jchappies said or use diodes.
Reply
