CAD files???
JK Freak
Joined: Apr 2012
Posts: 675
Likes: 0
From: Snohomish, WA
Sounds like a typical solidworks issue, it's very user friendly but not as stable as other softwares. I haven't looked at it yet, been too busy to play with it.
JK Newbie
Joined: Dec 2013
Posts: 57
Likes: 0

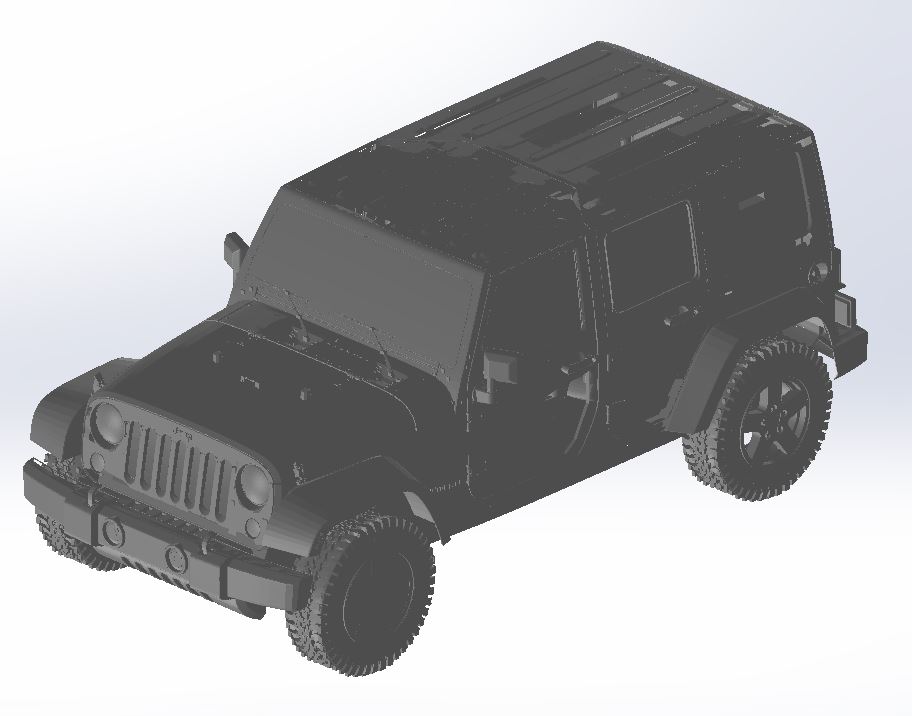

I've opened the files in Autocad and can see the 3D wireframe and can switch to shaded as well. I'm going to try it in Inventor when I get a chance. I don't have Solidworks
JK Enthusiast
Joined: Aug 2013
Posts: 188
Likes: 2
From: Ocala, FL
If you can get it opened in inventor and save a STEP file that might work. I'm not really familiar with working with wire-frames too much so I'm not sure if it can be converted to a solid model very easily.
JK Newbie
Joined: Jul 2016
Posts: 1
Likes: 0
From: Claremore, OK
Super Moderator
Joined: Mar 2008
Posts: 1,981
Likes: 79
From: HB, So Cal
The best free CAD program I've come across (I teach CAD and Solidworks) is Draftsight CAD. It's made by same company as Solidworks.
You can use it on MAC or PC and it reads all DWG files.
http://www.3ds.com/products-services...free-download/
You can use it on MAC or PC and it reads all DWG files.
http://www.3ds.com/products-services...free-download/
