Snapped bolt water pump


Old 06-09-2019, 11:24 AM
  #1
JK Super Freak
Thread Starter

EHarris's Avatar

Join Date: Mar 2008
Location: HB, So Cal
Posts: 1,343
Likes: 0
Received 14 Likes on 14 Posts
Default Snapped bolt water pump

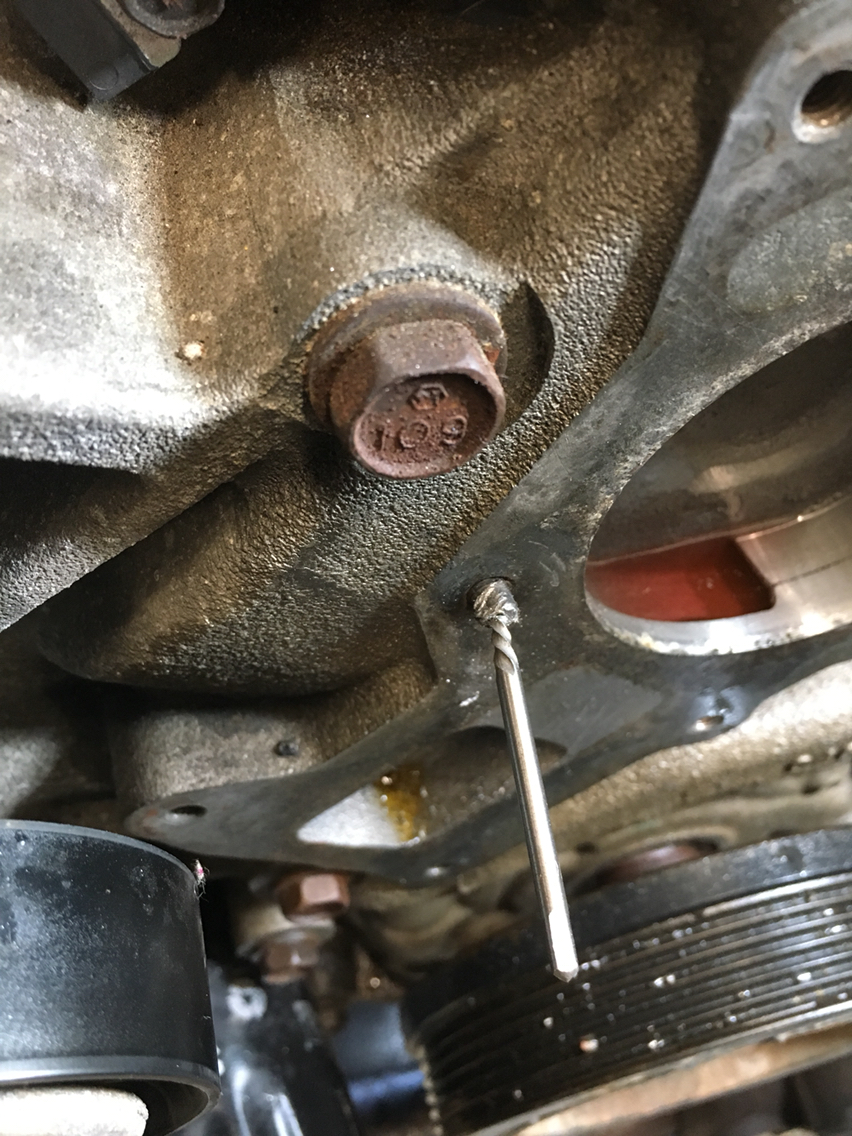

Damn it. Kinda stuck now.
Attached Thumbnails Click image for larger version

Name:	photo0.jpg
Views:	67
Size:	1.00 MB
ID:	677380
EHarris is offline
Old 06-09-2019, 12:54 PM
  #2
JK Junkie

jadmt's Avatar

Join Date: Sep 2012
Location: missoula,mt
Posts: 3,944
Received 24 Likes on 24 Posts
Default

hit it with a small torch and wick some candle wax into the threads and then use a vise grips to turn it out. ez peasy. haven't your been having a tough time with broken bolts lately? use a smaller wrench to tighten things up and when loosen them use a little heat first and turn then out gently.
jadmt is offline
Old 06-09-2019, 01:20 PM
  #3
JK Super Freak
Thread Starter

EHarris's Avatar

Join Date: Mar 2008
Location: HB, So Cal
Posts: 1,343
Likes: 0
Received 14 Likes on 14 Posts
Default

Originally Posted by jadmt
hit it with a small torch and wick some candle wax into the threads and then use a vise grips to turn it out. ez peasy. haven't your been having a tough time with broken bolts lately? use a smaller wrench to tighten things up and when loosen them use a little heat first and turn then out gently.
I'm gonna try the torch in a bit. Got a buddy going to pick one up for me.

No luck with Kroil and vice grips. No luck with using a dremel to make a slot and then use a screw driver.

My first broken bolt. Al the rest came out pretty easy.
EHarris is offline
Old 06-09-2019, 01:25 PM
  #4
JK Junkie

jadmt's Avatar

Join Date: Sep 2012
Location: missoula,mt
Posts: 3,944
Received 24 Likes on 24 Posts
Default

Originally Posted by EHarris View Post
I'm gonna try the torch in a bit. Got a buddy going to pick one up for me.

No luck with Kroil and vice grips. No luck with using a dremel to make a slot and then use a screw driver.

My first broken bolt. Al the rest came out pretty easy.
use the candle wax trick. local exhaust shop turned me on to that and it works.
jadmt is offline
Old 06-09-2019, 02:21 PM
  #5
JK Super Freak
Thread Starter

EHarris's Avatar

Join Date: Mar 2008
Location: HB, So Cal
Posts: 1,343
Likes: 0
Received 14 Likes on 14 Posts
Default

I welded two bolts onto it. Still no go.
Attached Thumbnails Click image for larger version

Name:	photo996.jpg
Views:	61
Size:	826.1 KB
ID:	677381
EHarris is offline
Old 06-09-2019, 04:48 PM
  #6
JK Super Freak
Thread Starter

EHarris's Avatar

Join Date: Mar 2008
Location: HB, So Cal
Posts: 1,343
Likes: 0
Received 14 Likes on 14 Posts
Default

So no luck with the easy out. I've put a torch on it. Nada. Nothing.

I need professional help. Anyone from the so cal area Orange County (currently sitting in Garden Grove) that knows of a shop or a person that comes out to do this type of stuff? This is gonna cost me. Worst part is it's covered under lifetime powertrain and I was just replacing before a bunch of long trips this summer. The dealer did it last 100k ago.
Attached Thumbnails Click image for larger version

Name:	photo838.jpg
Views:	61
Size:	1.01 MB
ID:	677382
EHarris is offline
Old 06-09-2019, 04:57 PM
  #7
JK Junkie

jadmt's Avatar

Join Date: Sep 2012
Location: missoula,mt
Posts: 3,944
Received 24 Likes on 24 Posts
Default

did you try the candle wax before messing it up with the ez out (should be called never outs or difficult outs)?
jadmt is offline
Old 06-09-2019, 05:39 PM
  #8
JK Super Freak
Thread Starter

EHarris's Avatar

Join Date: Mar 2008
Location: HB, So Cal
Posts: 1,343
Likes: 0
Received 14 Likes on 14 Posts
Default

Originally Posted by jadmt
did you try the candle wax before messing it up with the ez out (should be called never outs or difficult outs)?
I didn't try the candle wax only because I watched a YouTube video that tested if that theory worked and it said it didn't. Plus I didn't have a candle. In theory the wax should follow the threads down like penetrating fluid would. I started using Kroil last week on the bolts before I started this job and hit them everyday. I expected one to get stuck or snap but this last one will not budge at all. I'll try the wax in the morning. It's up at my shop at work right now.
EHarris is offline
Old 06-09-2019, 08:56 PM
  #9
JK Super Freak
Thread Starter

EHarris's Avatar

Join Date: Mar 2008
Location: HB, So Cal
Posts: 1,343
Likes: 0
Received 14 Likes on 14 Posts
Default

Ok after a few beers I have some questions about trying to get this done myself.

To drill out this bolt straight what would be the best tool set up? I can run pneumatic tools but they seem like they might spin too fast. Diamond bit or carbide? in a few sizes up to just before the shaft diameter? Use calipers to make sure my last size bit is just before diameter of one of the other screws? Keep drilling it out until it dissolves or breaks out. Blow it all out with air and then re tap?

Mopar 6101451 Hex Head Bolt and Washer, M6x1.00x25.00
EHarris is offline
Old 06-09-2019, 09:12 PM
  #10
JK Super Freak

Mr.T's Avatar

Join Date: Nov 2011
Location: Over the hill
Posts: 1,367
Received 56 Likes on 53 Posts
Lightbulb

Usually mild heat (torch) plus Kroil does the trick. Aluminum has about twice the coefficient of expansion, so heat the Al and heat-sink the steel bolt with a cold pair of vice grips, and try to turn it.

That failing, look up HeliCoil -- Basicially one drills out the bolt, including the threads in the front cover, to the specified size, tap new threads, insert HeliCoil, and it's better than new. Long time ago I even used HeliCoils on all 8 spark plug holes in some aluminum heads while they were off as cheap insurance.

Edit: Regarding the drill bit, obviously don't break it off, get it centered, and don't go deeper than the original hole in the front cover. As to what drill bit type, take a file to the bolt and see how hard it is. If if files well, any good quality bit (not HF) will work. Avoid cobalt and other bits meant for harder metal unless necessary because they are more brittle and tend to break with a hand drill. Make sure it's center punched well before drilling.


Last edited by Mr.T; 06-09-2019 at 09:31 PM. Reason: Added more...
