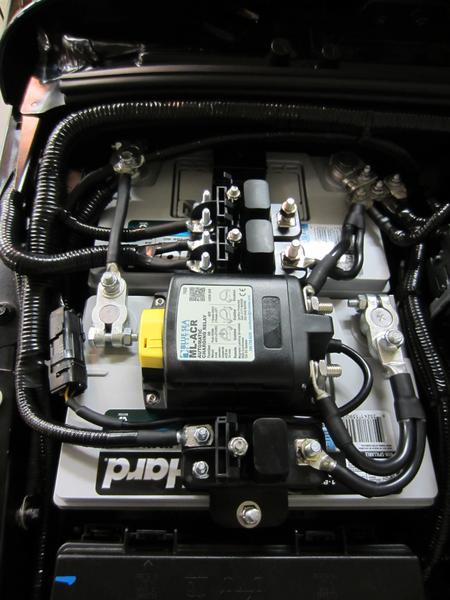

Over the long Presidents weekend I finally completed my custom dual battery tray install. The wiring took a fairly long time, since I had to route the wires in a manner that would still let me take it apart when batteries eventually have to be replaced. The Jeep started on the first try
and the Automatic Charging Relay seems to be working as advertised. I really like the quallity of the Blue Sea System relay.
Here is a couple of pictures:
<img src="https://www.jk-forum.com/forums/attachment.php?attachmentid=425473"/> <img src="https://www.jk-forum.com/forums/attachment.php?attachmentid=425474"/> <img src="https://www.jk-forum.com/forums/attachment.php?attachmentid=425472"/>

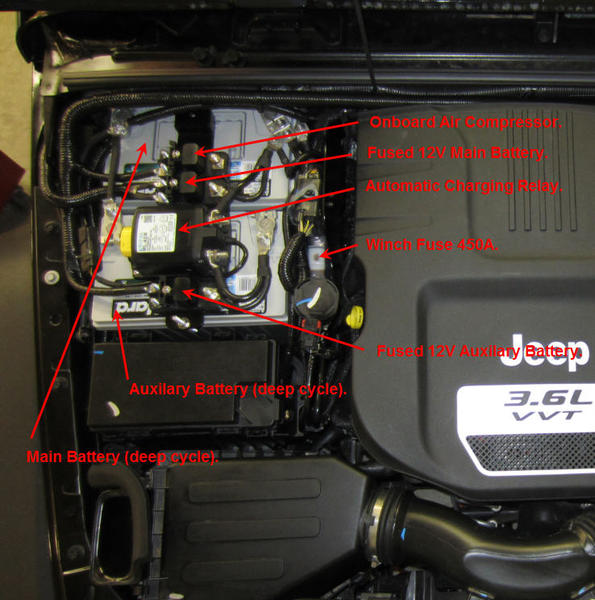

If you look at the top/left corner of the 2nd picture, you can see the wiring coming in from the passenger cabin. This wiring is for the ARB dual Aircompressor mounted under the passenger seat.

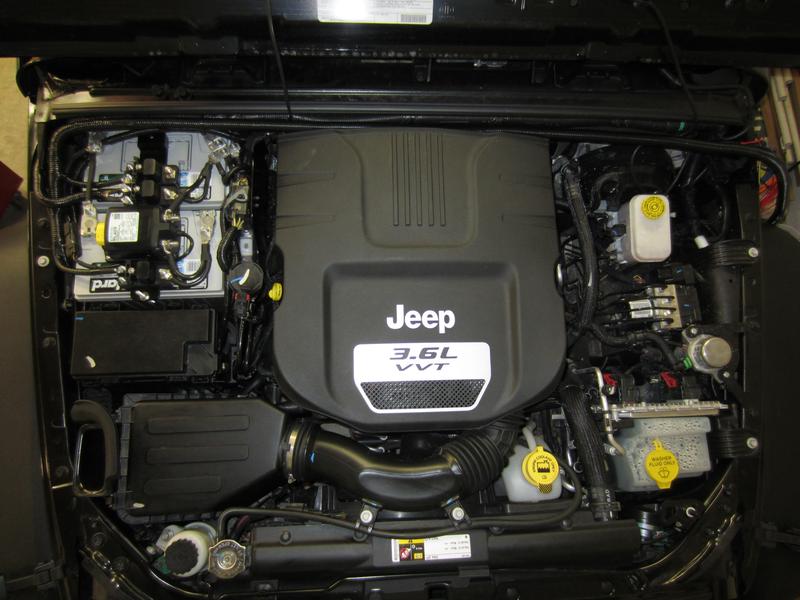

The last picture shows what the different fuse holders are for. I am runing both 12V Main & 12V Auxilary power over to the drivers side of the engine compartment where I am going to install two Bussman fuse/relay boxes to supply all the extra accessories for the Jeep (Front Dual Beam driving lights, ARB Fridge/Freezer, Rear camp flood lights, 12V external outlet under rear bumper, Rock Lights, CB/HAM radio, On-demand water pump, charger for 7" tablet and any future expansion. These 2 boxes will be placed in the empty space on the driver side of the brake booster.
and the Automatic Charging Relay seems to be working as advertised. I really like the quallity of the Blue Sea System relay.Here is a couple of pictures:
<img src="https://www.jk-forum.com/forums/attachment.php?attachmentid=425473"/> <img src="https://www.jk-forum.com/forums/attachment.php?attachmentid=425474"/> <img src="https://www.jk-forum.com/forums/attachment.php?attachmentid=425472"/>
If you look at the top/left corner of the 2nd picture, you can see the wiring coming in from the passenger cabin. This wiring is for the ARB dual Aircompressor mounted under the passenger seat.
The last picture shows what the different fuse holders are for. I am runing both 12V Main & 12V Auxilary power over to the drivers side of the engine compartment where I am going to install two Bussman fuse/relay boxes to supply all the extra accessories for the Jeep (Front Dual Beam driving lights, ARB Fridge/Freezer, Rear camp flood lights, 12V external outlet under rear bumper, Rock Lights, CB/HAM radio, On-demand water pump, charger for 7" tablet and any future expansion. These 2 boxes will be placed in the empty space on the driver side of the brake booster.
